FRONT WHEEL (VS700GLEFH/GLEPH)

VS700GLEF INTRUDER 1987 (H) USA (E03)

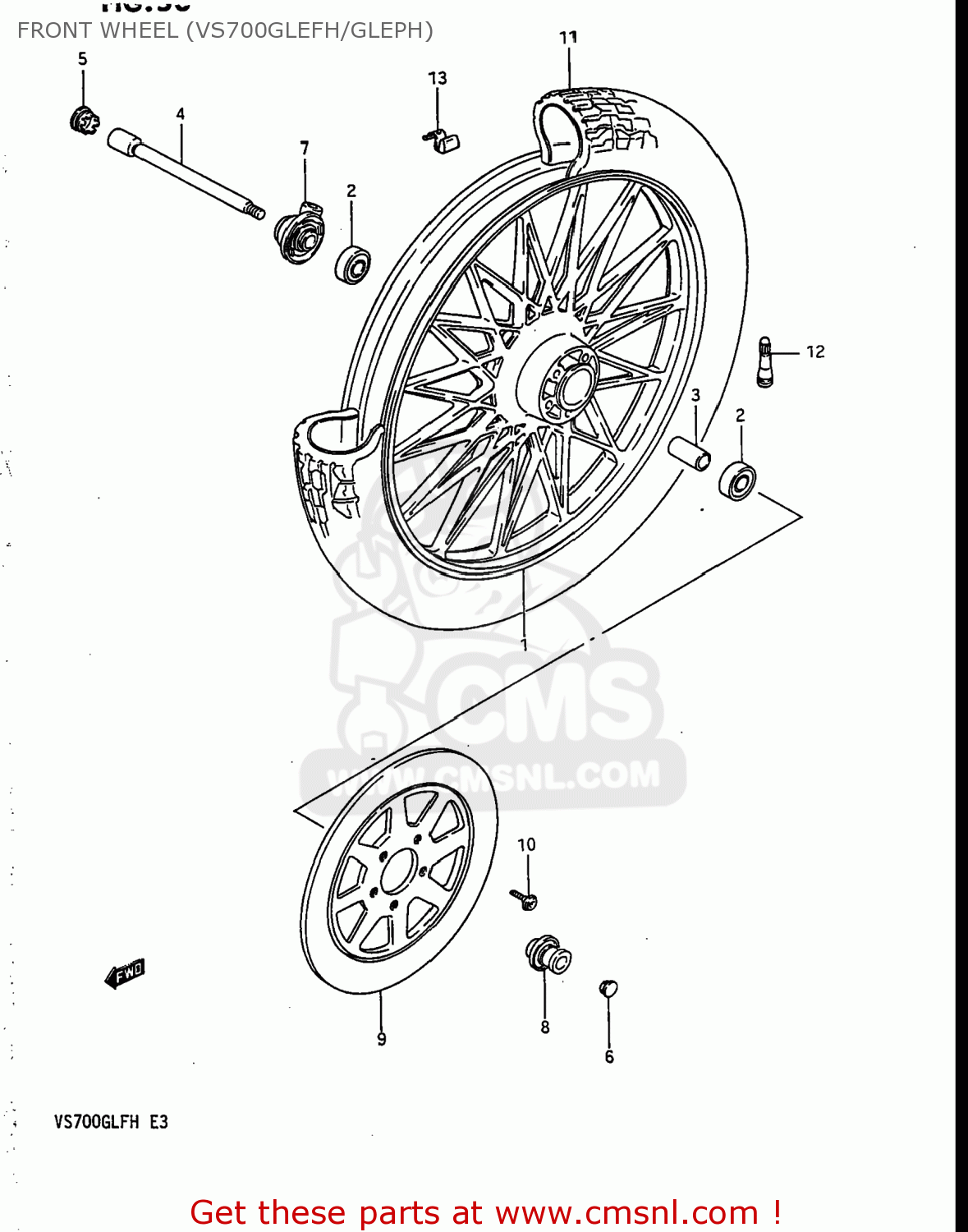

Front wheel (vs700glefh/gleph) diagram VS700GLEF INTRUDER 1987 (H) USA (E03)

FRONT WHEEL (VS700GLEFH/GLEPH) VS700GLEF INTRUDER 1987 (H) USA (E03)

FRONT WHEEL (VS700GLEFH/GLEPH) VS700GLEF INTRUDER 1987 (H) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5411138A1023W
ref: 1

CASTING WHEEL,FRONT 2.15-

€ 650.00

2

0812363027
ref: 2

BEARING

€ 19.00

3

0918015004
ref: 3

SPACER(15.3X21.7X65)

€ 9.00

4

5471138A10
ref: 4

AXLE,FRONT

€ 37.50

5

5479238B00
ref: 5

CAP,FR AXLE

€ 97.00

6

5479138B00
ref: 6
54791-38B01

CAP,FRONT AXLE

€ 4.50

7

5460049260
ref: 7

BOX ASSY,SPEEDOMETER GEAR

€ 219.00

8

5475038A20
ref: 8

SPACER COMP,FRONT AXLE

€ 12.50

9

5921138A10
ref: 9

DISC,FRONT BRAKE

€ 320.50

10

0910608049
ref: 10

BOLT(8X25.5)

€ 4.00

11

5510038A50
ref: 11

TIRE,FRONT

€ 109.00

12

4313075150
ref: 12
43130-78030

VALVE,TIRE

€ 14.50

13-1

5541100A00
ref: 13-1

BALANCER,WHEEL (10G)

€ 6.50

13-2

5541200A00
ref: 13-2
55412-17G00

BALANCER,WHEEL

€ 7.00

13-3

5541300A00
ref: 13-3
55413-00A01

BALANCER,WHEEL

€ 4.00
