FUEL COCK

VS700GLEF INTRUDER 1987 (H) USA (E03)

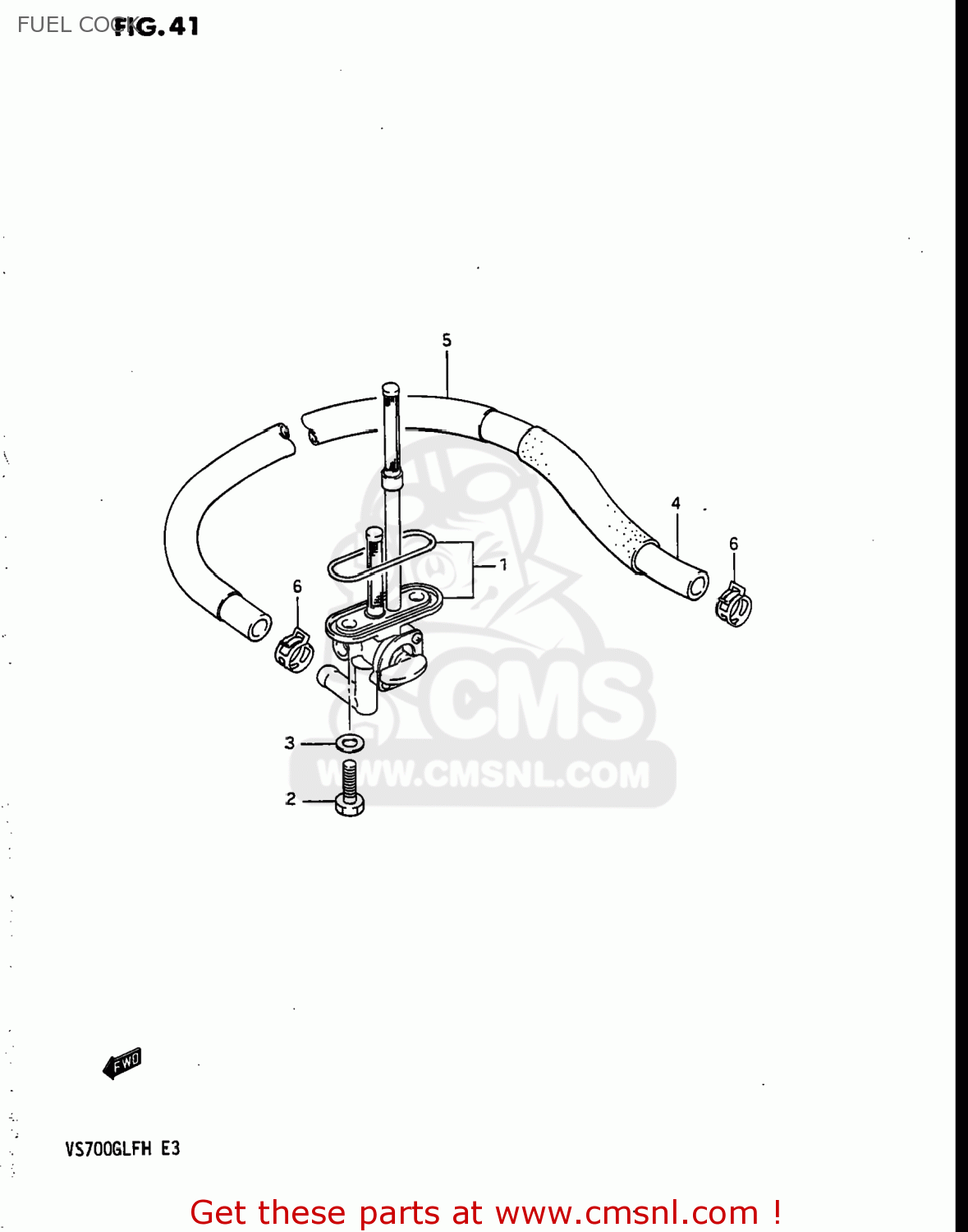

Fuel cock diagram VS700GLEF INTRUDER 1987 (H) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4430038A70
ref: 1-1
44300-38A72

COCK ASSEMBLY,FUEL

€ 174.00

1-2

4430038A71
ref: 1-2
44300-38A72

COCK ASSEMBLY,FUEL

€ 174.00

0912806057
ref: 2

BOLT(6X20)

€ 2.00

0916806010
ref: 3
09168-06023

GASKET

€ 2.00

4432038A02
ref: 4
44320-38AR0

HOSE,FUEL PUMP & COCK

€ 11.00

4431138A00
ref: 5
44311-38A01

TUBE,FUEL HOSE

€ 13.50

0940112406
ref: 6
09401-11415

CLAMP

€ 2.50
