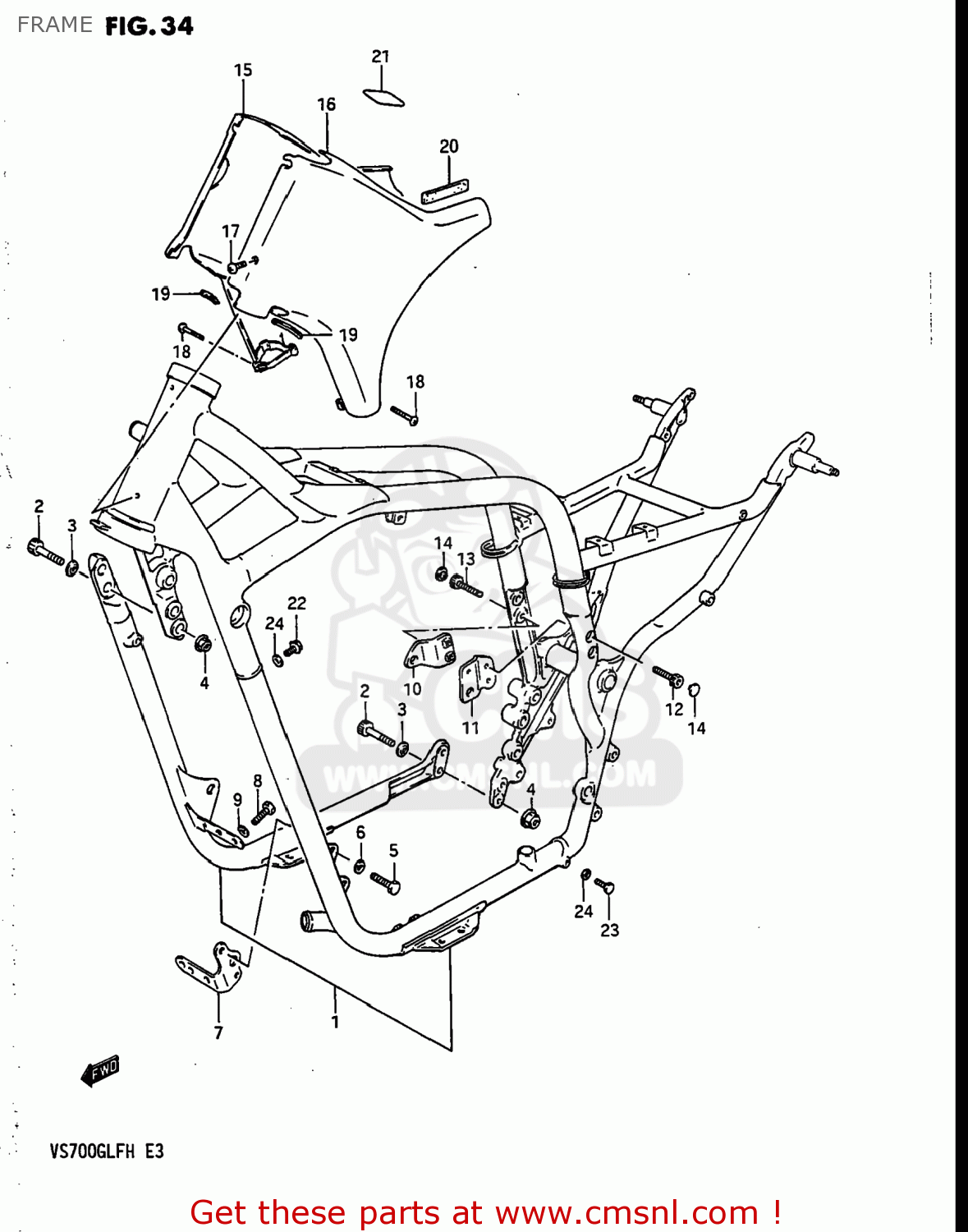

FRAME

ref

part #

description

quantity

1-1

411003881024D
ref: 1-1
41100-38811-24D

FRAME

€ 425.50

1-2

4110038810019
ref: 1-2
41100-38811-019

FRAME

€ 425.50

1-3

411003884024D
ref: 1-3

FRAME

€ 0.00

1-3

411003884024D
ref: 1-3

FRAME

€ 0.00

1-4

4110038840019
ref: 1-4

FRAME

€ 0.00

1-4

4110038840019
ref: 1-4

FRAME

€ 0.00

1-5

411003884024V
ref: 1-5

FRAME

€ 0.00

1-6

411003884033D
ref: 1-6

FRAME

€ 0.00

2

0910610019
ref: 2

BOLT(10X33)

€ 4.00

3

0916410005
ref: 3
09164-10010

WASHER

€ 6.50

4

0831931105
ref: 4
08319-3110A

NUT 10MM

€ 3.00

5

0151708205
ref: 5
01550-0820A

BOLT

€ 3.00

6

0832121084
ref: 6
08321-0108A

WASHER,LOCK,8.

€ 2.50

7-1

4192038A0024D
ref: 7-1

PLATE,ENGINE MOUNTING

€ 11.00

7-2

4192038A00019
ref: 7-2

PLATE,ENGINE MOUNT NO.1,L

€ 11.00

7-3

4192038A0024V
ref: 7-3

PLATE,ENGINE MOUNTING

€ 11.00

7-4

4192038A0033D
ref: 7-4

PLATE,ENGINE MOUNTING

€ 11.00

8

0110708165
ref: 8
01500-0816B

BOLT

€ 2.00

9

0832121084
ref: 9
08321-0108A

WASHER,LOCK,8.

€ 2.50

10-1

4195038A0024D
ref: 10-1

PLATE,ENGINE MOUNTING

€ 0.00

10-2

4195038A00019
ref: 10-2

PLATE,ENGINE MOUNTING

€ 7.50

10-3

4195038A1024D
ref: 10-3

PLATE,ENGINE MOUNTING

€ 0.00

10-3

4195038A1024D
ref: 10-3

PLATE,ENGINE MOUNTING

€ 0.00

10-4

4195038A10019
ref: 10-4
41950-38A11-33J

PLATE,ENGINE MOUNTING

€ 32.50

10-4

4195038A10019
ref: 10-4
41950-38A11-33J

PLATE,ENGINE MOUNTING

€ 32.50

10-5

4195038A1024V
ref: 10-5
41950-38A11-33J

PLATE,ENGINE MOUNTING

€ 32.50

10-6

4195038A1033D
ref: 10-6
41950-38A11-33J

PLATE,ENGINE MOUNTING

€ 32.50

11-1

4196038A0024D
ref: 11-1

PLATE,ENGINE MOUNTING

€ 0.00

11-2

4196038A00019
ref: 11-2

PLATE,ENGINE MOUNTING

€ 8.00

11-3

4196038A1024D
ref: 11-3

PLATE,ENGINE MOUNTING

€ 0.00

11-3

4196038A1024D
ref: 11-3

PLATE,ENGINE MOUNTING

€ 0.00

11-4

4196038A10019
ref: 11-4

PLATE,ENGINE MOUNT NO.3,L

€ 26.50

11-4

4196038A10019
ref: 11-4

PLATE,ENGINE MOUNT NO.3,L

€ 26.50

11-5

4196038A1024V
ref: 11-5
41960-38A10-019

PLATE,ENGINE MOUNTING

€ 26.50

11-6

4196038A1033D
ref: 11-6
41960-38A10-019

PLATE,ENGINE MOUNTING

€ 26.50

12

0910608070
ref: 12

BOLT(8X30)

€ 5.50

13

0910608063
ref: 13
07130-0830A

BOLT 8X30

€ 3.00

14

0925006004
ref: 14

CAP(OD:14.5)

€ 1.50

15-1

4735038A0024D
ref: 15-1
47350-38A01-13L

COVER,FRAME HEAD,RIGHT

€ 269.00

15-2

4735038A00019
ref: 15-2
47350-38A01-13L

COVER,FRAME HEAD,RIGHT

€ 269.00

15-3

4735038A0013Z
ref: 15-3
47350-38A01-13L

COVER,FRAME HEAD,RIGHT

€ 269.00

15-4

4735038A0024V
ref: 15-4
47350-38A01-13L

COVER,FRAME HEAD,RIGHT

€ 269.00

15-5

4735038A0033D
ref: 15-5
47350-38A01-13L

COVER,FRAME HEAD,RIGHT

€ 269.00

16-1

4736038A0024D
ref: 16-1
47360-38A01-13L

COVER,FRAME HEAD,LEFT

€ 267.00

16-2

4736038A00019
ref: 16-2
47360-38A01-13L

COVER,FRAME HEAD,LEFT

€ 267.00

16-3

4736038A0013Z
ref: 16-3
47360-38A01-13L

COVER,FRAME HEAD,LEFT

€ 267.00

16-4

4736038A0024V
ref: 16-4
47360-38A01-24V

COVER,FRAME HEAD,LEFT

€ 267.00

16-5

4736038A0033D
ref: 16-5
47360-38A01-13L

COVER,FRAME HEAD,LEFT

€ 267.00

17

0214205104
ref: 17
02142-0510B

SCREW 5X10

€ 2.50

18

0211204254
ref: 18
02112-0425B

SCREW

€ 2.00

19

6824138A10
ref: 19
68241-04X50-300

MOLDING,FUEL TANK

€ 6.00

20

3365238A10
ref: 20
33652-07D00

PROTECTOR(20X90)X2

€ 4.50

21

4735838A00
ref: 21

TAPE,FRAME HEAD COVER

€ 7.00

22

0936006015
ref: 22
09360-06015-XC0

UNION

€ 3.00

23

0151706105
ref: 23
01550-0610A

BOLT

€ 2.50

24

0916806004
ref: 24

GASKET(6.2X11X1).2 (NAS)

€ 1.50
