STEERING STEM (MODEL G)

VS700GLF INTRUDER 1987 (H) USA (E03)

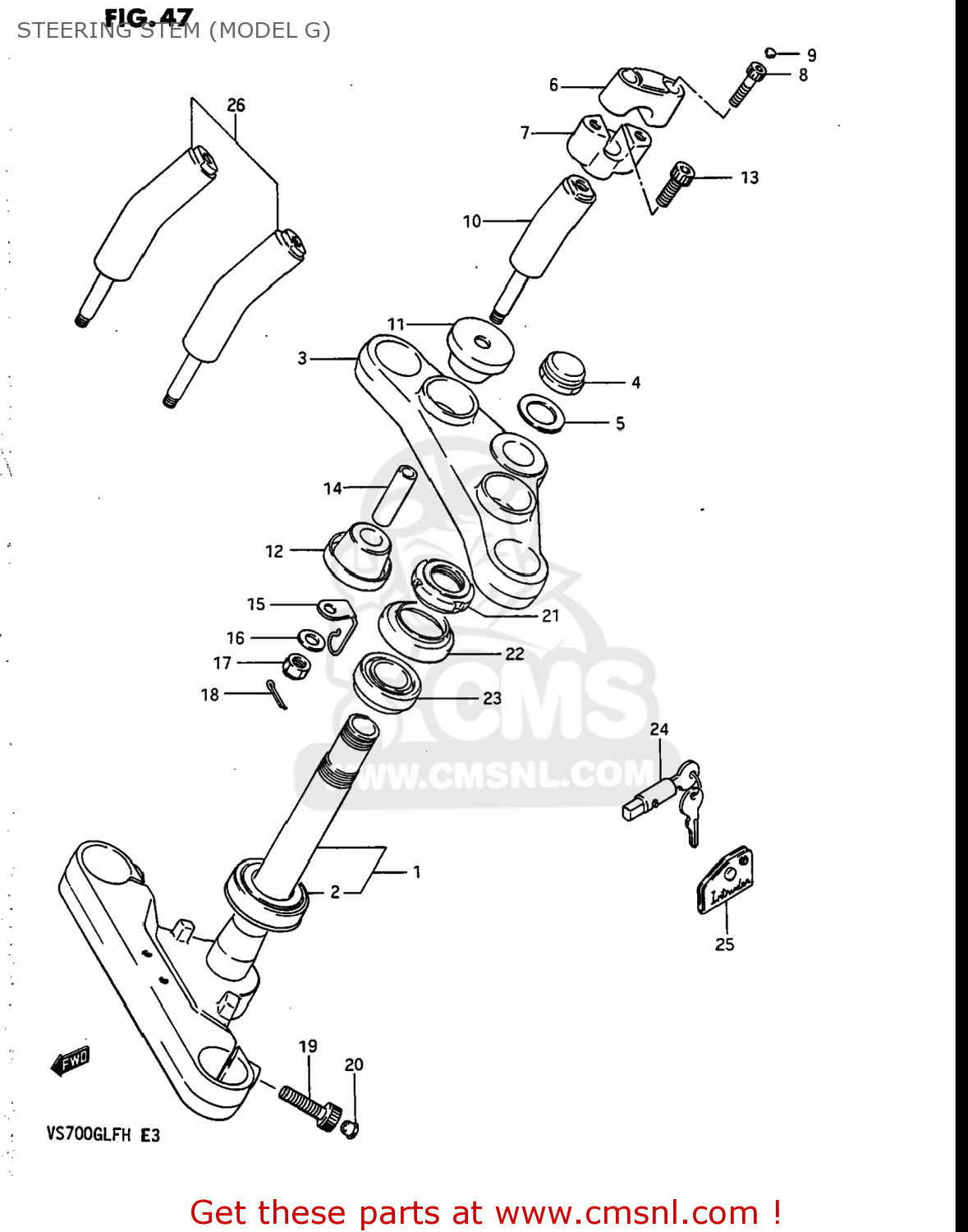

Steering stem (model g) diagram VS700GLF INTRUDER 1987 (H) USA (E03)

STEERING STEM (MODEL G) VS700GLF INTRUDER 1987 (H) USA (E03)
STEERING STEM (MODEL G) VS700GLF INTRUDER 1987 (H) USA (E03)
STEERING STEM (MODEL G) VS700GLF INTRUDER 1987 (H) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
5141038A00
ref: 1
51410-38A21
STEM,STEERING
€ 706.00
2
0926530005
ref: 2
09265-30009
BEARING
0926530005
€ 49.50
3
5131138A00
ref: 3
51311-38A01
HEAD,STEERING STEM
€ 222.00
4
5135338A00
ref: 4
51353-24B00
NUT,STEM HEAD
€ 21.50
5
5135438A00
ref: 5
51356-24B01
WASHER
€ 3.00
6
5621138A00
ref: 6
56211-38A01
HOLDER,HANDLEBAR
€ 45.00
7
5622138A00
ref: 7
56221-38A01
HOLDER,HANDLEBAR
€ 65.00
8
0711008305
ref: 8
07130-0830A
BOLT, REAR (8X30)
0711008305
€ 3.00
9
0925006009
ref: 9
CAP(OD:14.5)
0925006009
€ 3.50
10-1
5623138A00
ref: 10-1
STAY,HANDLE
5623138A00
€ 46.00
10-2
5623138A10
ref: 10-2
STAY,HANDLE
5623138A10
€ 19.50
11
5624038A00
ref: 11
56240-38A01
CUSHION
€ 35.50
12
5624015500
ref: 12
CUSHION,LWR
5624015500
€ 26.00
13
0711010258
ref: 13
07130-10257
BOLT
€ 3.00
14
0918010065
ref: 14
SPACER(10.2X14X46)
0918010065
€ 4.50
15
3493838A11
ref: 15
CLAMP,SPEEDOMETER CABLE
3493838A11
€ 23.50
16
0832221105
ref: 16
08322-0110A
WASHER 10MM
€ 2.50
17
0915910027
ref: 17
NUT
0915910027
€ 3.00
18
0411120208
ref: 18
04111-2020A
PIN 20X20
0411120208
€ 1.50
19
5135238A00
ref: 19
07130-10307
BOLT,STEERING STEM HEAD
€ 4.50
20
0925008014
ref: 20
CAP(OD:12)
0925008014
€ 3.50
21
5163128000
ref: 21
NUT,STEERING STEM(25X44X10)
5163128000
€ 12.50
22
5164349001
ref: 22
51643-49002
DUST SEAL,STEERING,UPPER
5164349001
€ 7.50
23
0926525008
ref: 23
09265-25019
TAPER,ROLLER BEARING
0926525008
€ 48.50
24
5190022662
ref: 24
LOCK ASSEMBLY,STEERING (NEI
5190022662
€ 168.50
25
5192038A00
ref: 25
CASE,STEERING KEY
5192038A00
€ 10.50
26
5610038820
ref: 26
STAY SET,HANDLE
€ 123.50
26
5610038820
ref: 26
STAY SET,HANDLE
€ 123.50
