STARTING MOTOR
VS700GLF INTRUDER 1987 (H) USA (E03)

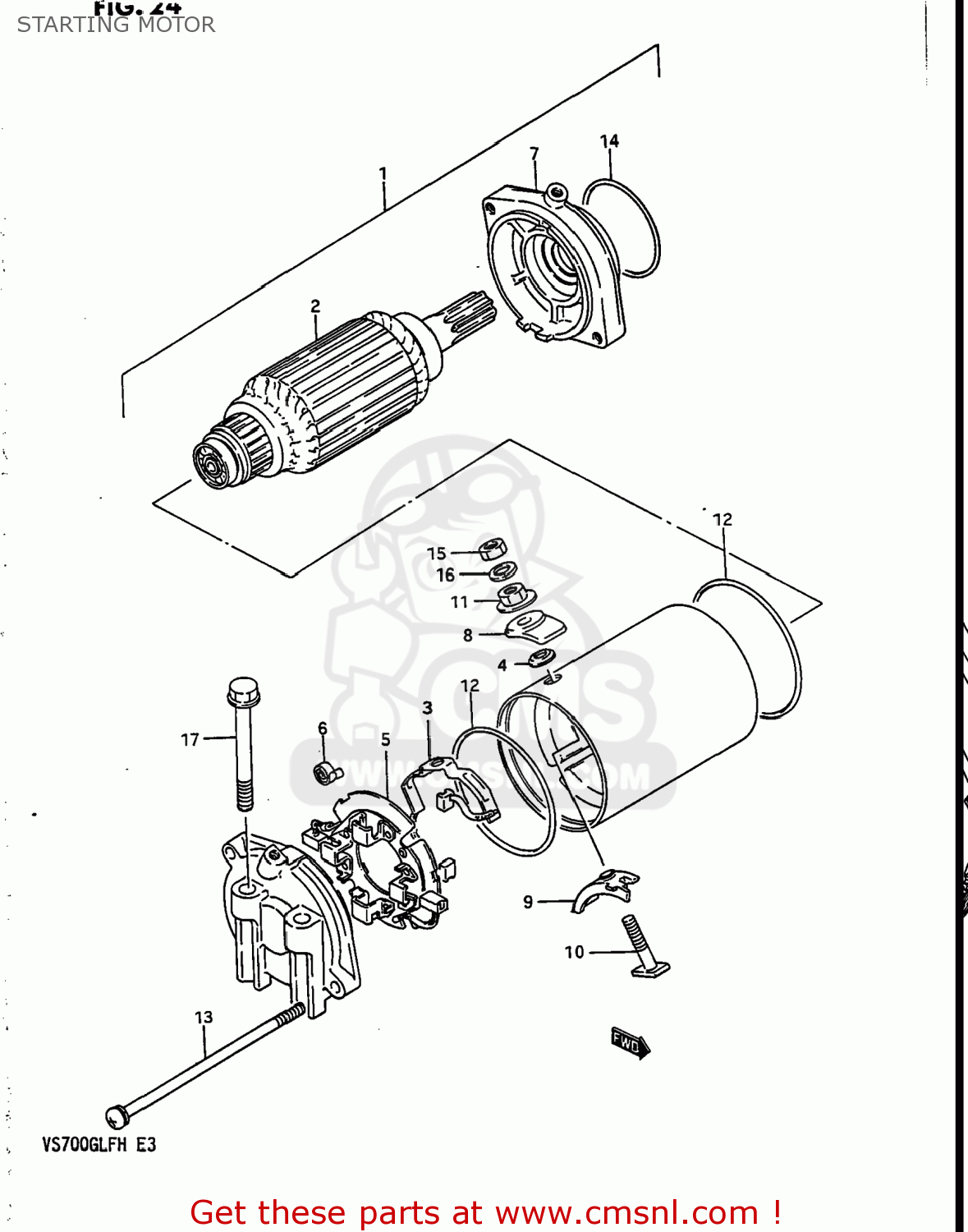

Starting motor diagram VS700GLF INTRUDER 1987 (H) USA (E03)
STARTING MOTOR VS700GLF INTRUDER 1987 (H) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3110038A00
ref: 1-1
31100-45C01
MOTOR ASSEMBLY,STARTING
€ 472.00
1-2
3110038A10
ref: 1-2
31100-45C01
MOTOR ASSEMBLY,STARTING
€ 472.00
2
3131038A00
ref: 2
31310-24B01-H17
ARMATURE
€ 173.00
3-1
3113138A00
ref: 3-1
31131-48B00
TERMINAL SET,BRUSH
€ 35.00
3-2
3113148B00
ref: 3-2
TERMINAL SET,BRUSH
€ 35.00
4-1
3114338300
ref: 4-1
O RING
€ 3.50
4-2
3114348B00
ref: 4-2
GASKET (NAS)
€ 6.50
5
3113238A00
ref: 5
31132-48B00
HOLDER SET,BRUSH (-)
€ 51.00
6
3113565010
ref: 6
SPRING
€ 3.00
7
3115038A00
ref: 7
BRACKET SET
€ 79.50
8-1
3117238A10
ref: 8-1
BUSHING
€ 0.00
8-2
3117248B10
ref: 8-2
BUSHING
€ 3.00
9-1
3117238A20
ref: 9-1
BUSHING
€ 7.00
9-2
3117248B20
ref: 9-2
BUSHING
€ 8.50
10-1
3113038A00
ref: 10-1
31281-24B10
TERMINAL SET,BRUSH
€ 6.00
10-2
3113048B00
ref: 10-2
BOLT
€ 4.50
11-1
0831022067
ref: 11-1
08310-00067
NUT 6MM
€ 2.50
11-2
3114548B00
ref: 11-2
NUT
€ 1.50
12
3126444110
ref: 12
O RING
€ 8.00
13
3128138A00
ref: 13
31281-24B10
BOLT
€ 5.00
14
3115638A00
ref: 14
O RING
€ 8.00
15
0831011066
ref: 15
08310-0006A
NUT
€ 2.00
16
0832121066
ref: 16
08321-0106A
WASHER,LOCK
€ 2.00
17
0154706607
ref: 17
BOLT
€ 2.50
