HEADLAMP
VS700GLF INTRUDER 1987 (H) USA (E03)

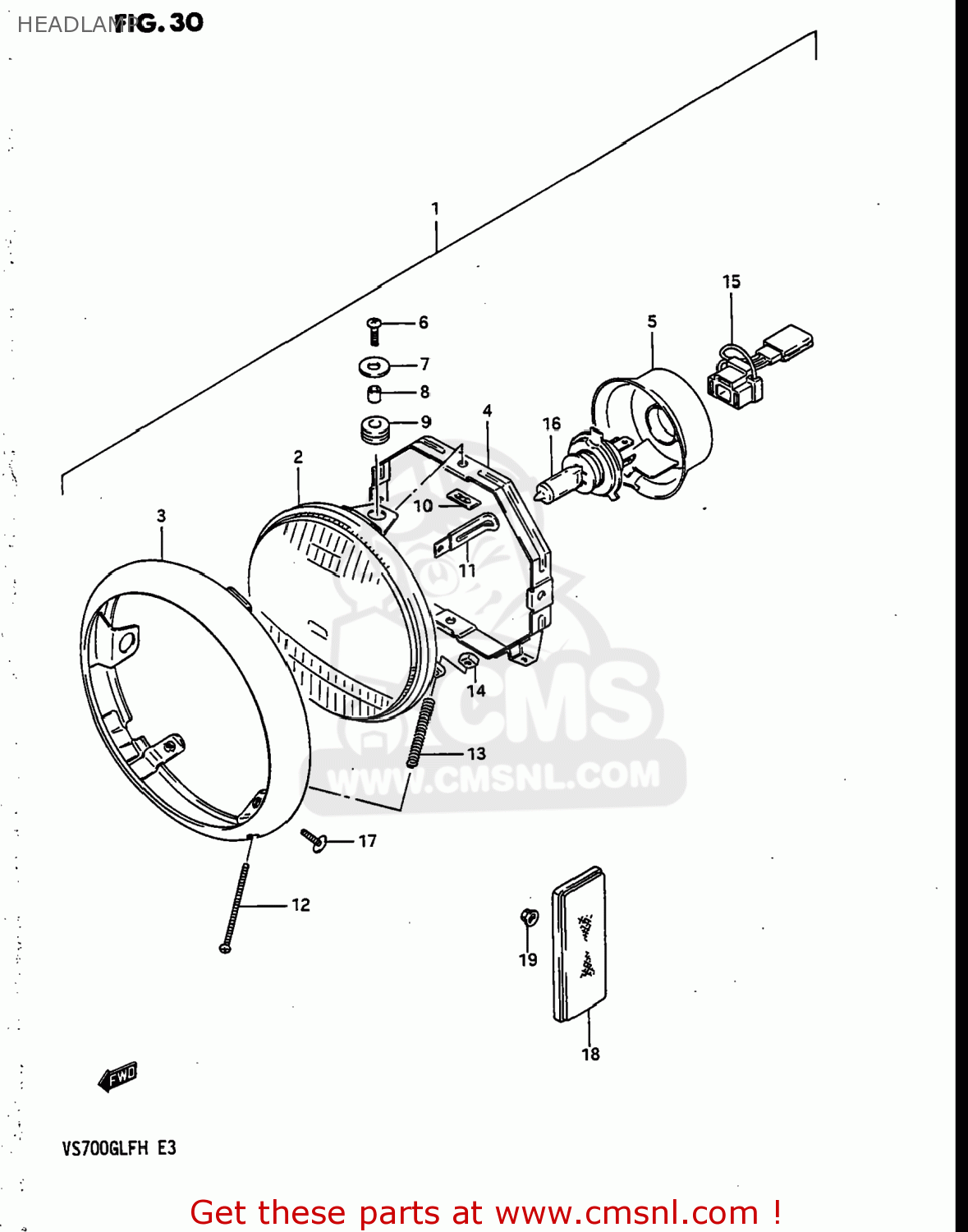

Headlamp diagram VS700GLF INTRUDER 1987 (H) USA (E03)
HEADLAMP VS700GLF INTRUDER 1987 (H) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3510038A30999
ref: 1
35100-38A61-999
HEADLAMP ASSY
€ 236.00
2
3512138A30
ref: 2
UNIT,LAMP
€ 106.00
3
3511138A00
ref: 3
RIM
€ 27.00
4
3513038A00
ref: 4
RING,MOUNTING
€ 15.00
5
3517338A00
ref: 5
COVER,SOCKET
€ 12.50
6
0912505102
ref: 6
SCREW(5X14)
€ 2.50
7
3513845230
ref: 7
09160-05045
WASHER
€ 2.00
8
3513345230
ref: 8
SPACER
€ 2.00
9
3513945230
ref: 9
CUSHION
€ 1.50
10
3515548510
ref: 10
NUT
€ 2.00
11
0940405401
ref: 11
09404-06429
CLAMP
€ 2.50
12
3515149430
ref: 12
09125-04020
SCREW,HEADLAMP ADJUST
€ 3.00
13
3515449430
ref: 13
35154-31300
SPRING,HEADLAMP ADJUST
€ 2.00
14
3513545600
ref: 14
NUT
€ 3.00
15
3685338A00
ref: 15
SOCKET
€ 10.00
16
0947112060
ref: 16
BULB(12V60/55W,H4)
€ 8.00
17
0214205128
ref: 17
02142-05127
SCREW
€ 1.50
18
3595043431
ref: 18
REFLEX REFLECTOR,FR SIDE
€ 12.00
19
0831616056
ref: 19
08316-1005A
NUT
€ 2.50
