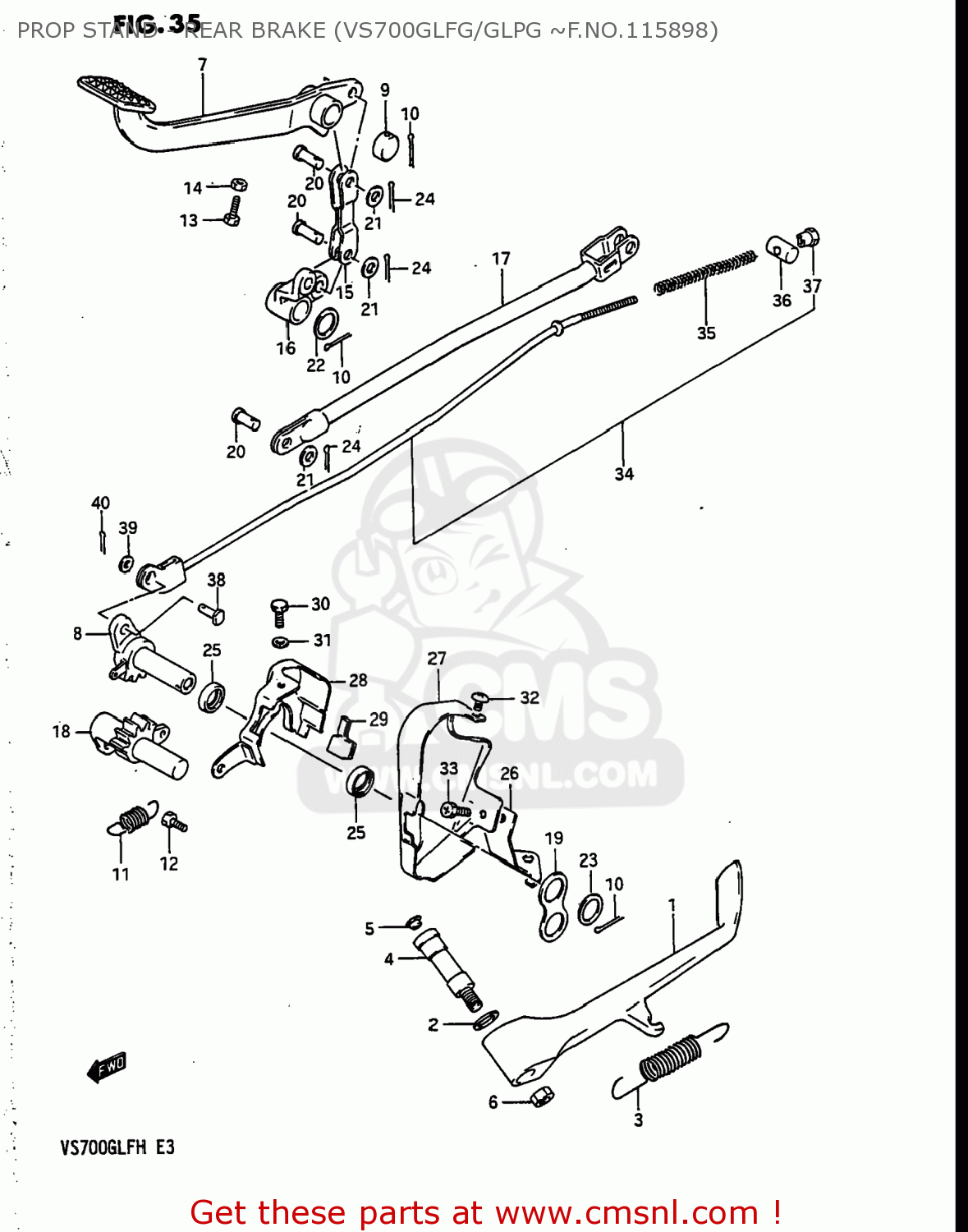

PROP STAND - REAR BRAKE (VS700GLFG/GLPG ~F.NO.115898) - VS700GLF INTRUDER 1987 (H) USA (E03)

ref

part #

description

quantity

1-1

4231038A00
ref: 1-1

STAND,PROP

€ 67.50

1-2

4231038A90
ref: 1-2

ENGRAVED SIDE STAND VS

€ 39.00

2

0822115245
ref: 2
09181-15158

THRUST WASHER

€ 2.50

3

0944315026
ref: 3
09443-15026-XC0

SPRING

€ 5.50

4

4234138A00
ref: 4
42341-38B01

BOLT,PROP STAND

€ 9.00

5

4357534500
ref: 5

CAP

€ 1.50

6

0831022108
ref: 6
08310-00107

NUT

€ 2.50

7

4310038A00
ref: 7

PEDAL ASSEMBLY,BRAKE

€ 70.00

8

4312038A00
ref: 8

ARM COMP,BRAKE ROD

€ 43.50

9

4313507A00
ref: 9
43135-07A02

CAP,BRAKE PEDAL

€ 7.00

10

0411130308
ref: 10
04111-3030A

COTTER PIN

€ 1.50

11

0944313018
ref: 11

SPRING

€ 4.00

12

4325638A00
ref: 12

ARM,BRAKE PEDAL LINK

€ 2.00

13

0110706208
ref: 13
01500-06207

BOLT

€ 2.00

14

0831011068
ref: 14
08310-00067

NUT

€ 2.50

15

4323038A00
ref: 15
43230-38A02

LINK COMP,BRAKE ROD NO

€ 18.50

16

4326038A00
ref: 16

ARM,BRAKE PEDAL LINK

€ 0.00

17

4327038A00
ref: 17

LINK COMP,BRAKE NO.2

€ 19.00

18

4328038A00
ref: 18

ARM COMP,BRAKE PEDAL,LEFT

€ 49.00

19

4328538A00
ref: 19

PLATE,BRAKE PEDAL ARM

€ 2.00

20

0920008055
ref: 20

PIN

€ 4.00

21

0832211088
ref: 21
08322-01087

WASHER

€ 2.00

22

0916016015
ref: 22
09160-16043

WASHER (16.5X42X2.6)

€ 2.00

23

0916017036
ref: 23

WASHER (17.2X30X1.6)

€ 1.50

24

0411120158
ref: 24
04111-2015A

PIN

€ 1.50

25

0928417002
ref: 25

SEAL

€ 2.50

26

4329038A00
ref: 26

BRACKET COMP,BRAKE ROD AR

€ 3.50

27

4329538A00
ref: 27

COVER,BRAKE ROD ARM

€ 15.50

28

4325038A00
ref: 28

COVER COMP,BRAKE ROD ARM

€ 9.00

29

4325538A00
ref: 29

GROMMET,BRAKE COVER

€ 3.50

30

0110706108
ref: 30
01500-06107

BOLT

€ 2.00

31

0832121067
ref: 31
08321-01067

WASHER,LOCK

€ 2.50

32

0154706107
ref: 32

BOLT

€ 1.50

33

0912806004
ref: 33
09128-06044

SCREW(6X10)

€ 1.50

33

0912806004
ref: 33
09128-06044

SCREW(6X10)

€ 1.50

33

0912806004
ref: 33
09128-06044

SCREW(6X10)

€ 1.50

34

4330038A01
ref: 34

ROD ASSEMBLY,REAR BRAKE

€ 31.50

35

0944009004
ref: 35

SPRING

€ 2.00

36

0920913005
ref: 36
09209-13018

PIN

€ 3.50

37

0915006009
ref: 37
09150-06010

NUT (6MM)

€ 3.50

38

0920008056
ref: 38

PIN

€ 2.00

39

0832211088
ref: 39
08322-01087

WASHER

€ 2.00

40

0411120208
ref: 40
04111-2020A

PIN 20X20

€ 1.50

40

0411120208
ref: 40
04111-2020A

PIN 20X20

€ 1.50

40

0411120208
ref: 40
04111-2020A

PIN 20X20

€ 1.50

PROP STAND - REAR BRAKE (VS700GLFG/GLPG ~F.NO.115898)
