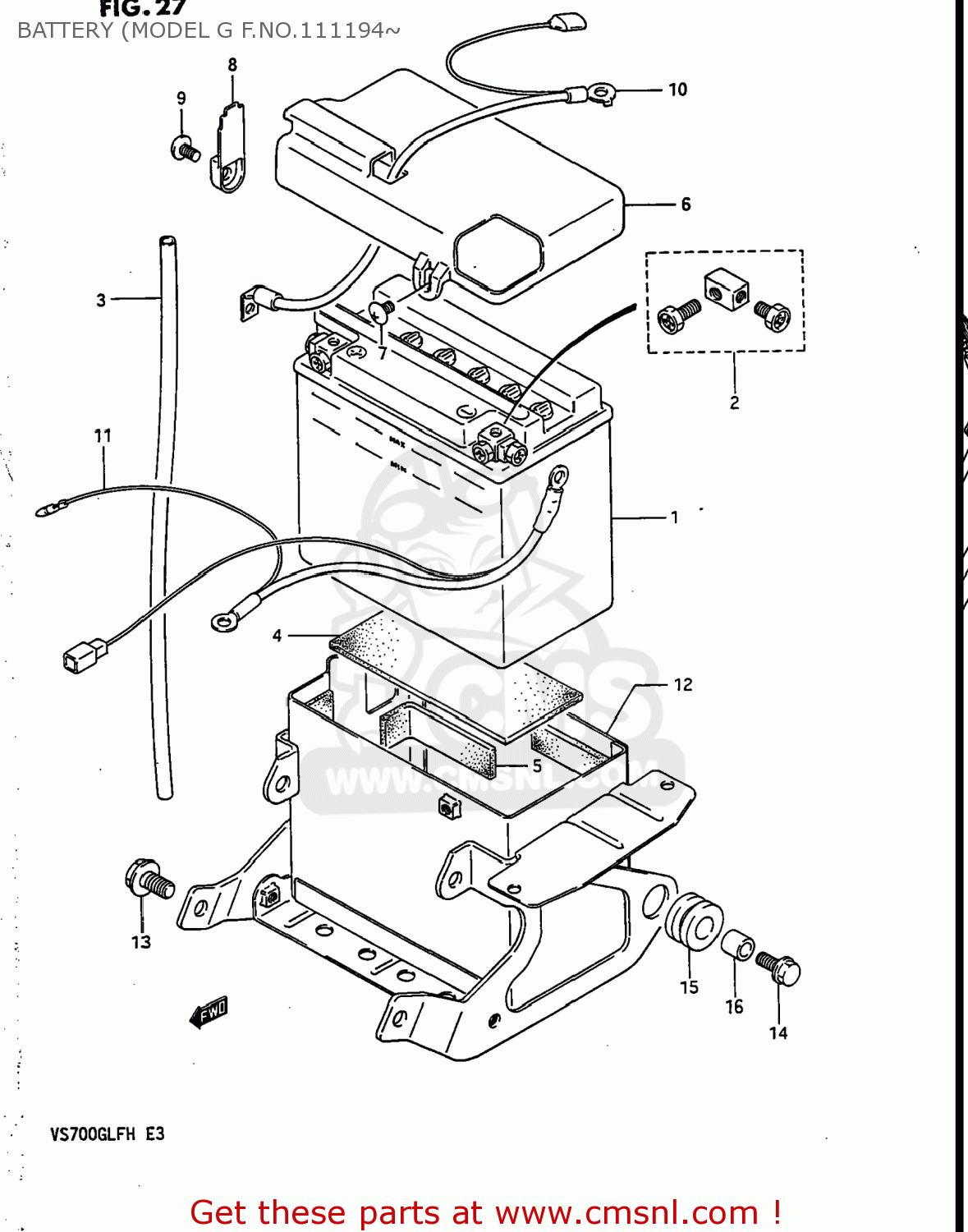

BATTERY (MODEL G F.NO.111194~

VS700GLP INTRUDER 1986 (G) USA (E03)

Battery (model g f.no.111194~ diagram VS700GLP INTRUDER 1986 (G) USA (E03)

BATTERY (MODEL G F.NO.111194~ VS700GLP INTRUDER 1986 (G) USA (E03)

BATTERY (MODEL G F.NO.111194~ VS700GLP INTRUDER 1986 (G) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3361038A31
ref: 1
33610-38A01

BATTERY ASSEMBLY (12V)

€ 119.50

2

3362638A01
ref: 2

BOLT SET,BATTERY TERMINAL

€ 22.00

3

3368017300
ref: 3
33680-16A10

HOSE,BATTERY EXHAUST

€ 4.50

4

3365137000
ref: 4

PROTECTOR(170X95X3.0)

€ 5.00

5

3365238A10
ref: 5
33652-07D00

PROTECTOR(20X90)X2

€ 4.50

6

3365838A30
ref: 6

COVER,BATTERY UPR

€ 8.50

7

0214205085
ref: 7
02142-0508A

SCREW

€ 2.00

8

3365838A40
ref: 8

COVER,BATTERY TERMINAL

€ 2.00

9

0214205085
ref: 9
02142-0508A

SCREW

€ 2.00

10

3382039A00
ref: 10

WIRE,BATTERY PLUS LEAD

€ 19.00

11

3386038A00
ref: 11

WIRE,BATTERY MINUS LEAD

€ 17.50

12-1

4154038A10
ref: 12-1
41540-38A12

HOLDER,BATTERY

€ 103.50

12-2

4154038A11
ref: 12-2
41540-38A12

HOLDER,BATTERY

€ 103.50

13

0151710165
ref: 13
01550-1016A

BOLT

€ 2.50

14

0151706164
ref: 14
01550-0616A

BOLT

€ 2.50

15

0932012031
ref: 15

CUSHION

€ 3.00

16

0918008001
ref: 16
09180-08189

SPACER (8.8X12X11)

€ 2.00
