FRONT WHEEL (VS700GLEFG/GLEPG)

VS700GLP INTRUDER 1986 (G) USA (E03)

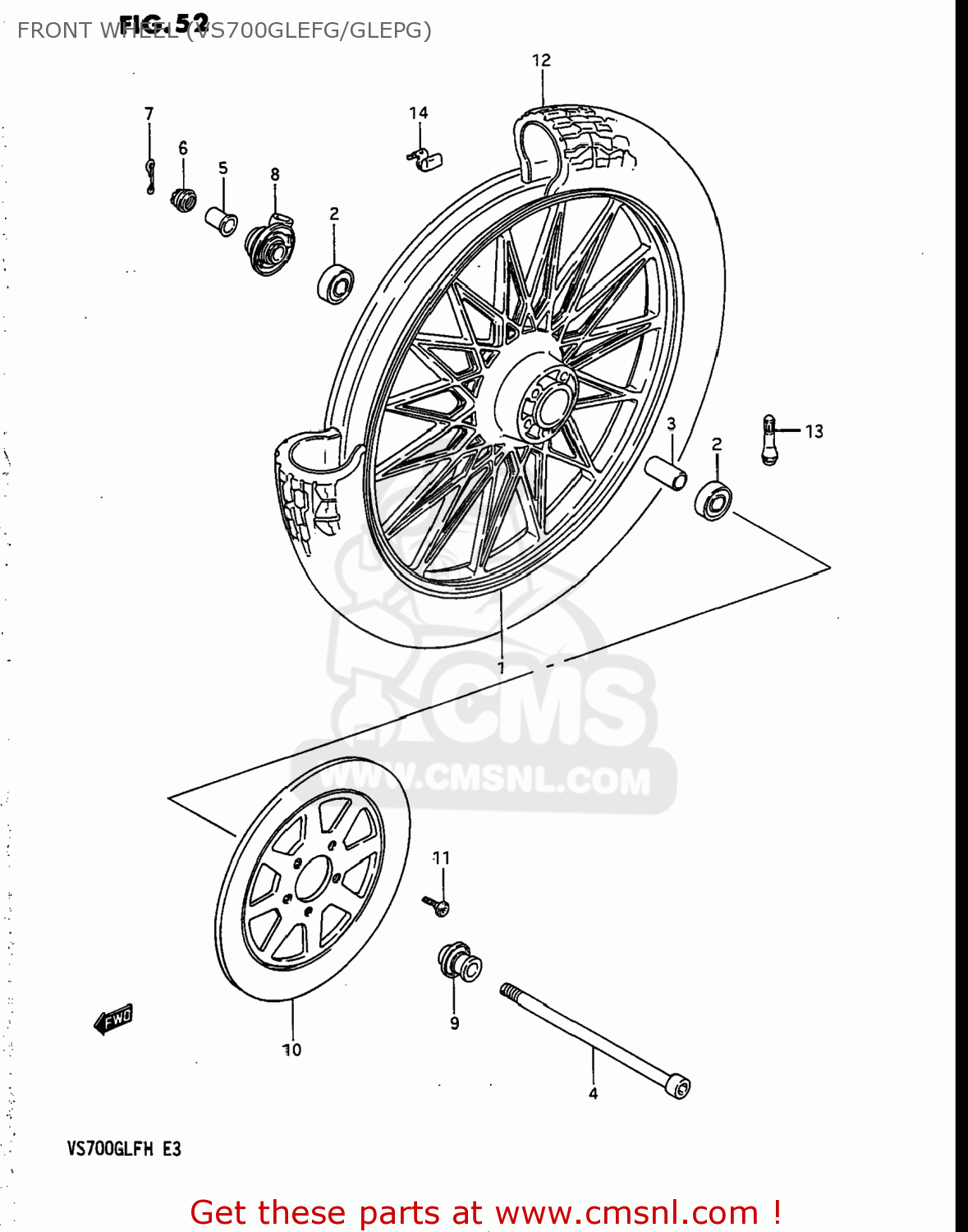

Front wheel (vs700glefg/glepg) diagram VS700GLP INTRUDER 1986 (G) USA (E03)

FRONT WHEEL (VS700GLEFG/GLEPG) VS700GLP INTRUDER 1986 (G) USA (E03)

FRONT WHEEL (VS700GLEFG/GLEPG) VS700GLP INTRUDER 1986 (G) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5411138A1023W
ref: 1

CASTING WHEEL,FRONT 2.15-

€ 650.00

2

0812363027
ref: 2

BEARING

€ 19.00

3

0918015004
ref: 3

SPACER(15.3X21.7X65)

€ 9.00

4

5471138A01
ref: 4

AXLE,FRONT

€ 58.00

5

5474138A00
ref: 5

SPACER,FRONT AXLE,RIGHT

€ 10.50

6

0915912021
ref: 6

NUT

€ 5.50

7

5479138A00
ref: 7

PIN,FRONT AXLE

€ 2.50

8

5460049260
ref: 8

BOX ASSY,SPEEDOMETER GEAR

€ 219.00

9

5475038A20
ref: 9

SPACER COMP,FRONT AXLE

€ 12.50

10

5921138A10
ref: 10

DISC,FRONT BRAKE

€ 320.50

11

0910608049
ref: 11

BOLT(8X25.5)

€ 4.00

12

5510038A20
ref: 12

TIRE,FRONT

€ 109.00

13

4313075150
ref: 13
43130-78030

VALVE,TIRE

€ 14.50

14-1

5541100A0023W
ref: 14-1
55411-00A00-10V

BALANCER,WHEEL

€ 6.50

14-2

5541200A0023W
ref: 14-2
55412-17G00

BALANCER,WHEEL

€ 7.00

14-3

5541300A0023W
ref: 14-3
55413-00A01

BALANCER,WHEEL

€ 4.00

14-3

5541300A0023W
ref: 14-3
55413-00A01

BALANCER,WHEEL

€ 4.00
