Buy Suzuki VS Parts Online


CANISTER (FOR CALIFORNIA)

VS700GLP INTRUDER 1986 (G) USA (E03)

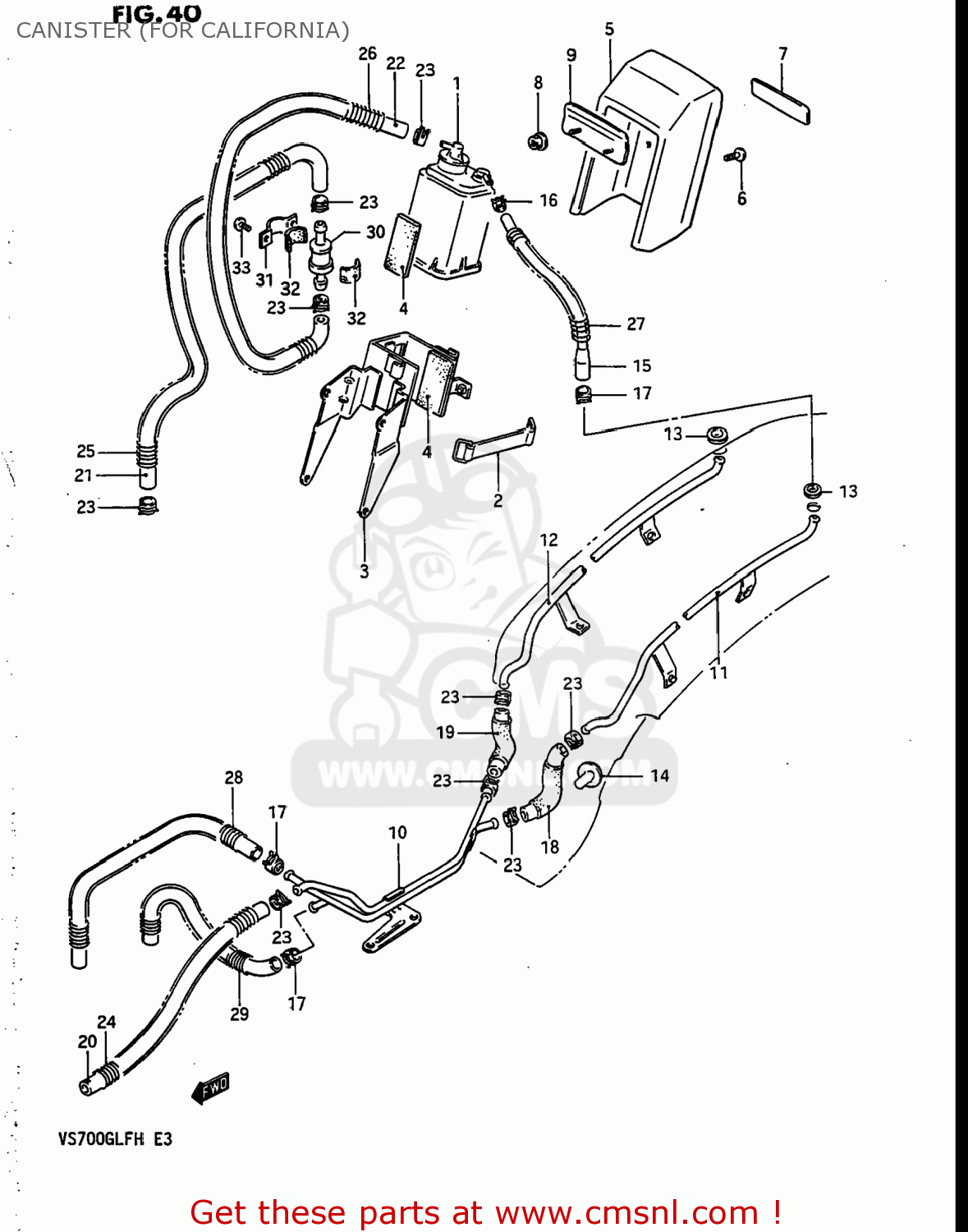

Canister (for california) diagram VS700GLP INTRUDER 1986 (G) USA (E03)

CANISTER (FOR CALIFORNIA) VS700GLP INTRUDER 1986 (G) USA (E03)
CANISTER (FOR CALIFORNIA) VS700GLP INTRUDER 1986 (G) USA (E03)
CANISTER (FOR CALIFORNIA) VS700GLP INTRUDER 1986 (G) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
1721038A00
ref: 1
CANISTER ASSY,CHARCOAL
€ 0.00
2
0946200034
ref: 2
BAND
0946200034
€ 4.50
3
4488038A00
ref: 3
BRACKET,CANISTER
€ 18.50
4
4489424A00
ref: 4
CUSHION
4489424A00
€ 1.50
5-1
4499138A00
ref: 5-1
44991-38A10
COVER,CANISTER
€ 120.50
5-2
4499138A10
ref: 5-2
COVER,CANISTER
€ 120.50
6
0912005002
ref: 6
SCREW (5X10)
€ 0.00
7
6826138B00
ref: 7
EMBLEM,TOOL HOLDER,REAR
6826138B00
€ 31.50
8
0831616053
ref: 8
08316-1005A
NUT
€ 2.00
9-1
4487038A00
ref: 9-1
44870-38A01
PLATE,CANISTER
€ 8.00
9-2
4487038A01
ref: 9-2
PLATE,CANISTER
€ 8.00
10
4494038A00
ref: 10
PIPE,CSTR JOINT FR
€ 67.50
11
4495038A00
ref: 11
PIPE
€ 36.50
12
4496038A00
ref: 12
(CA) PIPE,CANISTER JOINT REAR
€ 38.50
13
0930805020
ref: 13
GROMMET
€ 2.50
14
0930805004
ref: 14
GROMMET
€ 2.00
15
4441138A00
ref: 15
44911-43500
HOSE
€ 3.00
16
0940106404
ref: 16
09401-06405
CLAMP
€ 2.00
17
0940108407
ref: 17
09401-08411
CLIP
€ 3.00
18
4434038A00
ref: 18
(CA) HOSE NO.6
€ 0.00
19
4433038A00
ref: 19
(CA) HOSE NO.2
€ 0.00
20
0934305399
ref: 20
HOSE
€ 48.50
21
0934305397
ref: 21
09343-05414
HOSE
€ 3.50
22
0934305398
ref: 22
09343-05414
HOSE
€ 3.50
23
0940111410
ref: 23
09401-11413
(CA) CLIP
0940111410
€ 2.50
24
0944013018
ref: 24
09440-13043
SPRING
€ 14.50
25
0944013044
ref: 25
(CA) SPRING
€ 7.00
26
0944013043
ref: 26
SPRING
0944013043
€ 14.50
27
0944010031
ref: 27
SPRING
€ 0.00
28
0944010022
ref: 28
SPRING
€ 4.50
29
0944010019
ref: 29
SPRING
0944010019
€ 4.00
30
4424038A00
ref: 30
VALVE,FUEL TANK BREATHER
4424038A00
€ 35.00
31
4489224A00
ref: 31
PLATE,FUEL TANK BREATHER NO.2
€ 3.00
32
4489424A00
ref: 32
CUSHION
4489424A00
€ 1.50
33
0214204103
ref: 33
02142-0410A
SCREW
0214204103
€ 1.50
