REAR WHEEL (VS700GLFG/GLPG)

VS700GLP INTRUDER 1986 (G) USA (E03)

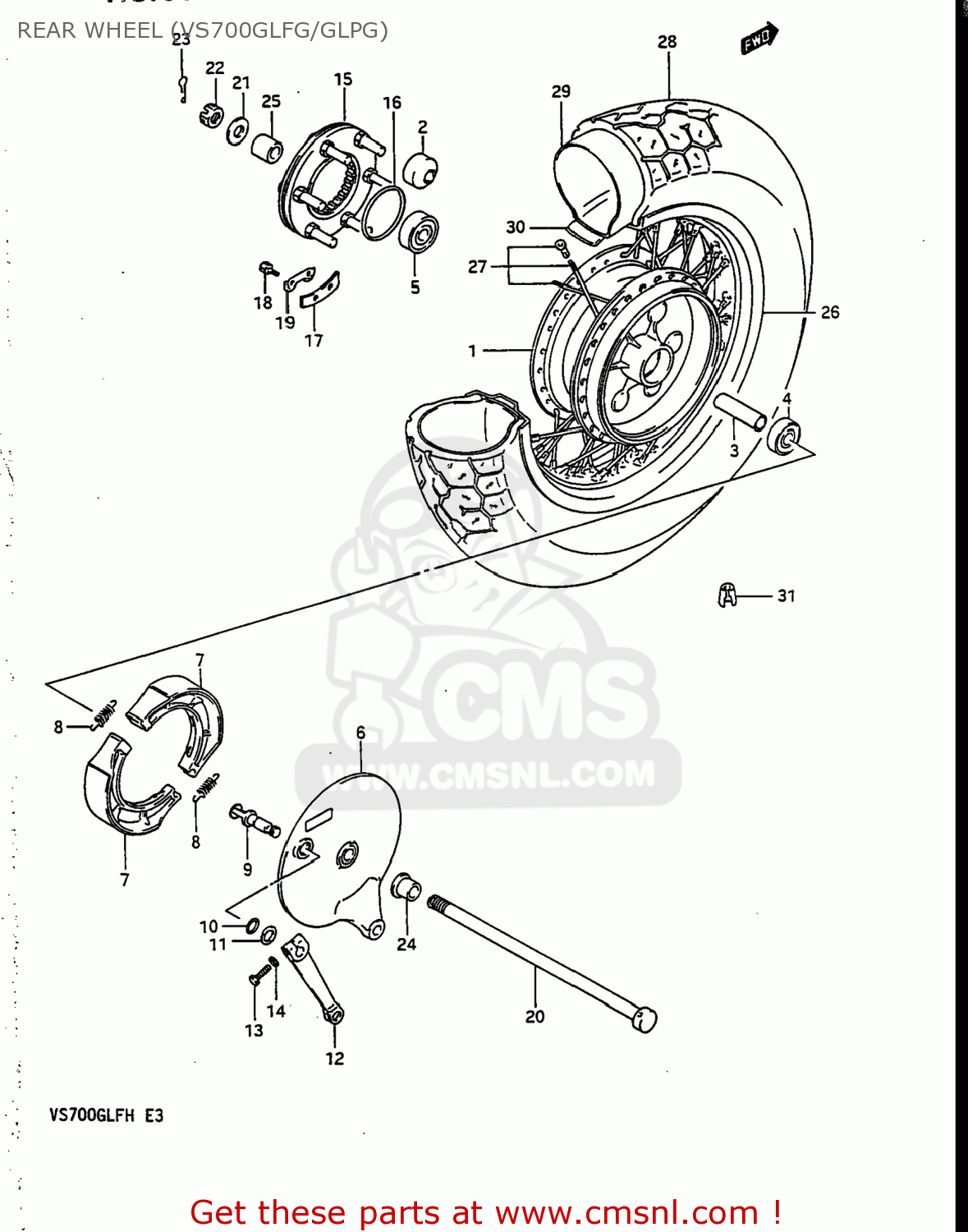

Rear wheel (vs700glfg/glpg) diagram VS700GLP INTRUDER 1986 (G) USA (E03)

REAR WHEEL (VS700GLFG/GLPG) VS700GLP INTRUDER 1986 (G) USA (E03)
REAR WHEEL (VS700GLFG/GLPG) VS700GLP INTRUDER 1986 (G) USA (E03)
REAR WHEEL (VS700GLFG/GLPG) VS700GLP INTRUDER 1986 (G) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
6410007850
ref: 1
64100-07861
HUB SET,REAR
€ 392.00
2
0931912037
ref: 2
BUSHING
€ 0.00
3
6473137200
ref: 3
SPACER,REAR HUB BEARING
€ 19.00
4
0812362037
ref: 4
08133-62037
BEARING
0812362037
€ 24.50
5
0814363037
ref: 5
BEARING
0814363037
€ 23.00
6
6421038A02
ref: 6
PANEL,REAR BRAKE ANCHOR
€ 126.00
7
6441007A01
ref: 7
64400-38810
SHOE SET,BRAKE (MCA)
6441007A01
€ 56.50
8
5542030000
ref: 8
SPRING,BRAKE SHOE
5542030000
€ 3.50
9
6444038A00
ref: 9
CAM,RR BRAKE
6444038A00
€ 43.00
10
0928015001
ref: 10
09280-15003
O-RING,BOSS
0928015001
€ 2.00
11
0916015001
ref: 11
09160-15048
WASHER (15X24X1.6)
0916015001
€ 2.50
12
6445138A01
ref: 12
LEVER,RR BRAKE CAM
6445138A01
€ 33.00
13
0110706258
ref: 13
01500-06257
BOLT
€ 2.00
14
0832121067
ref: 14
08321-01067
WASHER,LOCK
0832121067
€ 2.50
15
6468007A01
ref: 15
64680-45113
JOINT ASSEMBLY,REAR HUB DRUM
€ 181.50
16
0928065003
ref: 16
O RING(D:2.1,ID:65)
0928065003
€ 2.50
17
6467745110
ref: 17
WASHER,THRUST(T:1.6)
6467745110
€ 2.50
18
0911906049
ref: 18
BOLT(6X16)
0911906049
€ 1.50
19
0916906030
ref: 19
WASHER
0916906030
€ 2.00
20
6471138A00
ref: 20
AXLE,REAR
€ 46.50
21
0916016025
ref: 21
WASHER(16.5X36X3.2)
0916016025
€ 2.50
22
0914116001
ref: 22
NUT
0914116001
€ 6.50
23
6479138A00
ref: 23
COTTER PIN
€ 0.00
24
6474138A10
ref: 24
SPACER,REAR AXLE,RIGHT
€ 12.50
25
6477234200
ref: 25
64772-34201
SPACER,REAR AXLE,LEFT
6477234200
€ 14.50
26
6531138A00
ref: 26
65311-38A02
RIM,REAR WHEEL
€ 331.50
27
6532038A00
ref: 27
65320-38A01
SPOKE SET,REAR WHEEL
€ 164.00
28
6510038A00
ref: 28
65100-38A41
TIRE
€ 159.00
29
6520038A00
ref: 29
TUBE ASSEMBLY,WHEEL,INNER
€ 32.50
30
6526138A00
ref: 30
PROTECTOR,WHL INR TUBE
6526138A00
€ 3.50
31-1
5541238A00
ref: 31-1
55412-41F00
BALANCER,WHEEL
5541238A00
€ 6.50
31-2
5541338A00
ref: 31-2
55413-41F00
BALANCER,WHEEL (30G)
€ 8.00
31-2
5541338A00
ref: 31-2
55413-41F00
BALANCER,WHEEL (30G)
€ 8.00
31-2
5541338A00
ref: 31-2
55413-41F00
BALANCER,WHEEL (30G)
€ 8.00
31-2
5541338A00
ref: 31-2
55413-41F00
BALANCER,WHEEL (30G)
€ 8.00
