CRANKCASE

VS800 BOULEVARD S50 2006 (K6) USA (E03) BOULEVARDS50 BOULEVARD-S

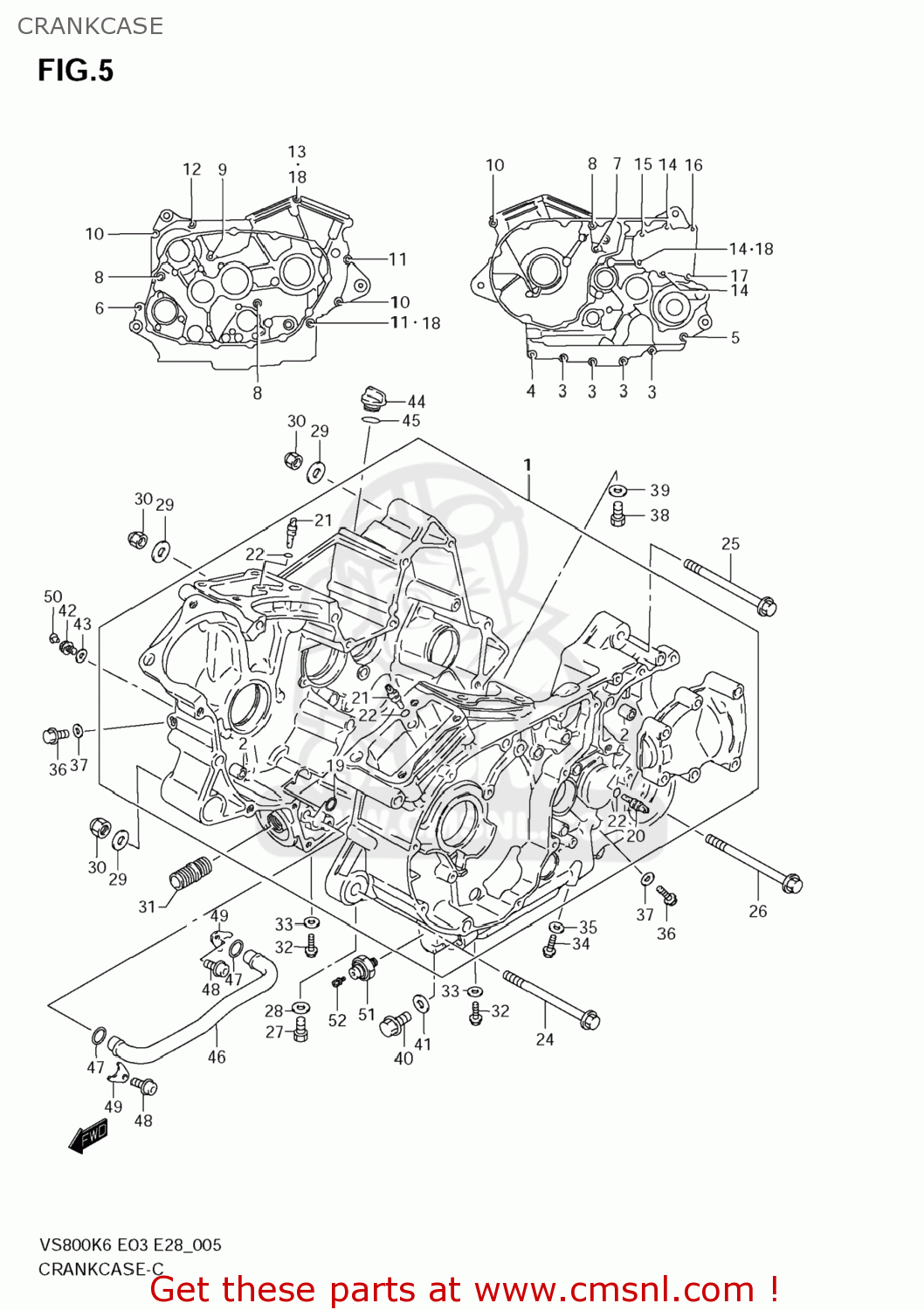

Crankcase diagram VS800 BOULEVARD S50 2006 (K6) USA (E03) BOULEVARDS50 BOULEVARD-S

CRANKCASE VS800 BOULEVARD S50 2006 (K6) USA (E03) BOULEVARDS50 BOULEVARD-S
CRANKCASE VS800 BOULEVARD S50 2006 (K6) USA (E03) BOULEVARDS50 BOULEVARD-S
CRANKCASE VS800 BOULEVARD S50 2006 (K6) USA (E03) BOULEVARDS50 BOULEVARD-S
prices are in EUR
ref
part #
description
quantity
1
1130138852
ref: 1
11301-38853
CRANKCASE SET
€ 1,659.00
2
0920611007
ref: 2
PIN(8.4X11X20)
0920611007
€ 1.50
3
0155006407
ref: 3
BOLT
0155006407
€ 2.50
4
0155008357
ref: 4
BOLT
0155008357
€ 3.50
5
0155008557
ref: 5
BOLT
0155008557
€ 3.00
6
0155008607
ref: 6
BOLT
0155008607
€ 3.50
7
015500875A
ref: 7
BOLT
015500875A
€ 3.00
8
015500895A
ref: 8
BOLT
015500895A
€ 2.50
9
0910308109
ref: 9
BOLT(8X120)
0910308109
€ 3.50
10
0910308164
ref: 10
BOLT(8X95)
0910308164
€ 3.50
11
0910308165
ref: 11
BOLT(8X105)
0910308165
€ 3.50
12
0910308166
ref: 12
BOLT(8X120)
€ 5.00
13
0910308167
ref: 13
BOLT(8X160)
0910308167
€ 6.00
14
0155008407
ref: 14
BOLT
0155008407
€ 3.50
15
0155008507
ref: 15
BOLT
0155008507
€ 3.50
16
0910308162
ref: 16
BOLT(8X55)
0910308162
€ 3.00
17
0910308163
ref: 17
BOLT(8X65)
0910308163
€ 4.50
18
0916808016
ref: 18
GASKET(8.2X14X1) (NAS)
0916808016
€ 1.00
19
0928012009
ref: 19
O RING(D:1.9,ID:12.6)
0928012009
€ 2.50
19
0928012009
ref: 19
O RING(D:1.9,ID:12.6)
0928012009
€ 2.50
20
0949320014
ref: 20
JET,OIL GALLERY
0949320014
€ 8.00
21
0949328010
ref: 21
JET,AIR(14)
0949328010
€ 10.50
22
0928004004
ref: 22
O RING(D:1.2,ID:4)
0928004004
€ 2.00
23-1
0916048001
ref: 23-1
WASHER(48.1X64X1.94)
0916048001
€ 18.50
23-10
0916048010
ref: 23-10
WASHER(48.1X64X2.16)
0916048010
€ 17.00
23-2
0916048002
ref: 23-2
WASHER(48.1X64X1.96)
0916048002
€ 17.00
23-3
0916048003
ref: 23-3
WASHER(48.1X64X1.99)
0916048003
€ 17.00
23-4
0916048004
ref: 23-4
WASHER(48.1X64X2.01)
0916048004
€ 17.00
23-5
0916048005
ref: 23-5
WASHER(48.1X64X2.04)
0916048005
€ 17.00
23-6
0916048006
ref: 23-6
WASHER(48.1X64X2.06)
0916048006
€ 17.00
23-7
0916048007
ref: 23-7
WASHER(48.1X64X2.09)
0916048007
€ 17.00
23-8
0916048008
ref: 23-8
WASHER(48.1X64X2.11)
0916048008
€ 17.00
23-9
0916048009
ref: 23-9
WASHER(48.1X64X2.14)
0916048009
€ 17.00
24
0910310141
ref: 24
BOLT(10X125)
0910310141
€ 6.00
25
0910310122
ref: 25
BOLT(10X130)
0910310122
€ 9.50
26
0910310078
ref: 26
BOLT(10X150)
0910310078
€ 8.50
27
0924712011
ref: 27
PLUG(12X20)
0924712011
€ 4.50
28
0916812002
ref: 28
GASKET(12.1X16.2X3.7) (NAS)
0916812002
€ 2.00
29
083220110B
ref: 29
WASHER
083220110B
€ 2.50
30
0915910052
ref: 30
NUT
0915910052
€ 8.50
31
1659106B00
ref: 31
16591-06B01
UNION,OIL STAND
1659106B00
€ 6.00
32
015500812B
ref: 32
BOLT
015500812B
€ 3.50
33
0916808016
ref: 33
GASKET(8.2X14X1) (NAS)
0916808016
€ 1.00
34
0924710008
ref: 34
PLUG(10X12)
0924710008
€ 3.00
35
0916810002
ref: 35
GASKET(10X14X3.6) (NAS)
0916810002
€ 2.00
36
015500610B
ref: 36
BOLT
015500610B
€ 2.50
37
0916806023
ref: 37
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
38
0924816013
ref: 38
PLUG
0924816013
€ 4.50
39
0916816002
ref: 39
GASKET(16X22X2) (NAS)
0916816002
€ 2.00
40
0924714026
ref: 40
PLUG(14X12)
0924714026
€ 3.50
41
0916814002
ref: 41
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
42
0712008127
ref: 42
BOLT
€ 2.50
43
0916808016
ref: 43
GASKET(8.2X14X1) (NAS)
0916808016
€ 1.00
44
1197125D00
ref: 44
PLUG,ENGINE OIL FILLER
1197125D00
€ 5.50
45
0928017003
ref: 45
O RING(D:3.1,ID:16.8)
0928017003
€ 2.00
46
1145138A00
ref: 46
PIPE,OIL GALLERY
€ 13.50
47
0928015008
ref: 47
O RING(D:3.1,ID:14.8)
0928015008
€ 1.50
48
0910606075
ref: 48
BOLT(6X12)
0910606075
€ 2.50
49
1146138A00
ref: 49
CLAMP,OIL PIPE
€ 1.50
50
0925006011
ref: 50
CAP(OD:11)
0925006011
€ 2.50
51
3782033D10
ref: 51
SWITCH ASSY,OIL PRESSURE
3782033D10
€ 29.00
52
3782233D00
ref: 52
BOLT,OIL PRESSURE SWITCH
3782233D00
€ 3.00
