VS800 BOULEVARD S50 2006 (K6) USA (E03) BOULEVARDS50 BOULEVARD-S

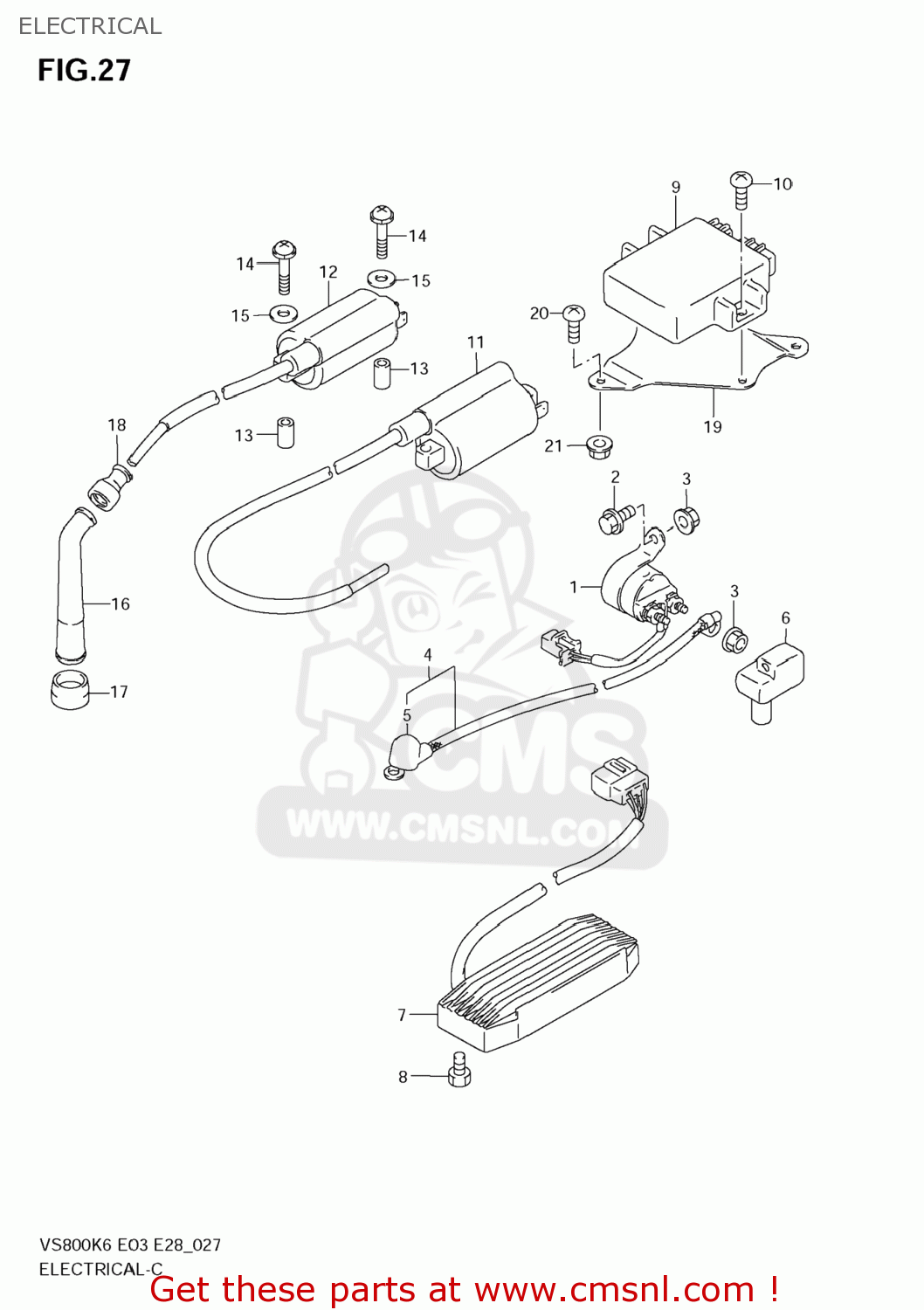

Electrical diagram VS800 BOULEVARD S50 2006 (K6) USA (E03) BOULEVARDS50 BOULEVARD-S

prices are in EUR

ref

part #

description

quantity

3180015501
ref: 1

RELAY ASSY,STARTING MOTOR

€ 78.00

015500610B
ref: 2

BOLT

€ 2.50

083613506A
ref: 3

NUT

€ 2.00

3385038A00
ref: 4

WIRE,STARTER MOTOR LEAD

€ 17.50

3186148B10
ref: 5

CAP,STARTER MOTOR LEAD

€ 4.50

3186138A00
ref: 6

CAP,STARTER RELAY

€ 7.50

3280012E01
ref: 7

RECTIFIER ASSY

€ 368.00

015000610B
ref: 8

BOLT

€ 2.00

3290038A31
ref: 9

IGNITOR ASSY

€ 633.50

021420612B
ref: 10

SCREW

€ 2.00

3341038A20
ref: 11

COIL ASSY,IGNITION RR

€ 100.50

3342038A20
ref: 12

COIL ASSY,IGNITION FR

€ 0.00

0918006144
ref: 13

SPACER(6.4X10X19)

€ 5.00

0913705008
ref: 14

SCREW(5X38)

€ 0.00

15-1

083220105B
ref: 15-1

WASHER

€ 2.50

15-2

083220105B
ref: 15-2

WASHER

€ 2.50

3351011410
ref: 16

CAP,SPARK PLUG

€ 24.50

3354138210
ref: 17

SEAL,SPARK PLUG

€ 7.00

3354238B00
ref: 18

SEAL,HIGH TENSION CORD

€ 4.50

3291038A10
ref: 19

PLATE,IGNITOR FITING

€ 7.00

021123612B
ref: 20

SCREW

€ 2.00

083162006B
ref: 21

NUT

€ 0.00
