GEAR SHIFTING

VS800 BOULEVARD S50 2006 (K6) USA (E03) BOULEVARDS50 BOULEVARD-S

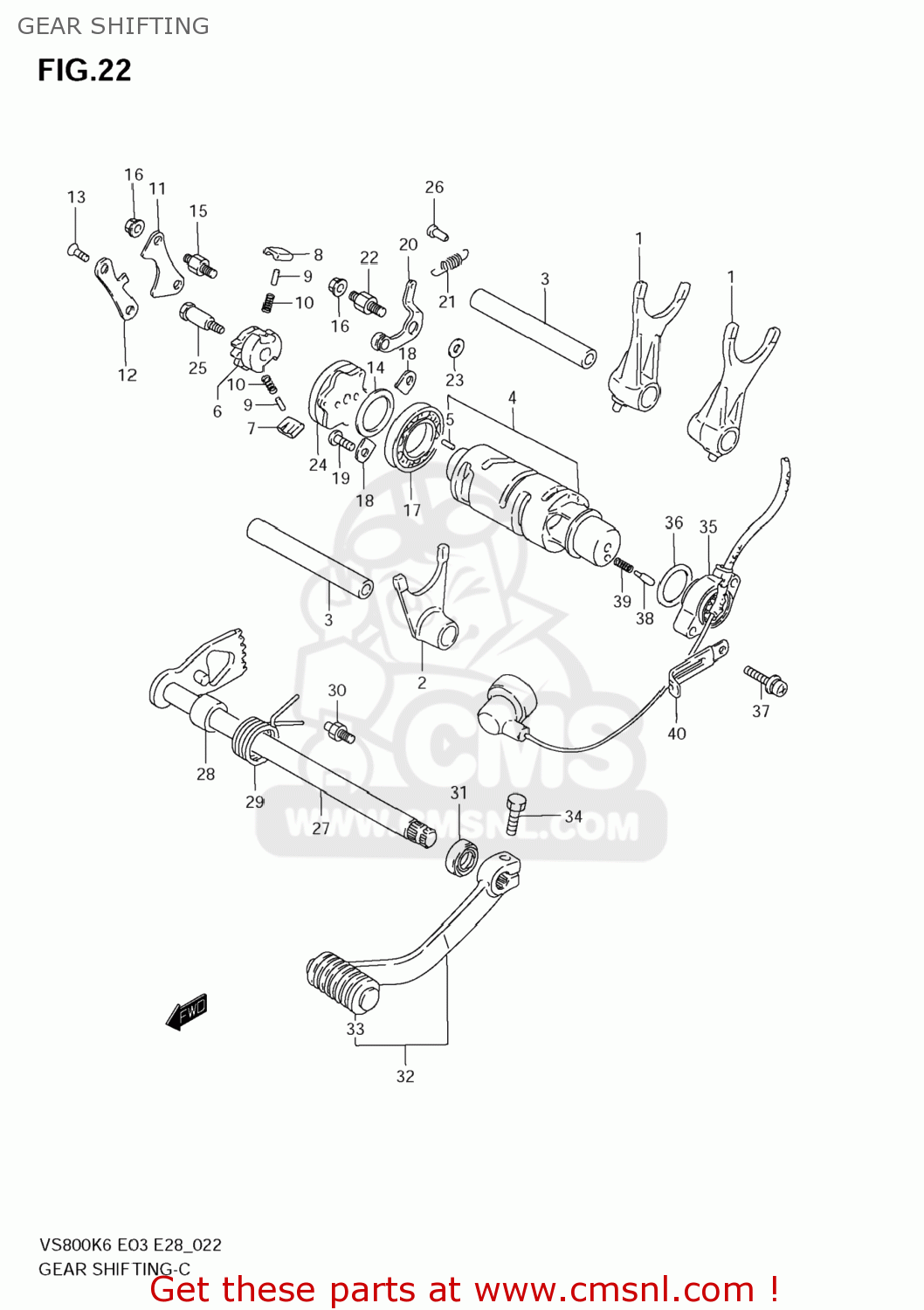

Gear shifting diagram VS800 BOULEVARD S50 2006 (K6) USA (E03) BOULEVARDS50 BOULEVARD-S

GEAR SHIFTING VS800 BOULEVARD S50 2006 (K6) USA (E03) BOULEVARDS50 BOULEVARD-S
GEAR SHIFTING VS800 BOULEVARD S50 2006 (K6) USA (E03) BOULEVARDS50 BOULEVARD-S
GEAR SHIFTING VS800 BOULEVARD S50 2006 (K6) USA (E03) BOULEVARDS50 BOULEVARD-S
prices are in EUR
ref
part #
description
quantity
1
2521138A02
ref: 1
FORK,GEAR SHIFT NO.1
€ 94.00
2
2522138A01
ref: 2
FORK,GEAR SHIFT NO.2
€ 79.00
3
2541138A00
ref: 3
SHAFT,GEAR SHIFT FORK(L:115)
€ 17.00
4
2531038A03
ref: 4
CAM,GEAR SHIFT
€ 146.00
5
0422104089
ref: 5
PIN
0422104089
€ 1.50
6
2532231310
ref: 6
GEAR,GEAR SHIFT CAM DRIVEN
2532231310
€ 14.50
7
2532334201
ref: 7
PAWL,GEAR SHIFT NO.1
2532334201
€ 6.00
8
2532434201
ref: 8
PAWL,GEAR SHIFT NO.2
2532434201
€ 6.00
9
0926105003
ref: 9
PIN(5X8)
0926105003
€ 1.50
10
0944004003
ref: 10
SPRING
0944004003
€ 1.50
11
2533138A00
ref: 11
LIFTER,GEAR SHIFT POLE
2533138A00
€ 4.50
12
2534138A00
ref: 12
GUIDE,GEAR SHIFT CAM
2534138A00
€ 6.00
13
0912606011
ref: 13
SCREW(6X12)
0912606011
€ 2.00
14
0916025059
ref: 14
WASHER(25X32X3)
0916025059
€ 5.00
15
2533238A10
ref: 15
BOSS,SHIFT POLE LIFTER
2533238A10
€ 3.50
16
083161006A
ref: 16
NUT
083161006A
€ 2.50
17
0926225006
ref: 17
BEARING(25X47X8)
0926225006
€ 24.00
18
2474121A00
ref: 18
RETAINER
2474121A00
€ 2.00
19
0912506110
ref: 19
BOLT(6X12)
0912506110
€ 2.50
20
2535038A00
ref: 20
STOPPER,GEAR SHIFT CAM
2535038A00
€ 9.00
21
0944309027
ref: 21
SPRING
0944309027
€ 2.50
22
2535538A10
ref: 22
SUPPORT,CAM STOPPER ARM
€ 5.50
23
0821106141
ref: 23
WASHER
0821106141
€ 2.50
24
2538038A02
ref: 24
PLATE,GEAR SHIFT CAM
2538038A02
€ 15.00
25
2531238A00
ref: 25
PIN,SHIFT CAM DRIVEN GEAR
2531238A00
€ 4.00
26-1
0922304001
ref: 26-1
RIVET
0922304001
€ 1.50
26-2
0922304004
ref: 26-2
RIVET
0922304004
€ 2.00
27
2551038A00
ref: 27
SHAFT,GEAR SHIFT
2551038A00
€ 66.50
28
0918012068
ref: 28
SPACER(12X20X15.3)
0918012068
€ 3.00
29
0944426013
ref: 29
SPRING
0944426013
€ 3.50
30
2567101011
ref: 30
STOPPER,GEAR SHIFT ARM
2567101011
€ 3.00
31
0928512002
ref: 31
09285-12006
OIL SEAL
0928512002
€ 7.00
32
2560038A00
ref: 32
LEVER ASSY,GEAR SHIFT
2560038A00
€ 58.50
33
2565220C00
ref: 33
RUBBER,GEAR SHIFT PEDAL
2565220C00
€ 8.00
34
015000620A
ref: 34
BOLT
015000620A
€ 2.00
35
3772038A40
ref: 35
BASE,NEUTRAL SWH TERMINAL
3772038A40
€ 66.00
36
0928026005
ref: 36
O RING(D:2.4,ID:26.2)
0928026005
€ 2.50
37
021127520A
ref: 37
SCREW
021127520A
€ 3.00
38
0920905011
ref: 38
PIN(5X15.5)
0920905011
€ 2.00
39
0944004010
ref: 39
SPRING
0944004010
€ 1.50
40-1
0940406429
ref: 40-1
CLAMP(L:45)
€ 2.50
40-2
0940406433
ref: 40-2
CLAMP(L:80)
0940406433
€ 3.00
