REAR BRAKE

VS800 BOULEVARD S50 2006 (K6) USA (E03) BOULEVARDS50 BOULEVARD-S

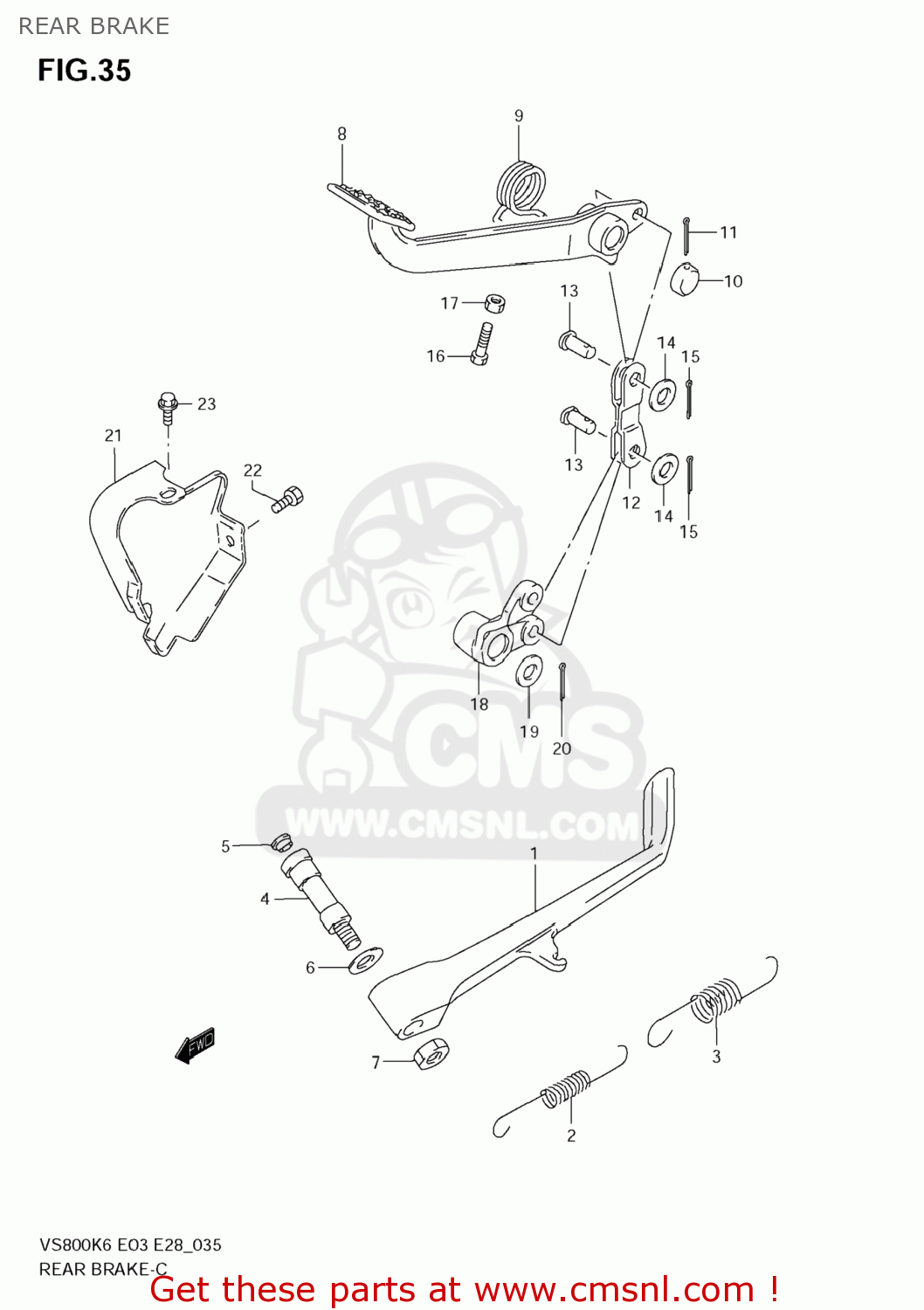

Rear brake diagram VS800 BOULEVARD S50 2006 (K6) USA (E03) BOULEVARDS50 BOULEVARD-S

prices are in EUR

ref

part #

description

quantity

4231024B01
ref: 1

STAND,PROP

€ 92.00

0944313025
ref: 2

SPRING

€ 7.50

0944318021
ref: 3

SPRING

€ 7.50

4234138B01
ref: 4

BOLT,PROP STAND

€ 9.00

4357534500
ref: 5

CAP

€ 1.50

0918115158
ref: 6

SHIM(15X24X0.5)

€ 2.50

0914010044
ref: 7

NUT

€ 2.50

4310038A31
ref: 8

PEDAL ASSY,BRAKE

€ 81.50

0944831034
ref: 9

SPRING

€ 5.50

4313507A02
ref: 10

CAP,BRAKE PEDAL

€ 7.00

041113025A
ref: 11

PIN

€ 1.00

4323038A02
ref: 12

LINK,BRAKE ROD NO.1

€ 18.50

0920008055
ref: 13

PIN

€ 4.00

0832201087
ref: 14

WASHER

€ 2.00

041112015A
ref: 15

PIN

€ 1.50

0150006207
ref: 16

BOLT

€ 2.00

0831000067
ref: 17

NUT

€ 2.50

4326038A22
ref: 18

ARM,BRAKE PEDAL LINK

€ 77.00

0916016043
ref: 19

WASHER(16.5X22X1)

€ 2.00

041113025A
ref: 20

PIN

€ 1.00

4329538A31
ref: 21

COVER,BRAKE

€ 57.50

0912806044
ref: 22

SCREW(6X10)

€ 1.50

0154706107
ref: 23

BOLT

€ 1.50
