STARTER CLUTCH

VS800 BOULEVARD S50 2006 (K6) USA (E03) BOULEVARDS50 BOULEVARD-S

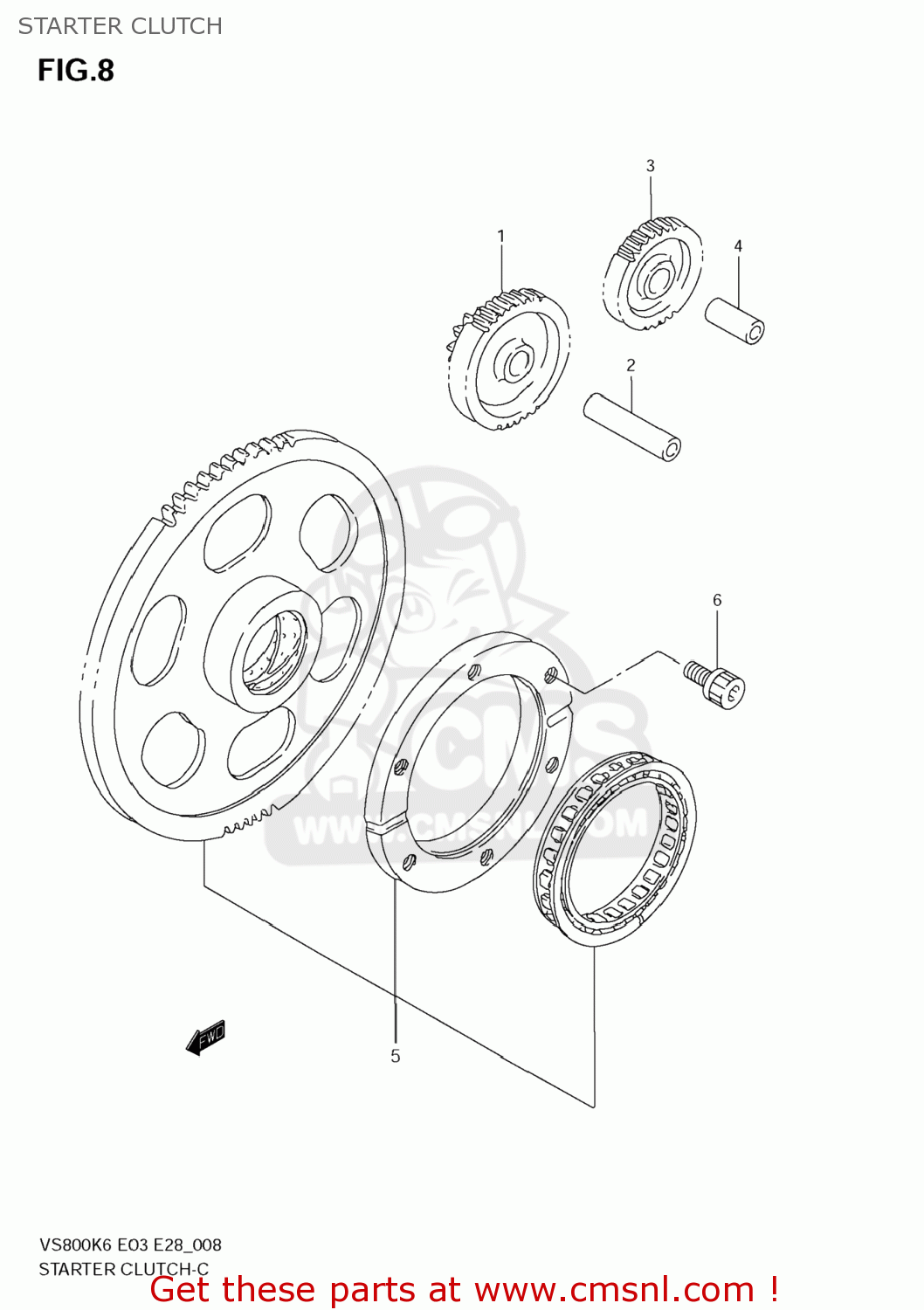

Starter clutch diagram VS800 BOULEVARD S50 2006 (K6) USA (E03) BOULEVARDS50 BOULEVARD-S

STARTER CLUTCH VS800 BOULEVARD S50 2006 (K6) USA (E03) BOULEVARDS50 BOULEVARD-S

STARTER CLUTCH VS800 BOULEVARD S50 2006 (K6) USA (E03) BOULEVARDS50 BOULEVARD-S

prices are in EUR

ref

part #

description

quantity

1

1261138A01
ref: 1

GEAR,STARTER IDLE NO.1

€ 57.50

2

0920210008
ref: 2

PIN,10X43

€ 9.00

3

1261138A11
ref: 3

GEAR,STARTER IDLE NO.2

€ 39.50

4

0920210006
ref: 4

PIN

€ 6.50

5

1260038832
ref: 5

CLUTCH SET,STARTER

€ 307.00

6

0910608095
ref: 6

BOLT(8X16)

€ 2.50
