CARBURETOR (REAR)(MODEL T/V)

VS800GL 1992 (N) (E01 E02 E04 E16 E17 E18 E21 E22 E25 E34 39 53)

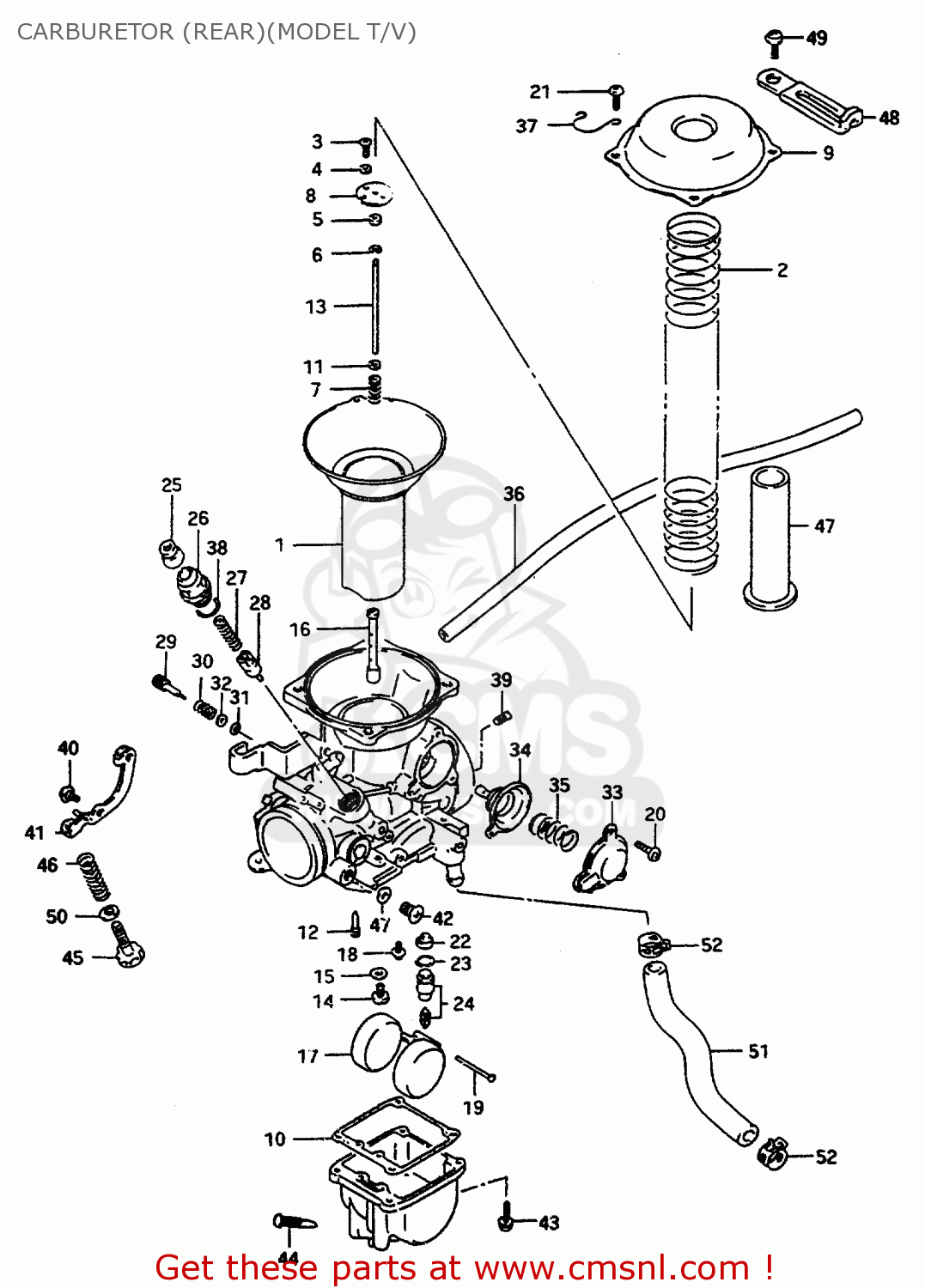

Carburetor (rear)(model t/v) diagram VS800GL 1992 (N) (E01 E02 E04 E16 E17 E18 E21 E22 E25 E34 39 53)

CARBURETOR (REAR)(MODEL T/V) VS800GL 1992 (N) (E01 E02 E04 E16 E17 E18 E21 E22 E25 E34 39 53)
CARBURETOR (REAR)(MODEL T/V) VS800GL 1992 (N) (E01 E02 E04 E16 E17 E18 E21 E22 E25 E34 39 53)
CARBURETOR (REAR)(MODEL T/V) VS800GL 1992 (N) (E01 E02 E04 E16 E17 E18 E21 E22 E25 E34 39 53)
prices are in EUR
ref
part #
description
quantity
0
1322038E90
ref: 0
CARBURETOR ASSY,RR
1322038E90
€ 696.00
0
1322038EA0
ref: 0
E17,E22
CARBURETOR ASSY,RR
€ 0.00
0
1322038EB0
ref: 0
E37
CARBURETOR ASSY, REAR
€ 0.00
1-1
1350038A10
ref: 1-1
DIAPHRAGM,CARBURETOR
1350038A10
€ 222.50
1-2
1350045C10
ref: 1-2
E17,E22
DIAPHRAGM ASSY
€ 205.00
2
1350338B00
ref: 2
SPRING,DIAPHRAGM
1350338B00
€ 12.00
3
0211203063
ref: 3
SCREW
0211203063
€ 2.00
4
0832121033
ref: 4
WASHER,LOCK
0832121033
€ 1.50
5
1338747010
ref: 5
RING
1338747010
€ 7.50
6
1339410010
ref: 6
CLIP
1339410010
€ 4.50
7
1338844030
ref: 7
SPRING
1338844030
€ 6.00
8
1338937400
ref: 8
PLATE
1338937400
€ 5.50
9
1350238A10
ref: 9
COVER,DIAPHRAGM
€ 37.50
10
1325138A10
ref: 10
GASKET,FLOAT CHAMBER (NAS)
1325138A10
€ 8.00
11
1338244030
ref: 11
WASHER
1338244030
€ 3.50
12-1
0949242010
ref: 12-1
JET,PILOT(42.5)
0949242010
€ 8.50
12-2
0949245016
ref: 12-2
E17,E22
JET,PILOT(45)
0949245016
€ 12.00
13
1338345C10
ref: 13
NEEDLE,JET
1338345C10
€ 15.00
14
0949121014
ref: 14
JET,MAIN(107.5)
0949121014
€ 8.50
15
1333244080
ref: 15
WASHER,NEEDLE NOZZLE
€ 2.50
16
0949400750
ref: 16
JET,NEEDLE(P-3)
0949400750
€ 37.00
17
1325223010
ref: 17
FLOAT
1325223010
€ 19.00
18
1360205A10
ref: 18
SCREW
1360205A10
€ 4.00
19
1325492311
ref: 19
PIN,FLOAT
1325492311
€ 2.00
20
0211204107
ref: 20
SCREW
0211204107
€ 2.00
21
0211204087
ref: 21
SCREW
0211204087
€ 1.50
22
1337684110
ref: 22
FILTER
€ 6.50
23
1337444080
ref: 23
O-RING,NEEDLE VALVE
1337444080
€ 6.00
24-1
1337039A00
ref: 24-1
VALVE ASSY,NEEDLE
1337039A00
€ 67.50
24-2
1337038E00
ref: 24-2
E37
VALVE ASSY,NEEDLE(NI)
€ 67.50
25
1368104010
ref: 25
CAP
1368104010
€ 3.00
26
1341843410
ref: 26
HOLDER,GUIDE
1341843410
€ 6.50
27
1341722010
ref: 27
SPRING
1341722010
€ 3.00
28
1341101400
ref: 28
PLUNGER,STARTER
1341101400
€ 11.50
29-1
1327947070
ref: 29-1
SCREW,PILOT
1327947070
€ 11.50
29-2
1327947070
ref: 29-2
E17,E22
SCREW,PILOT
1327947070
€ 11.50
30
1326847070
ref: 30
SPRING
1326847070
€ 5.00
31
1329529900
ref: 31
O RING,PILOT AIR SCREW
1329529900
€ 4.00
32
1329129900
ref: 32
WASHER
1329129900
€ 2.00
33
1348438A10
ref: 33
COVER
€ 16.00
34
1348005A10
ref: 34
DIAPHRAGM ASSY
1348005A10
€ 54.50
35
1348145C10
ref: 35
SPRING
1348145C10
€ 5.50
36
0935250823600
ref: 36
L:600-225
HOSE(5X8.2X600)
0935250823600
€ 13.00
37
1369202500
ref: 37
CLIP
€ 7.00
38
1327847090
ref: 38
O RING
1327847090
€ 2.00
39
0949270004
ref: 39
JET,PILOT(70)
0949270004
€ 9.50
40
1360205A30
ref: 40
SCREW
1360205A30
€ 4.50
41
1355445C20
ref: 41
LEVER ASSY
1355445C20
€ 38.50
42
0211205067
ref: 42
SCREW
€ 4.00
43
1360104148
ref: 43
SCREW
1360104148
€ 2.50
44
1324713A00
ref: 44
SCREW,DRAIN
1324713A00
€ 5.50
45
1326738A10
ref: 45
ADJUSTER
1326738A10
€ 13.00
46
1327193011
ref: 46
SPRING
1327193011
€ 4.50
47
1352346110
ref: 47
GASKET,DRAIN PLUG (NAS)
1352346110
€ 3.00
48
0940406431
ref: 48
CLAMP(L:65)
0940406431
€ 2.50
49
0214204083
ref: 49
SCREW
0214204083
€ 1.50
50
1327737100
ref: 50
WASHER
1327737100
€ 2.00
51
1368338E00
ref: 51
HOSE,FUEL PUMP & CARBURETOR
€ 21.50
52
0940111408
ref: 52
CLIP
€ 2.50
49
0214204083
ref: 49
SCREW
0214204083
€ 1.50
50
1327737100
ref: 50
-13432-37100
WASHER
1327737100
€ 2.00
51
1368338E00
ref: 51
HOSE,FUEL PUMP & CARBURETOR
€ 21.50
52
0940113408
ref: 52
CLIP
€ 2.50
