HANDLE SWITCH (MODEL S/T/V)

VS800GL 1992 (N) (E01 E02 E04 E16 E17 E18 E21 E22 E25 E34 39 53)

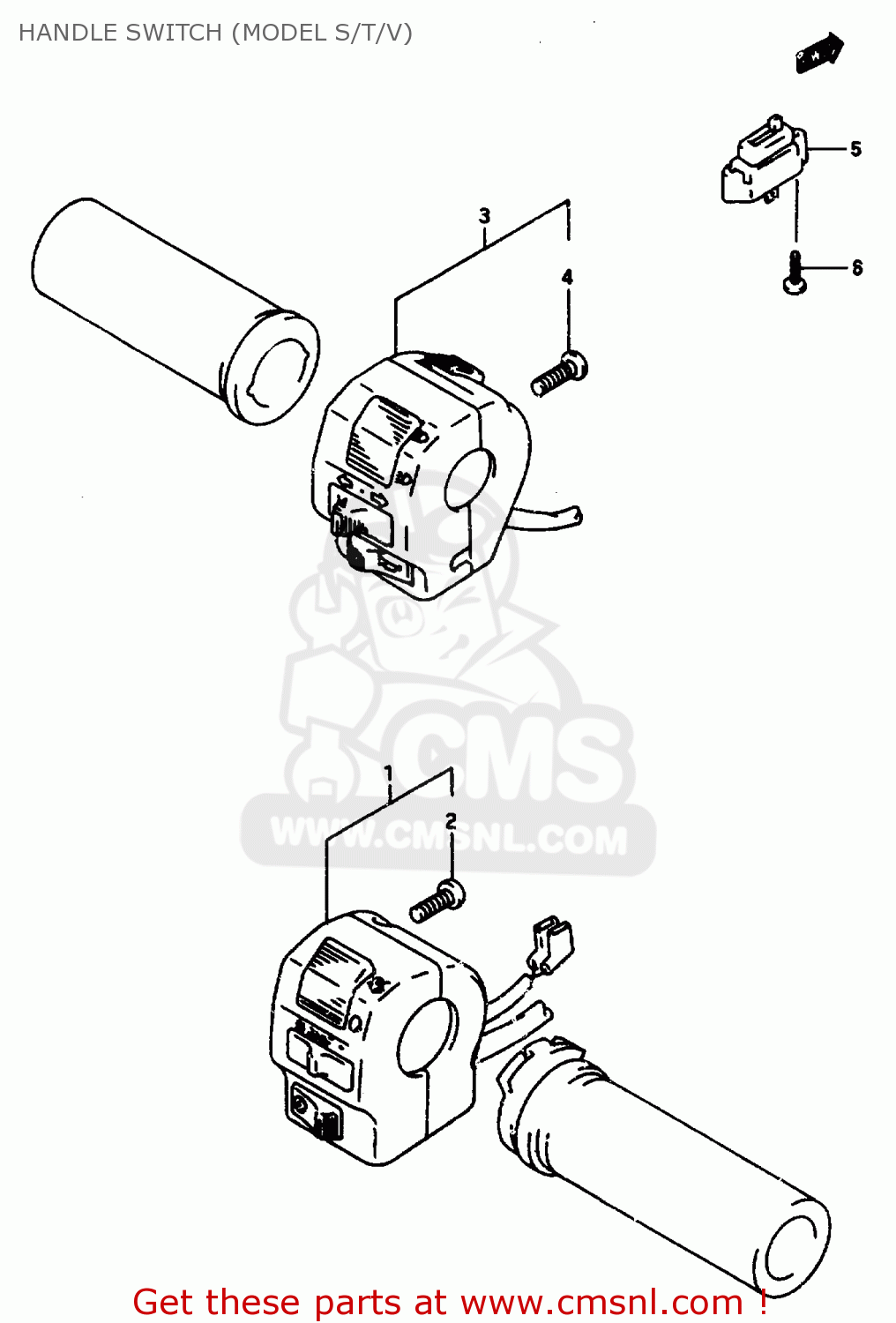

Handle switch (model s/t/v) diagram VS800GL 1992 (N) (E01 E02 E04 E16 E17 E18 E21 E22 E25 E34 39 53)

prices are in EUR

ref

part #

description

quantity

1-1

3720038AA0
ref: 1-1
MODEL S/T

SWITCH ASSY,HANDLE,R

€ 203.00

1-2

3720039AA0
ref: 1-2
MODEL V

SWITCH ASSY,HANDLE,R

€ 203.00

0211205167
ref: 2

SCREW

€ 2.50

3-1

3740038AB0
ref: 3-1
MODEL S/T

SWITCH,HANDLE,

€ 207.00

3-2

3740039AD0
ref: 3-2
MODEL V

SWITCH ASSY,HANDLE,L

€ 229.50

0211205167
ref: 4

SCREW

€ 2.50

3756038A00
ref: 5

SWITCH ASSY,CLUTCH

€ 20.00

0214203127
ref: 6

SCREW

€ 2.00
