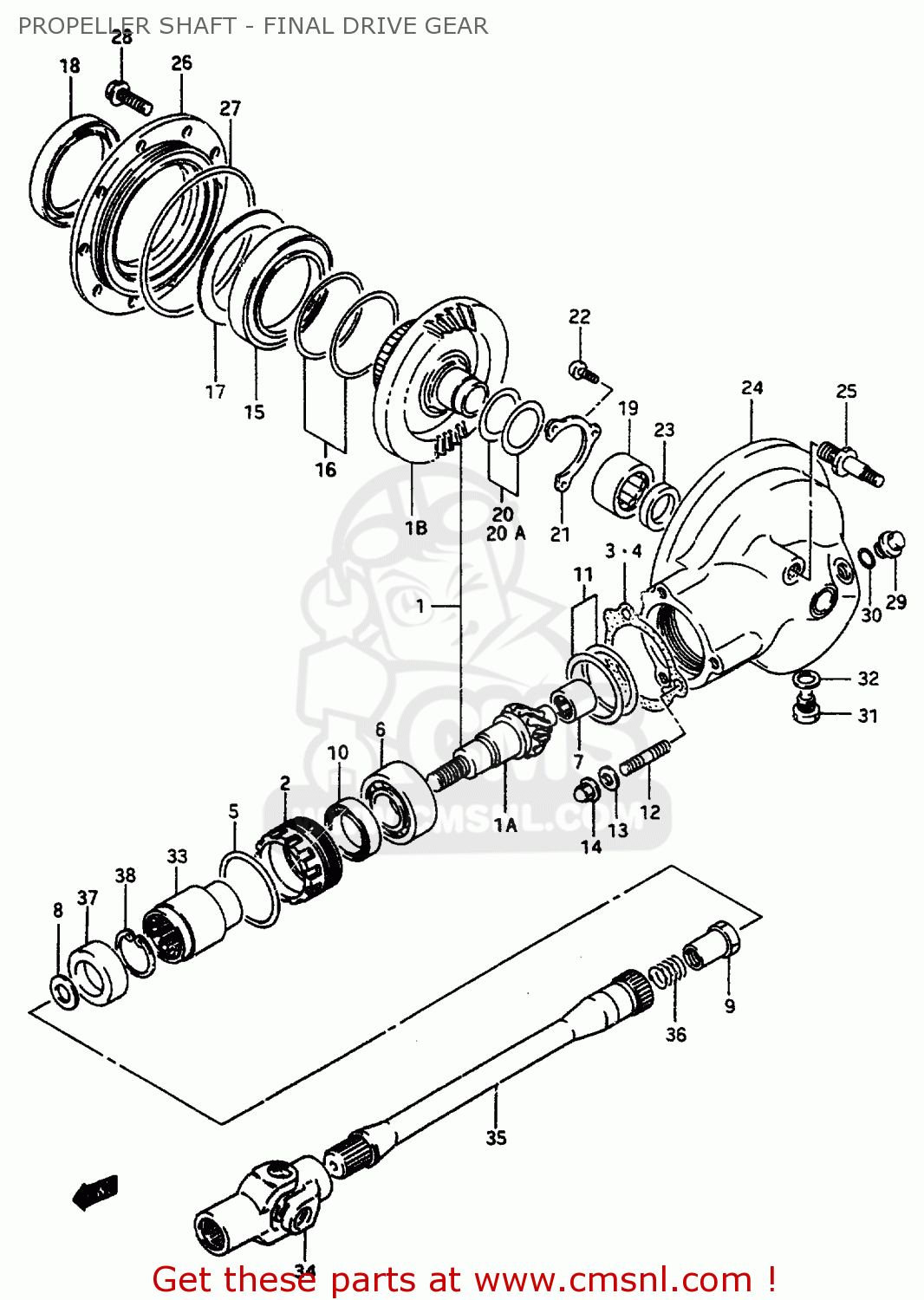

PROPELLER SHAFT - FINAL DRIVE GEAR - VS800GL 1992 (N) (E01 E02 E04 E16 E17 E18 E21 E22 E25 E34 39 53)

ref

part #

description

quantity

0

2730038835
ref: 0

GEAR & CASE SET,FINAL BEVEL

€ 2,424.00

1

2730045831
ref: 1
-27311-38A00 USED WI

GEAR & CASE SET,FINAL BEVEL

€ 219.50

1A

2731138A00
ref: 1A

GEAR,FINAL DRIVE BEVEL(NT:11)

€ 219.50

1B

2732045C01
ref: 1B

GEAR,FINAL DRIVEN BEVEL(NT:34)

€ 321.00

2

2731238A00
ref: 2

STOPPER,FINAL DRIVE BEARING

€ 38.50

3

2731338A00
ref: 3

PLATE,BEARING STOPPER

€ 4.00

4

2731338A10
ref: 4

PLATE,BEARING STOPPER

€ 4.00

5

0928062002
ref: 5

O RING(D:1.9,ID:61.6)

€ 3.00

6

0926730005
ref: 6

BEARING(30X62X23.8)

€ 58.00

7

0926317028
ref: 7

BEARING(17X32X16)

€ 26.50

8

0916016029
ref: 8

WASHER(16X29X4)

€ 6.00

9

0915916010
ref: 9

NUT

€ 9.00

10

0928338009
ref: 10

SEAL,OIL(38X54X6)

€ 11.50

11

2744538810
ref: 11
T:0.3/0.35/0.4/0.5/0

SHIM SET,FINAL DRIVE GEAR

€ 14.50

12

0910810095
ref: 12

BOLT,STUD

€ 4.00

13

0916410008
ref: 13

WASHER

€ 1.50

14

0915910026
ref: 14

NUT

€ 6.00

15

0926270001
ref: 15

BEARING(70X110X13)

€ 78.50

16

2732734810
ref: 16
T:0.35/0.4/0.5/0.6

SHIM SET,DRIVEN GEAR BEARING

€ 20.00

17

2732834200
ref: 17

PLATE,FINAL DRIVEN BRG OIL

€ 4.00

18

0928970001
ref: 18

SEAL,OIL(70X96X16)

€ 41.50

19

0926332007
ref: 19

BEARING(32X46X17.7)

€ 44.00

20

2732634820
ref: 20
T:1.05/1.1/1.2/1.25/

SHIM SET,FINAL DRIVEN GEAR

€ 12.50

20A

2732634810
ref: 20A
T:1.4/1.45/1.5

SHIM SET,FINAL DRIVE GEAR

€ 8.00

21

2732934200
ref: 21

RETAINER,FINAL DRIVEN GEAR BRG

€ 4.50

22-1

0211206128
ref: 22-1
MODEL N/P

SCREW 6X12

€ 2.00

22-2

0211206123
ref: 22-2
MODEL R/S/T/V

SCREW

€ 1.50

23

0928330028
ref: 23

SEAL,OIL(30X42X7)

€ 7.50

24

2745038A12
ref: 24

CASE,FINAL

€ 815.50

25

2748138A01
ref: 25

BOLT,STUD

€ 9.50

26

2746007A01
ref: 26

CASE,FINAL GEAR BEARING

€ 118.50

27

0928000015
ref: 27

O RING(D:3.5,ID:131.6)

€ 9.50

28-1

0151708258
ref: 28-1
MODEL N/P

BOLT

€ 2.50

28-2

0155008253
ref: 28-2
MODEL R/S/T/V

BOLT

€ 2.50

29

0924718001
ref: 29

PLUG

€ 8.00

30

0928018004
ref: 30

O RING(D:2.4,ID:17.8)

€ 5.50

31-1

0924714019
ref: 31-1
MODEL N/P/R/S/T

PLUG

€ 5.50

31-2

0924714001
ref: 31-2
MODEL V

PLUG

€ 5.00

32-1

0916814004
ref: 32-1
MODEL N/P/R

GASKET(14X19.2X2) (NAS)

€ 2.50

32-2

0916814002
ref: 32-2
MODEL S/T/V

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

33

2717238A00
ref: 33

COUPLING,FINAL DRIVE GEAR

€ 41.50

34

2710038A50
ref: 34

YOKE COMP,UNIVERSAL JOINT

€ 247.00

35

2715138A01
ref: 35

SHAFT,PROPELLER

€ 140.00

36

0944018019
ref: 36

SPRING

€ 3.00

37

0928330051
ref: 37

SEAL,OIL(28.4X48X15)

€ 9.00

38

0938140003
ref: 38

CIRCLIP

€ 5.00
