CRANKCASE

VS800GL 1996 (T) (E02 E04 E17 E18 E22 E25 E34 E37)

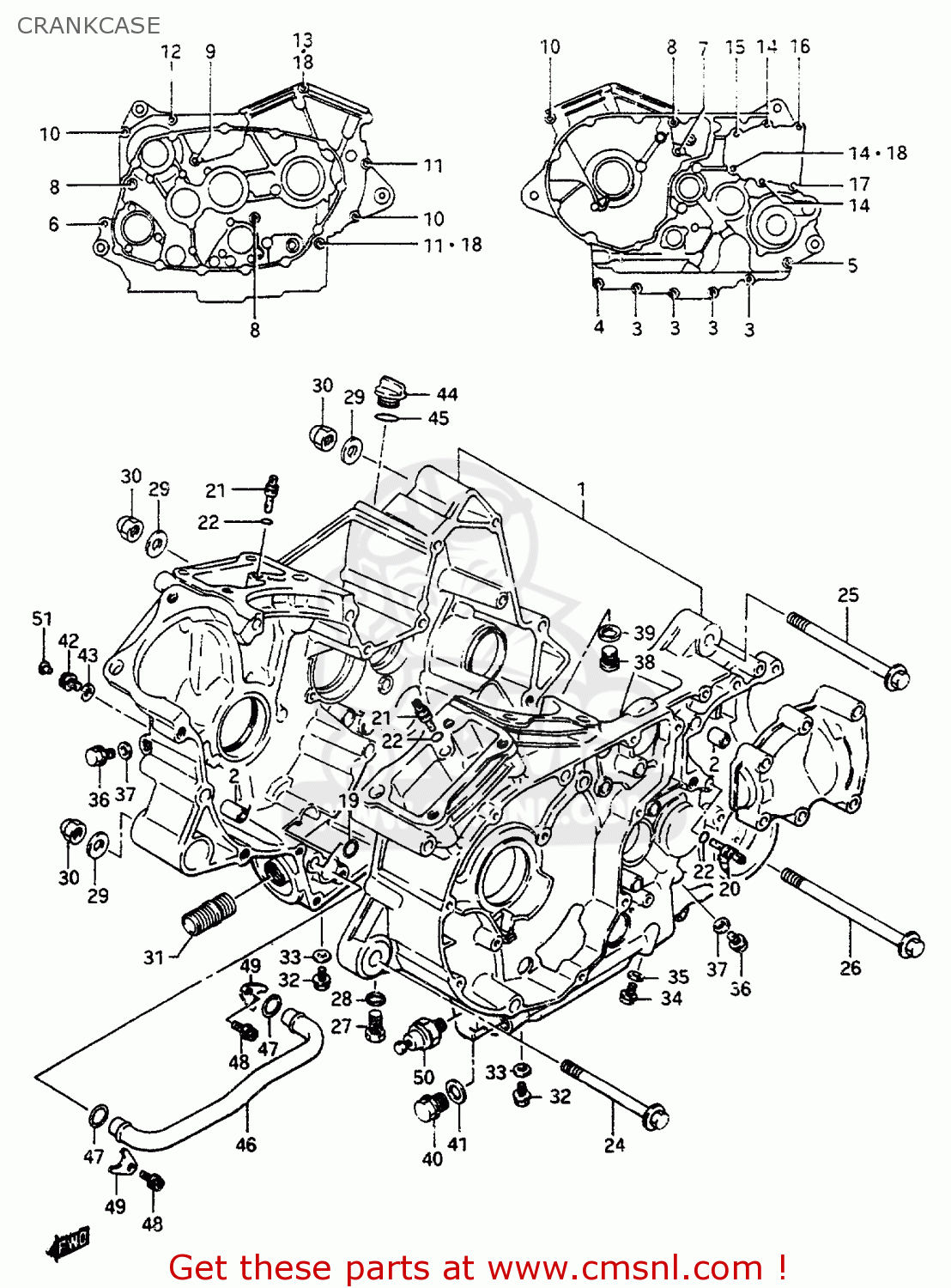

Crankcase diagram VS800GL 1996 (T) (E02 E04 E17 E18 E22 E25 E34 E37)

CRANKCASE VS800GL 1996 (T) (E02 E04 E17 E18 E22 E25 E34 E37)
CRANKCASE VS800GL 1996 (T) (E02 E04 E17 E18 E22 E25 E34 E37)
CRANKCASE VS800GL 1996 (T) (E02 E04 E17 E18 E22 E25 E34 E37)
prices are in EUR
ref
part #
description
quantity
1-1
1130038898
ref: 1-1
MODEL N/P/R
CRANKCASE SET
€ 1,809.50
1-2
1130138830
ref: 1-2
MODEL S/T/V
CRANKCASE SET
1130138830
€ 1,809.50
2
0920611017
ref: 2
PIN(8.4X11X20)
0920611017
€ 6.50
3
0155006407
ref: 3
BOLT
0155006407
€ 2.50
4
0155008357
ref: 4
BOLT
0155008357
€ 3.50
5
0155008357
ref: 5
BOLT
0155008357
€ 3.50
6
0155008607
ref: 6
BOLT
0155008607
€ 3.50
7-1
0155008757
ref: 7-1
MODEL N/P
BOLT
0155008757
€ 3.50
7-2
0155008753
ref: 7-2
MODEL R/S/T/V
BOLT
€ 3.50
8-1
0155008957
ref: 8-1
MODEL N/P
BOLT
0155008957
€ 3.50
8-2
0155008953
ref: 8-2
MODEL R/S/T/V
BOLT
0155008953
€ 3.50
9
0910308109
ref: 9
BOLT(8X120)
0910308109
€ 3.50
10
0910308164
ref: 10
BOLT(8X95)
0910308164
€ 3.50
11
0910308165
ref: 11
BOLT(8X105)
0910308165
€ 3.50
12
0910308166
ref: 12
BOLT(8X120)
€ 5.00
13
0910308167
ref: 13
BOLT(8X160)
0910308167
€ 6.00
14
0155008407
ref: 14
BOLT
0155008407
€ 3.50
15
0155008507
ref: 15
BOLT
0155008507
€ 3.50
16
0910308162
ref: 16
BOLT(8X55)
0910308162
€ 3.00
17
0910308163
ref: 17
BOLT(8X65)
0910308163
€ 4.50
18
0916808008
ref: 18
GASKET 8.2X14X1 (NAS)
0916808008
€ 1.00
19
0928012009
ref: 19
O RING(D:1.9,ID:12.6)
0928012009
€ 2.50
20
0949320014
ref: 20
JET,OIL GALLERY
0949320014
€ 8.00
21
0949328010
ref: 21
JET,AIR(14)
0949328010
€ 10.50
22
0928004004
ref: 22
O RING(D:1.2,ID:4)
0928004004
€ 2.00
23-1
0916048001
ref: 23-1
SEE ILLUSTRATION ON
WASHER(48.1X64X1.94)
0916048001
€ 18.50
23-2
0916048002
ref: 23-2
WASHER(48.1X64X1.96)
0916048002
€ 17.00
23-3
0916048003
ref: 23-3
WASHER(48.1X64X1.99)
0916048003
€ 17.00
23-4
0916048004
ref: 23-4
WASHER(48.1X64X2.01)
0916048004
€ 17.00
23-5
0916048005
ref: 23-5
WASHER(48.1X64X2.04)
0916048005
€ 17.00
23-6
0916048006
ref: 23-6
WASHER(48.1X64X2.06)
0916048006
€ 17.00
23-7
0916048007
ref: 23-7
WASHER(48.1X64X2.09)
0916048007
€ 17.00
23-8
0916048008
ref: 23-8
WASHER(48.1X64X2.11)
0916048008
€ 17.00
23-9
0916048009
ref: 23-9
WASHER(48.1X64X2.14)
0916048009
€ 17.00
23-10
0916048010
ref: 23-10
WASHER(48.1X64X2.16)
0916048010
€ 17.00
24
0910310141
ref: 24
BOLT(10X125)
0910310141
€ 6.00
25-1
0910310237
ref: 25-1
MODEL N/P/R
BOLT(10X130)
0910310237
€ 5.50
25-2
0910310122
ref: 25-2
MODEL S/T/V
BOLT(10X130)
0910310122
€ 9.50
26
0910310078
ref: 26
BOLT(10X150)
0910310078
€ 8.50
27-1
0155012207
ref: 27-1
MODEL N/P/R/S
BOLT
0155012207
€ 3.00
27-2
0155012203
ref: 27-2
MODEL T/V
BOLT
€ 3.00
28
0916812002
ref: 28
GASKET(12.1X16.2X3.7) (NAS)
0916812002
€ 2.00
29-1
0832211104
ref: 29-1
MODEL N/P
WASHER 10MM
0832211104
€ 2.50
29-2
0832201107
ref: 29-2
MODEL R/S
WASHER
0832201107
€ 2.50
29-3
0832201103
ref: 29-3
MODEL T/V
WASHER
0832201103
€ 2.50
30
0915910052
ref: 30
NUT
0915910052
€ 8.50
31
1659106B00
ref: 31
UNION,OIL STAND
1659106B00
€ 6.00
32
0155008127
ref: 32
BOLT
0155008127
€ 3.50
33
0916808015
ref: 33
GASKET(8.2X14X1).6 (NAS)
0916808015
€ 2.50
34
0924710008
ref: 34
PLUG(10X12)
0924710008
€ 3.00
35
0916810002
ref: 35
GASKET(10X14X3.6) (NAS)
0916810002
€ 2.00
36
0155006107
ref: 36
BOLT
0155006107
€ 2.50
37-1
0916806023
ref: 37-1
MODEL N/P/R
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
37-2
0916806024
ref: 37-2
MODEL S/T/V
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
38
0924816008
ref: 38
PLUG
0924816008
€ 4.00
39
0916816002
ref: 39
GASKET(16X22X2) (NAS)
0916816002
€ 2.00
40
0924714026
ref: 40
PLUG(14X12)
0924714026
€ 3.50
41-1
0916814004
ref: 41-1
MODEL N/P/R
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
41-2
0916814002
ref: 41-2
MODEL S/T/V
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
42
0712008127
ref: 42
BOLT
€ 2.50
43
0916808015
ref: 43
GASKET(8.2X14X1).6 (NAS)
0916808015
€ 2.50
44
0925920007
ref: 44
-09259-20009
PLUG(20X10)
0925920007
€ 6.50
45
0928017003
ref: 45
O RING(D:3.1,ID:16.8)
0928017003
€ 2.00
46
1145138A00
ref: 46
PIPE,OIL GALLERY
€ 13.50
47
0928015008
ref: 47
O RING(D:3.1,ID:14.8)
0928015008
€ 1.50
48-1
0712006127
ref: 48-1
MODEL N/P
BOLT
0712006127
€ 3.00
48-2
0712006123
ref: 48-2
MODEL R/S/T/V
BOLT
€ 3.50
49
1146138A00
ref: 49
CLAMP,OIL PIPE
€ 1.50
50
3782033D00
ref: 50
-37820-33200
SWITCH ASSEMBLY,OIL PRESSURE
€ 29.00
51
0925006011
ref: 51
CAP(OD:11)
0925006011
€ 2.50
