Buy Suzuki VS Parts Online


FOOTREST

VS800GL 1996 (T) (E02 E04 E17 E18 E22 E25 E34 E37)

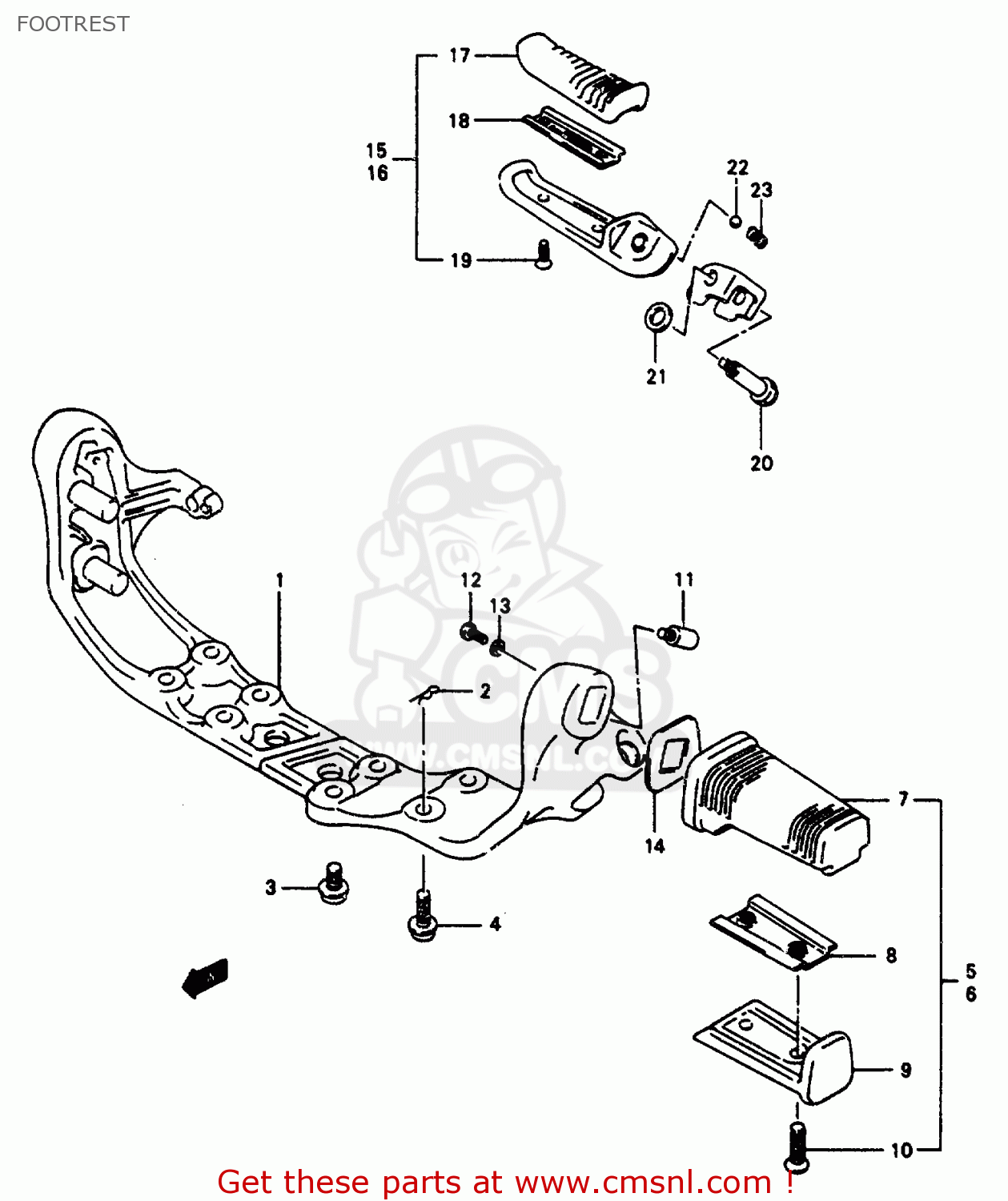

Footrest diagram VS800GL 1996 (T) (E02 E04 E17 E18 E22 E25 E34 E37)

FOOTREST VS800GL 1996 (T) (E02 E04 E17 E18 E22 E25 E34 E37)
FOOTREST VS800GL 1996 (T) (E02 E04 E17 E18 E22 E25 E34 E37)
FOOTREST VS800GL 1996 (T) (E02 E04 E17 E18 E22 E25 E34 E37)
prices are in EUR
ref
part #
description
quantity
1-1
4351038A42
ref: 1-1
MODEL N/P/R/S
BRACKET COMP,FRONT FOOTREST
€ 968.00
1-2
4351038E00
ref: 1-2
MODEL T
BRACKET,FRONT FOOTREST
€ 968.00
1-3
4351038E01
ref: 1-3
MODEL V
BRACKET,FR FOOTREST
4351038E01
€ 968.00
2
0938508005
ref: 2
SNAP
0938508005
€ 2.00
3-1
0712008208
ref: 3-1
MODEL N/P/R
BOLT
€ 3.00
3-2
0712008203
ref: 3-2
MODEL S/T/V
BOLT
0712008203
€ 3.00
4
0910608064
ref: 4
BOLT(8X25)
0910608064
€ 4.50
5-1
4350138B10
ref: 5-1
MODEL N/P/R/S
FOOTREST ASSEMBLY,FRONT,RIGHT
4350138B10
€ 97.00
5-2
4350138B11
ref: 5-2
MODEL T/V
FOOTREST ASSY,FR,R
4350138B11
€ 97.00
6-1
4350238B10
ref: 6-1
MODEL N/P/R/S
FOOTREST ASSEMBLY,FRONT,LEFT
4350238B10
€ 97.00
6-2
4350238B11
ref: 6-2
MODEL T/V
FOOTREST ASSY,FR,L
4350238B11
€ 97.00
7
4355138B00
ref: 7
RUBBER,FR FOOTREST
4355138B00
€ 12.50
8
4358038B10
ref: 8
PLATE,RUBBER STOPPER
4358038B10
€ 8.50
9-1
4358538B10
ref: 9-1
MODEL N/P/R/S
COVER,FRONT FOOTREST
4358538B10
€ 45.50
9-2
4358538B11
ref: 9-2
MODEL T/V
COVER,FR FOOTREST
4358538B11
€ 45.50
10
0912705018
ref: 10
SCREW(5X20)
0912705018
€ 2.50
11
4364138B00
ref: 11
BOLT,FRONT FOOTREST
4364138B00
€ 4.50
12-1
0150005127
ref: 12-1
MODEL N/P/R
BOLT
0150005127
€ 2.00
12-2
0157005123
ref: 12-2
MODEL S
BOLT
0157005123
€ 2.00
12-3
0211235123
ref: 12-3
MODEL T/V
SCREW
0211235123
€ 1.50
13
0832101057
ref: 13
MODEL N/P/R
WASHER,LOCK
0832101057
€ 2.00
14-1
4354638B00
ref: 14-1
MODEL N/P/R
WASHER,FRONT FOOTREST
4354638B00
€ 5.00
14-2
4354638B01
ref: 14-2
MODEL S/T/V
WASHER,FR FOOTREST
4354638B01
€ 5.00
15
4360038A01
ref: 15
FOOTREST ASSY RH
4360038A01
€ 39.50
16
4370038A01
ref: 16
FOOTREST ASSY PILLION LH
4370038A01
€ 35.50
17
4361238A00
ref: 17
RUBBER,PILLION FOOTREST
4361238A00
€ 12.00
18
4363238A00
ref: 18
PLATE,RUBBER STOPPER
4363238A00
€ 4.00
19
0912705017
ref: 19
SCREW(5X16)
0912705017
€ 2.00
20
0911106050
ref: 20
BOLT(6X34.5)
0911106050
€ 5.00
21
0822108164
ref: 21
SHIM
0822108164
€ 1.50
22
0611107004
ref: 22
BALL
0611107004
€ 1.50
23
0944005031
ref: 23
SPRING
0944005031
€ 1.50
