REAR FENDER (MODEL T/V)

VS800GL 1996 (T) (E02 E04 E17 E18 E22 E25 E34 E37)

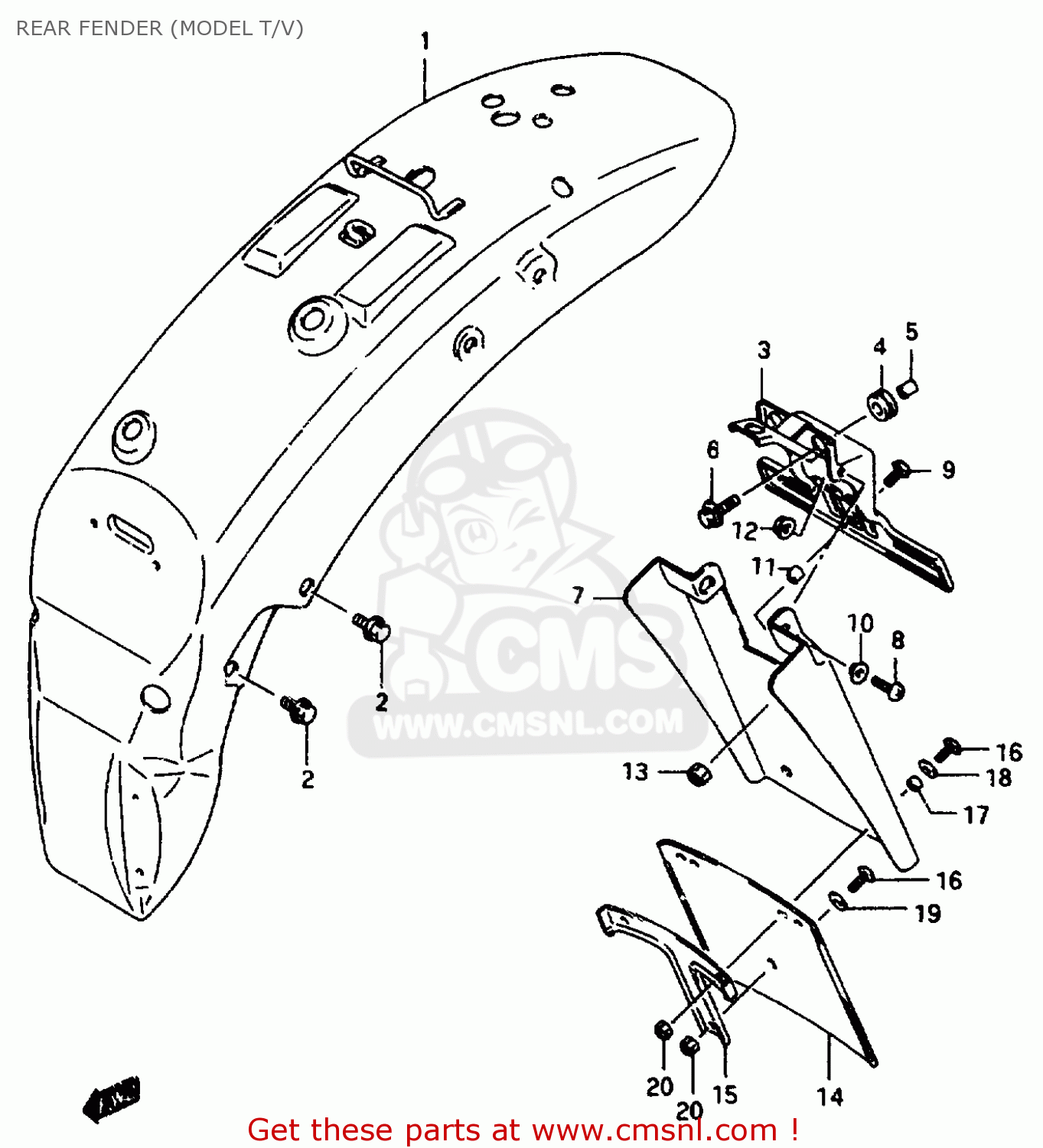

Rear fender (model t/v) diagram VS800GL 1996 (T) (E02 E04 E17 E18 E22 E25 E34 E37)

REAR FENDER (MODEL T/V) VS800GL 1996 (T) (E02 E04 E17 E18 E22 E25 E34 E37)
REAR FENDER (MODEL T/V) VS800GL 1996 (T) (E02 E04 E17 E18 E22 E25 E34 E37)
REAR FENDER (MODEL T/V) VS800GL 1996 (T) (E02 E04 E17 E18 E22 E25 E34 E37)
prices are in EUR
ref
part #
description
quantity
1-1
6311038A0020F
ref: 1-1
MODEL T
FENDER,RR
6311038A0020F
€ 222.50
1-2
6311038A001ZV
ref: 1-2
MODEL T
FENDER COMP,REAR
€ 242.50
1-3
6311038A00Y0N
ref: 1-3
MODEL V
FENDER COMP,REAR
€ 206.00
1-4
6311038A0019A
ref: 1-4
MODEL V
FENDER,RR
6311038A0019A
€ 197.50
1-5
6311038A0033J
ref: 1-5
MODEL V
FENDER,RR
6311038A0033J
€ 249.00
1-6
6311038A3020F
ref: 1-6
MODEL T E22
FENDER, REAR (MAROON)
€ 0.00
1-7
6311038A301ZV
ref: 1-7
MODEL T E22
FENDER, REAR (GREEN)
€ 0.00
2
0155006103
ref: 2
BOLT
0155006103
€ 2.50
3
3592038A00
ref: 3
BRACKET,LICENSE LAMP
3592038A00
€ 46.00
4
3576538A30
ref: 4
CUSHION
3576538A30
€ 4.00
5
3576638A00
ref: 5
SPACER
3576638A00
€ 3.00
6
0911606167
ref: 6
BOLT(6X20)
0911606167
€ 2.00
7-1
6331138A20
ref: 7-1
E17,E22
EXTENSION,RR FENDER
6331138A20
€ 23.50
7-2
6331138A10
ref: 7-2
E18
EXTENSION, REAR FENDER
6331138A10
€ 17.50
8
0214206163
ref: 8
E17,E18,E22
SCREW
0214206163
€ 2.50
9
0211206163
ref: 9
E17,E18,E22
SCREW 6X16
0211206163
€ 2.00
10
0916906037
ref: 10
E17,E18,E22
WASHER
0916906037
€ 6.50
11
0918006092
ref: 11
E17,E18,E22
SPACER(6.2X8.3X6.1)
0918006092
€ 4.00
12
0831620063
ref: 12
E17,E18,E22
NUT
0831620063
€ 2.00
13
0831931063
ref: 13
E17,E18,E22
NUT
0831931063
€ 2.50
14
6333243520
ref: 14
E18
MUD FLAP, REAR FENDER
€ 12.50
15
6331238A00
ref: 15
E18
PLATE, MUD FLAP
€ 0.00
16
0214205123
ref: 16
E18
SCREW 5X12
0214205123
€ 1.50
17
0918005015
ref: 17
E18
SPACER (5.5X8X4)
0918005015
€ 3.00
18
0832201053
ref: 18
E18
WASHER
0832201053
€ 2.50
19
0916005037
ref: 19
E18
WASHER(5.5X16X1.2)
0916005037
€ 1.50
20
0831921055
ref: 20
E18
NUT 8MM
0831921055
€ 1.50
