CYLINDER

VS800GL 1996 (T) (E02 E04 E17 E18 E22 E25 E34 E37)

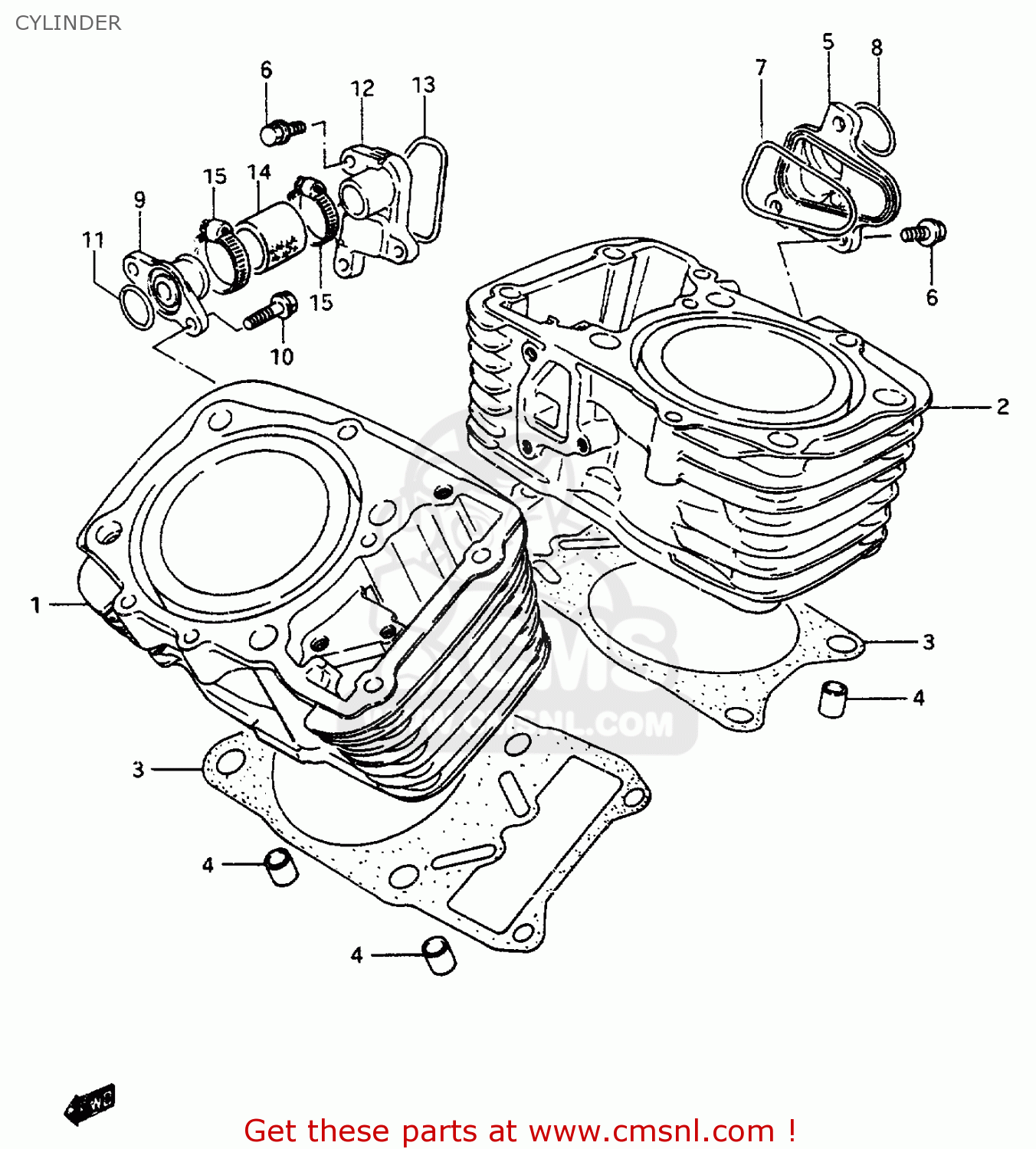

Cylinder diagram VS800GL 1996 (T) (E02 E04 E17 E18 E22 E25 E34 E37)

CYLINDER VS800GL 1996 (T) (E02 E04 E17 E18 E22 E25 E34 E37)

CYLINDER VS800GL 1996 (T) (E02 E04 E17 E18 E22 E25 E34 E37)

prices are in EUR

ref

part #

description

quantity

1-1

1121039A00
ref: 1-1
MODEL N/P

CYLINDER COMP,FRONT

€ 481.00

1-2

1121039A01
ref: 1-2
MODEL R/S/T/V

CYLINDER,FR

€ 481.00

2-1

1122039A00
ref: 2-1
MODEL N/P

CYLINDER COMP,REAR

€ 530.50

2-2

1122039A01
ref: 2-2
MODEL R/S/T/V

CYLINDER

€ 530.50

3-1

1124145C20
ref: 3-1

GASKET,CYLINDER (NAS)

€ 16.50

3-2

1124145C10
ref: 3-2
E18,E39

GASKET,CYLINDER

€ 21.50

4

0421113189
ref: 4

PIN

€ 2.50

5

1123745C10
ref: 5

CHAMBER,WATER,INLET

€ 28.00

6

0154706207
ref: 6

BOLT

€ 2.50

7

1124738A00
ref: 7

O RING,INLET WATER CHAMBER

€ 3.00

8

0928024007
ref: 8

O RING(D:2.3,ID:24.4)

€ 2.00

9

1123545C10
ref: 9

UNION,WATER INLET

€ 16.00

10

0154706167
ref: 10

BOLT

€ 2.00

11

0928016005
ref: 11

O RING(D:2.4,ID:15.8)

€ 1.50

12

1123645C10
ref: 12

CHAMBER,WATER OUTLET

€ 26.50

13

1124638A00
ref: 13

O RING,OUTLET WATER CHAMBER

€ 4.50

14

1785328C20
ref: 14

HOSE,RADIATOR JOINT NO.1

€ 17.50

15

0940228511
ref: 15

CLAMP

€ 8.50
