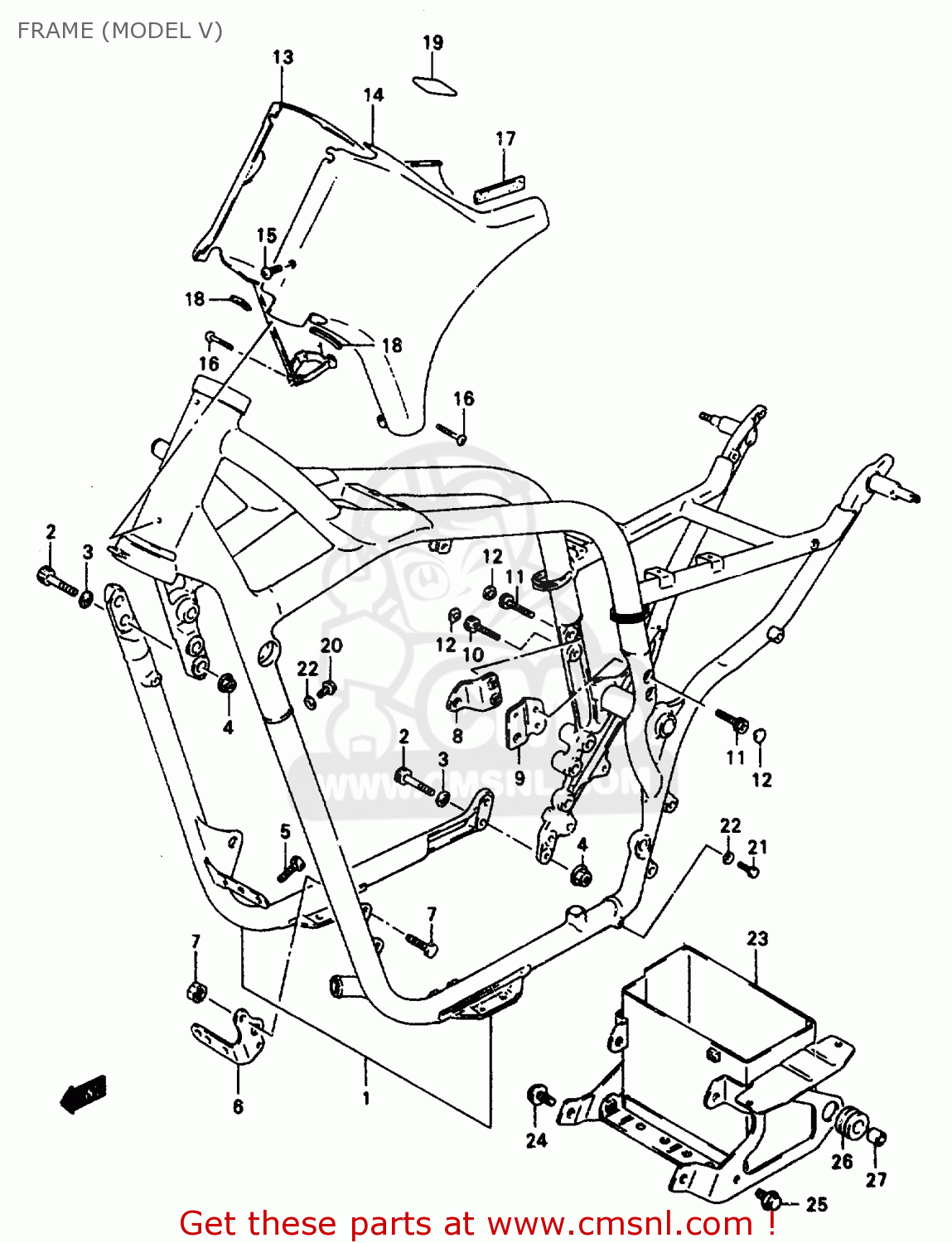

FRAME (MODEL V)

ref

part #

description

quantity

1-1

4110139813Y0N
ref: 1-1

FRAME SET

€ 940.50

1-2

411013981319A
ref: 1-2

FRAME SET(RED)

€ 959.00

1-3

411013981333J
ref: 1-3

FRAME SET(BLACK)

€ 940.50

1-4

4110139823Y0N
ref: 1-4
E18

FRAME SET (BLUE)

€ 1,906.50

1-5

411013982319A
ref: 1-5
E18

FRAME SET (RED)

€ 2.00

1-6

411013982333J
ref: 1-6
E18

FRAME SET (BLACK)

€ 1,906.50

2

0910610019
ref: 2

BOLT(10X33)

€ 4.00

3

0916410010
ref: 3

WASHER

€ 6.50

4

0831931105
ref: 4

NUT 10MM

€ 3.00

5

0155008203
ref: 5

BOLT

€ 3.00

6

4192038A00019
ref: 6

PLATE,ENGINE MOUNT NO.1,L

€ 11.00

7

0157008163
ref: 7

BOLT, UPPER

€ 2.00

8

4195038A11019
ref: 8

PLATE,ENGINE MOUNT NO.3,R

€ 32.50

9

4196038A10019
ref: 9

PLATE,ENGINE MOUNT NO.3,L

€ 26.50

10

0713008303
ref: 10

BOLT

€ 3.00

11

0910608070
ref: 11

BOLT(8X30)

€ 5.50

12

0925006004
ref: 12

CAP(OD:14.5)

€ 1.50

13-1

4735038A0119A
ref: 13-1

COVER,FRAME HEAD,RIGHT

€ 269.00

13-2

4735038A01Y0N
ref: 13-2

COVER COMP,FRAME HEAD

€ 269.00

13-3

4735038A0133J
ref: 13-3

COVER,FRAME HEAD,R(BLACK)

€ 269.00

14-1

4736038A0119A
ref: 14-1

COVER,FRAME HEAD,LEFT

€ 267.00

14-2

4736038A01Y0N
ref: 14-2

COVER COMP,FRAME HEAD

€ 267.00

14-3

4736038A0133J
ref: 14-3

COVER,FRAME HEAD,LEFT

€ 267.00

15

0214206103
ref: 15

SCREW 6X10

€ 2.00

16

0211204253
ref: 16

SCREW

€ 2.00

17

3365207D00
ref: 17

PROTECTOR(80X80X2)

€ 4.50

18

6824104X50300
ref: 18

MOLDING

€ 6.00

19

4735838A00
ref: 19

TAPE,FRAME HEAD COVER

€ 7.00

20

0936006015
ref: 20

UNION

€ 3.00

21

0155006103
ref: 21

BOLT

€ 2.50

22

0916806004
ref: 22

GASKET(6.2X11X1).2 (NAS)

€ 1.50

23

4154038A12
ref: 23

HOLDER,BATTERY

€ 103.50

24

0155010163
ref: 24

BOLT

€ 2.50

25

0155006163
ref: 25

BOLT

€ 2.50

26

0932012031
ref: 26

CUSHION

€ 3.00

27

0930108009
ref: 27

BUSH

€ 6.50

10-1

4196038A1003F
ref: 10-1
MODEL N

PLATE COMP,ENGINE MOUNTING

€ 26.50

10-2

4196038A1019A
ref: 10-2
MODEL P/R

PLATE,ENGINE MOUNTING NO

€ 26.50

10-3

4196038A100CG
ref: 10-3
MODEL P

PLATE,ENGINE MOUNTING NO

€ 26.50

10-4

4196038A1033J
ref: 10-4
MODEL R/S

PLATE,MOUNTING NO.3,LEFT (BLACK)

€ 26.50

10-5

4196038A1020F
ref: 10-5
MODEL S

PLATE COMP,ENGINE MOUNTING

€ 26.50

10-6

4196038A10019
ref: 10-6
MODEL T

PLATE,ENGINE MOUNT NO.3,L

€ 26.50

11-1

0910608063
ref: 11-1
MODEL N/P/R

BOLT 8X30

€ 3.00

11-2

0713008303
ref: 11-2
MODEL S/T

BOLT

€ 3.00

12

0910608070
ref: 12

BOLT(8X30)

€ 5.50

13

0925006004
ref: 13

CAP(OD:14.5)

€ 1.50

14-1

4735038A0003F
ref: 14-1
MODEL N

COVER,FRAME HEAD,RIGHT

€ 269.00

14-2

4735038A0019A
ref: 14-2
MODEL N/P

COVER,FRAME HEAD,RIGHT

€ 269.00

14-3

4735038A0119A
ref: 14-3
MODEL R

COVER,FRAME HEAD,RIGHT

€ 269.00

14-4

4735038A000CG
ref: 14-4
MODEL P

COVER,FRAME HEAD,RIGHT

€ 269.00

14-5

4735038A0133J
ref: 14-5
MODEL R/S

COVER,FRAME HEAD,R(BLACK)

€ 269.00

14-6

4735038A0120F
ref: 14-6
MODEL S/T

COVER COMP,FRAME HEAD

€ 134.00

14-7

4735038A011ZV
ref: 14-7
MODEL T

COVER,FRAME HEAD,R(GREEN)

€ 118.50

15-1

4736038A0003F
ref: 15-1
MODEL N

COVER COMP,FRAME HEAD

€ 267.00

15-2

4736038A0019A
ref: 15-2
MODEL N/P

COVER,FRAME HEAD,LEFT

€ 267.00

15-3

4736038A0119A
ref: 15-3
MODEL R

COVER,FRAME HEAD,LEFT

€ 267.00

15-4

4736038A000CG
ref: 15-4
MODEL P

COVER,FRAME HEAD,LEFT

€ 267.00

15-5

4736038A0133J
ref: 15-5
MODEL R/S

COVER,FRAME HEAD,LEFT

€ 267.00

15-6

4736038A0120F
ref: 15-6
MODEL S/T

COVER COMP,FRAME HEAD

€ 121.00

15-7

4736038A011ZV
ref: 15-7
MODEL T

COVER COMP,FRAME HEAD

€ 150.00

16-1

0214205104
ref: 16-1
MODEL N/P

SCREW 5X10

€ 2.50

16-2

0214206103
ref: 16-2
MODEL R/S/T

SCREW 6X10

€ 2.00

17-1

0211204254
ref: 17-1
MODEL N/P

SCREW

€ 2.00

17-2

0211204253
ref: 17-2
MODEL R/S/T

SCREW

€ 2.00

18-1

3365238A10
ref: 18-1
MODEL N/P/R

PROTECTOR(20X90)X2

€ 4.50

18-2

3365207D00
ref: 18-2
MODEL S/T

PROTECTOR(80X80X2)

€ 4.50

19-1

6824138A10
ref: 19-1
MODEL N/P/R/S

MOLDING,FUEL TANK

€ 6.00

19-2

6824138A10
ref: 19-2
MODEL T

MOLDING,FUEL TANK

€ 6.00

20

4735838A00
ref: 20

TAPE,FRAME HEAD COVER

€ 7.00

21

0936006015
ref: 21

UNION

€ 3.00

22-1

0151706105
ref: 22-1
MODEL N/P/R/S

BOLT

€ 2.50

22-2

0155006103
ref: 22-2
MODEL T

BOLT

€ 2.50

23

0916806004
ref: 23

GASKET(6.2X11X1).2 (NAS)

€ 1.50

24

4154038A11
ref: 24

HOLDER,BATTERY

€ 103.50

25-1

0151710165
ref: 25-1
MODEL N/P

BOLT

€ 2.50

25-2

0155010163
ref: 25-2
MODEL R/S/T

BOLT

€ 2.50

26-1

0151706164
ref: 26-1
MODEL N/P

BOLT

€ 2.50

26-2

0155006163
ref: 26-2
MODEL R/S/T

BOLT

€ 2.50

27

0932012031
ref: 27

CUSHION

€ 3.00

28-1

0918008001
ref: 28-1
MODEL N/P/R/S

SPACER (8.8X12X11)

€ 2.00

28-2

0930108009
ref: 28-2
MODEL T

BUSH

€ 6.50
