CYLINDER HEAD (REAR)

VS800GL 1997 (V) (E02 E04 E17 E18 E22 E25 E34)

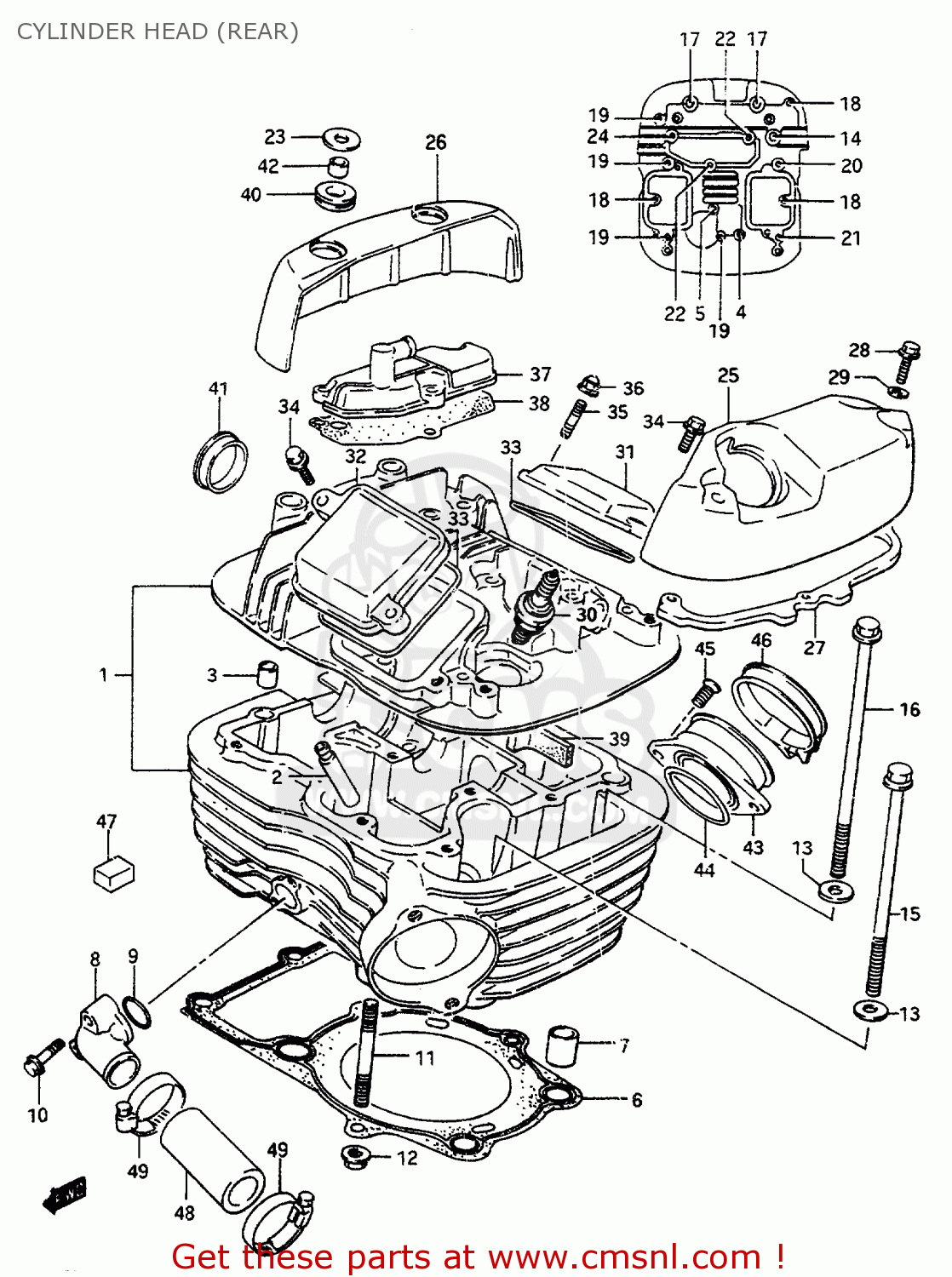

Cylinder head (rear) diagram VS800GL 1997 (V) (E02 E04 E17 E18 E22 E25 E34)

CYLINDER HEAD (REAR) VS800GL 1997 (V) (E02 E04 E17 E18 E22 E25 E34)
CYLINDER HEAD (REAR) VS800GL 1997 (V) (E02 E04 E17 E18 E22 E25 E34)
CYLINDER HEAD (REAR) VS800GL 1997 (V) (E02 E04 E17 E18 E22 E25 E34)
prices are in EUR
ref
part #
description
quantity
1-1
1110338A02
ref: 1-1
HEAD ASSY,CYLINDER RR
1110338A02
€ 619.50
1-2
1110339A10
ref: 1-2
MODEL N/P/R/S E18,E3
HEAD ASSY, CYLINDER REAR
€ 804.00
1-3
1110339A11
ref: 1-3
MODEL T/V E18
HEAD ASSY,CYLINDER RR
€ 804.00
2
1111538A71
ref: 2
GUIDE,VALVE
1111538A71
€ 18.50
3
0920611004
ref: 3
PIN(8.4X11X14)
0920611004
€ 6.00
4
0910306101
ref: 4
BOLT(6X50)
0910306101
€ 2.00
5
0910306102
ref: 5
BOLT(6X55)
0910306102
€ 2.50
6
1114245C00
ref: 6
GASKET,CYLINDER HEAD RR (NAS)
1114245C00
€ 54.00
7
0421113189
ref: 7
PIN
0421113189
€ 2.50
8
1116945C10
ref: 8
-11169-38A00
UNION,CYLINDER HEAD WATER
€ 28.50
9-1
0928018004
ref: 9-1
MODEL N/P/R
O RING(D:2.4,ID:17.8)
0928018004
€ 5.50
9-2
0928018010
ref: 9-2
MODEL S/T/V
O-RING (D:2.4 ID:17.8)
0928018010
€ 5.50
10-1
0154706257
ref: 10-1
MODEL N/P/R
BOLT
0154706257
€ 2.50
10-2
0154706253
ref: 10-2
MODEL S/T/V
SCREW
0154706253
€ 2.50
11
0910808144
ref: 11
BOLT,STUD
0910808144
€ 4.50
12
0831610087
ref: 12
NUT
0831610087
€ 2.50
13
0916010060
ref: 13
WASHER (10.5X22X2.3)
0916010060
€ 2.50
14
0910308040
ref: 14
BOLT(8X140)
0910308040
€ 4.00
15
0910310133
ref: 15
BOLT(10X155)
0910310133
€ 7.50
16
0910310134
ref: 16
BOLT(10X165)
0910310134
€ 7.50
17
0910308180
ref: 17
BOLT(8X245)
0910308180
€ 13.00
18
0155006257
ref: 18
BOLT
0155006257
€ 2.50
19
0155006307
ref: 19
BOLT
0155006307
€ 2.00
20
0712006307
ref: 20
BOLT
0712006307
€ 2.50
21
0155006407
ref: 21
BOLT
0155006407
€ 2.50
22
0910306102
ref: 22
BOLT(6X55)
0910306102
€ 2.50
23
0916008098
ref: 23
WASHER (8.2X24X1.6)
€ 2.00
24
0155006207
ref: 24
BOLT
0155006207
€ 2.50
25
1117338A03
ref: 25
CAP,CYLINDER HEAD COVER RR,L
1117338A03
€ 68.50
26
1117438A02
ref: 26
CAP,CYLINDER HEAD COVER RR,R
1117438A02
€ 75.00
27
1127338A01
ref: 27
CUSHION,RR,L CAP
1127338A01
€ 10.50
28-1
0120406357
ref: 28-1
MODEL N/P/R
BOLT
0120406357
€ 1.50
28-2
0121406357
ref: 28-2
MODEL S/T/V
BOLT
€ 3.00
29
0832201067
ref: 29
MODEL N/P/R
WASHER
0832201067
€ 2.00
30-1
0948200334
ref: 30-1
PLUG,SPARK(DPR8EA-9)
€ 4.00
30-2
0948200335111
ref: 30-2
SPARK PLUG X24EPR-U9
€ 4.00
30-3
0948200354
ref: 30-3
OPT
PLUG,SPARK(DPR7EA-9)
0948200354
€ 4.00
30-4
0948200355111
ref: 30-4
OPT
SPARK PLUG X22EPR-U9
€ 4.00
30-5
0948200330
ref: 30-5
OPT
PLUG,SPARK(DPR9EA-9)
0948200330
€ 4.00
30-6
0948200331111
ref: 30-6
OPT
SPARK PLUG X27EPR-U9
0948200331111
€ 4.00
31-1
1117538A01
ref: 31-1
MODEL N
CAP,INSPECTION
€ 14.50
31-2
1117538A10
ref: 31-2
MODEL P/R/S/T/V
CAP,INSP.INT
1117538A10
€ 14.50
32-1
1117638A01
ref: 32-1
MODEL N
CAP,INSPECTION,EXHAUST
€ 15.00
32-2
1117638A10
ref: 32-2
MODEL P/R/S/T/V
CAP,INSPECTION,EXHAUST
€ 14.50
33
1117738A00
ref: 33
GASKET,INSPECTION CAP (NAS)
1117738A00
€ 5.00
34
0154706207
ref: 34
BOLT
0154706207
€ 2.50
35
0142106168
ref: 35
STUD 6X16
0142106168
€ 2.00
36
0831320067
ref: 36
NUT
0831320067
€ 2.00
37
1118638A02
ref: 37
-11186-38A01
COVER,BREATHER
1118638A02
€ 13.50
38
1118738A02H17
ref: 38
GASKET,BREATHER COVER (NAS)
1118738A02H17
€ 12.00
39
1117938A00
ref: 39
PLATE,HEAD COVER RR
1117938A00
€ 7.50
40
0932013015
ref: 40
CUSHION
0932013015
€ 3.00
41
0924130004
ref: 41
PLUG(OD:30)
0924130004
€ 6.50
42
0930108007
ref: 42
BUSH
0930108007
€ 4.00
43
1312045C00
ref: 43
PIPE COMP,INTAKE,REAR
€ 40.50
44
0928040003
ref: 44
O-RING (D:2.4 ID:39.7)
0928040003
€ 3.50
45-1
0212206205
ref: 45-1
MODEL N/P
SCREW
€ 2.00
45-2
0212206203
ref: 45-2
MODEL R/S/T/V
SCREW
0212206203
€ 2.00
46
0940252501
ref: 46
CLAMP
0940252501
€ 9.00
47
1115238A00
ref: 47
PAD
1115238A00
€ 3.50
48
1785438A00
ref: 48
HOSE,CYLINDER HEAD JOINT
1785438A00
€ 8.50
49
0940228511
ref: 49
CLAMP
0940228511
€ 8.50
