SEAT (MODEL T/V)

VS800GL 1997 (V) (E02 E04 E17 E18 E22 E25 E34)

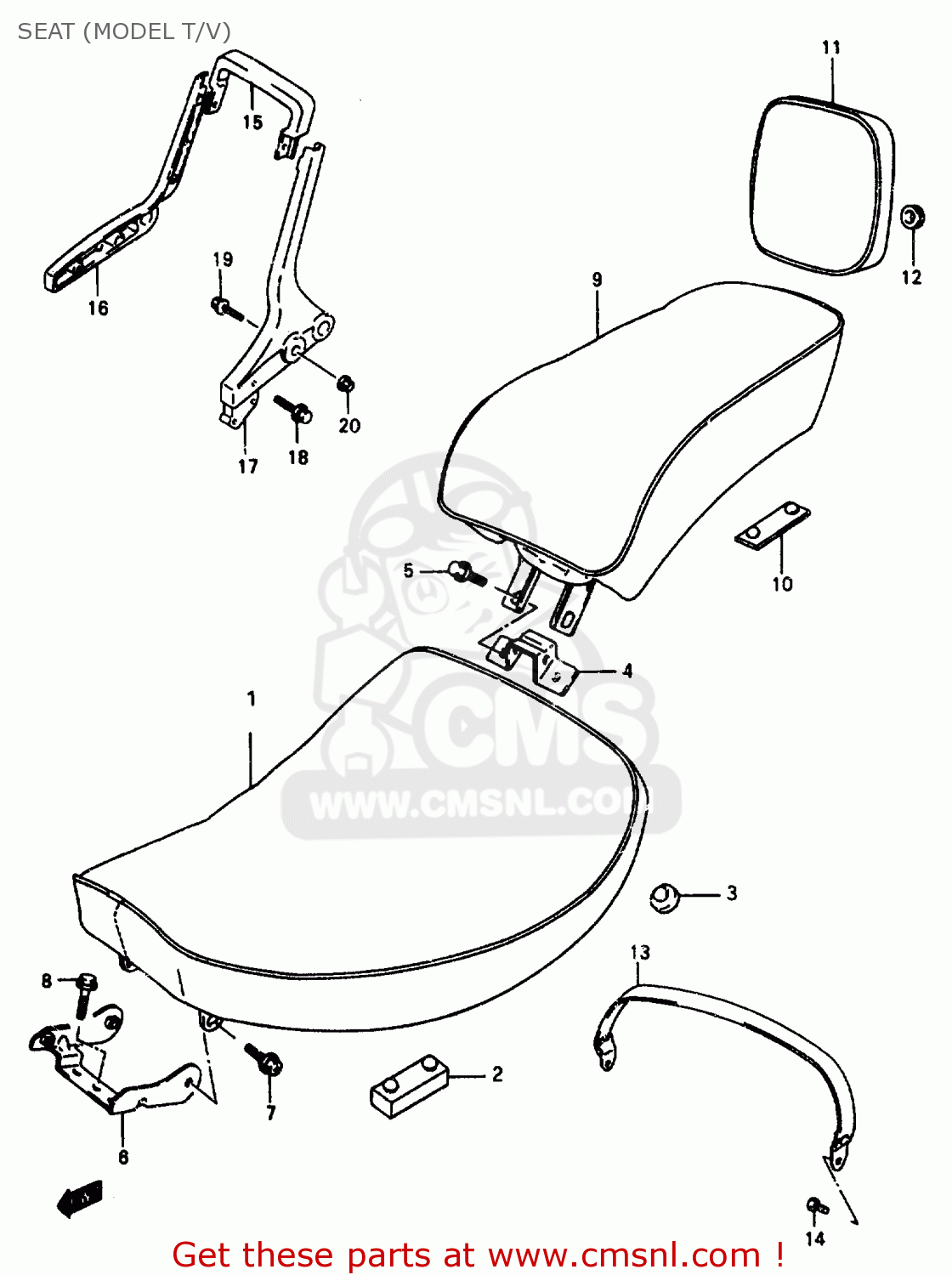

Seat (model t/v) diagram VS800GL 1997 (V) (E02 E04 E17 E18 E22 E25 E34)

SEAT (MODEL T/V) VS800GL 1997 (V) (E02 E04 E17 E18 E22 E25 E34)
SEAT (MODEL T/V) VS800GL 1997 (V) (E02 E04 E17 E18 E22 E25 E34)
SEAT (MODEL T/V) VS800GL 1997 (V) (E02 E04 E17 E18 E22 E25 E34)
prices are in EUR
ref
part #
description
quantity
1
4510038A60E7T
ref: 1
SEAT ASSY
4510038A60E7T
€ 417.50
2
4514943500
ref: 2
CUSHION,SEAT
4514943500
€ 3.00
3
0932110012
ref: 3
CUSHION
0932110012
€ 3.00
4
4511938A00
ref: 4
PLATE,FR SEAT HOOK & RR
4511938A00
€ 7.50
5
0911106066
ref: 5
BOLT(6X16)
0911106066
€ 2.50
6
4521038A03
ref: 6
BRACKET,SEAT FR
4521038A03
€ 18.50
7
0911106066
ref: 7
BOLT(6X16)
0911106066
€ 2.50
8
0155006163
ref: 8
BOLT
0155006163
€ 2.50
9
4530038A60E7T
ref: 9
SEAT ASSY,PILLION
€ 172.50
10
4514914500
ref: 10
CUSHION
4514914500
€ 6.50
11-1
4535038A60E7T
ref: 11-1
PAD ASSY,SEAT
4535038A60E7T
€ 104.50
11-2
4535038A60E7T
ref: 11-2
MODEL V E22
PAD ASSY,SEAT
4535038A60E7T
€ 104.50
12
0932009026
ref: 12
CUSHION
0932009026
€ 4.00
13
4518038A60R48
ref: 13
E14,E17,E18,E22
BAND, SEAT
€ 25.00
14
0158006167
ref: 14
E4,E17,E18,E22
BOLT
0158006167
€ 3.00
15-1
4621138B01
ref: 15-1
HANDLE,PILLION RIDER UPR
4621138B01
€ 69.00
15-2
4621138B01
ref: 15-2
MODEL V E22
HANDLE,PILLION RIDER UPR
4621138B01
€ 69.00
16-1
4621238A21
ref: 16-1
HANDLE,PILLION RIDER,RIGHT
4621238A21
€ 139.50
16-2
4621238A41
ref: 16-2
MODEL T E22
HANDLE,PILLION RIDER,R
4621238A41
€ 80.50
16-3
4621238A21
ref: 16-3
MODEL V E22
HANDLE,PILLION RIDER,RIGHT
4621238A21
€ 139.50
17-1
4621338A21
ref: 17-1
HANDLE,PILLION RIDER,L
4621338A21
€ 95.50
17-2
4621338A41
ref: 17-2
MODEL T E22
HANDLE,PILLION RIDER,L
4621338A41
€ 78.50
17-3
4621338A21
ref: 17-3
MODEL V E22
HANDLE,PILLION RIDER,L
4621338A21
€ 95.50
18
0158006353
ref: 18
BOLT
€ 3.50
19
0158008453
ref: 19
BOLT
0158008453
€ 4.00
20
0831610083
ref: 20
NUT
0831610083
€ 3.00
17-1
4621138B00
ref: 17-1
HANDLE,PILLION RIDER
4621138B00
€ 69.00
17-2
4621138A00
ref: 17-2
E22
HANDLE,PILLION RIDER,U
4621138A00
€ 68.50
18-1
4621238A20
ref: 18-1
HANDLE,PILLION RIDER
4621238A20
€ 139.50
18-2
4621238A01
ref: 18-2
E22
HANDLE,PILLION RIDER
€ 100.00
19-1
4621338A20
ref: 19-1
HANDLE,PILLION RIDER
€ 95.50
19-2
4621338A01
ref: 19-2
E22
HANDLE,PILLION RIDER
4621338A01
€ 103.50
20
0158006353
ref: 20
BOLT
€ 3.50
21
0158008453
ref: 21
BOLT
0158008453
€ 4.00
22
0831610083
ref: 22
NUT
0831610083
€ 3.00
