HANDLEBAR (MODEL T/V)

VS800GL 1997 (V) (E02 E04 E17 E18 E22 E25 E34)

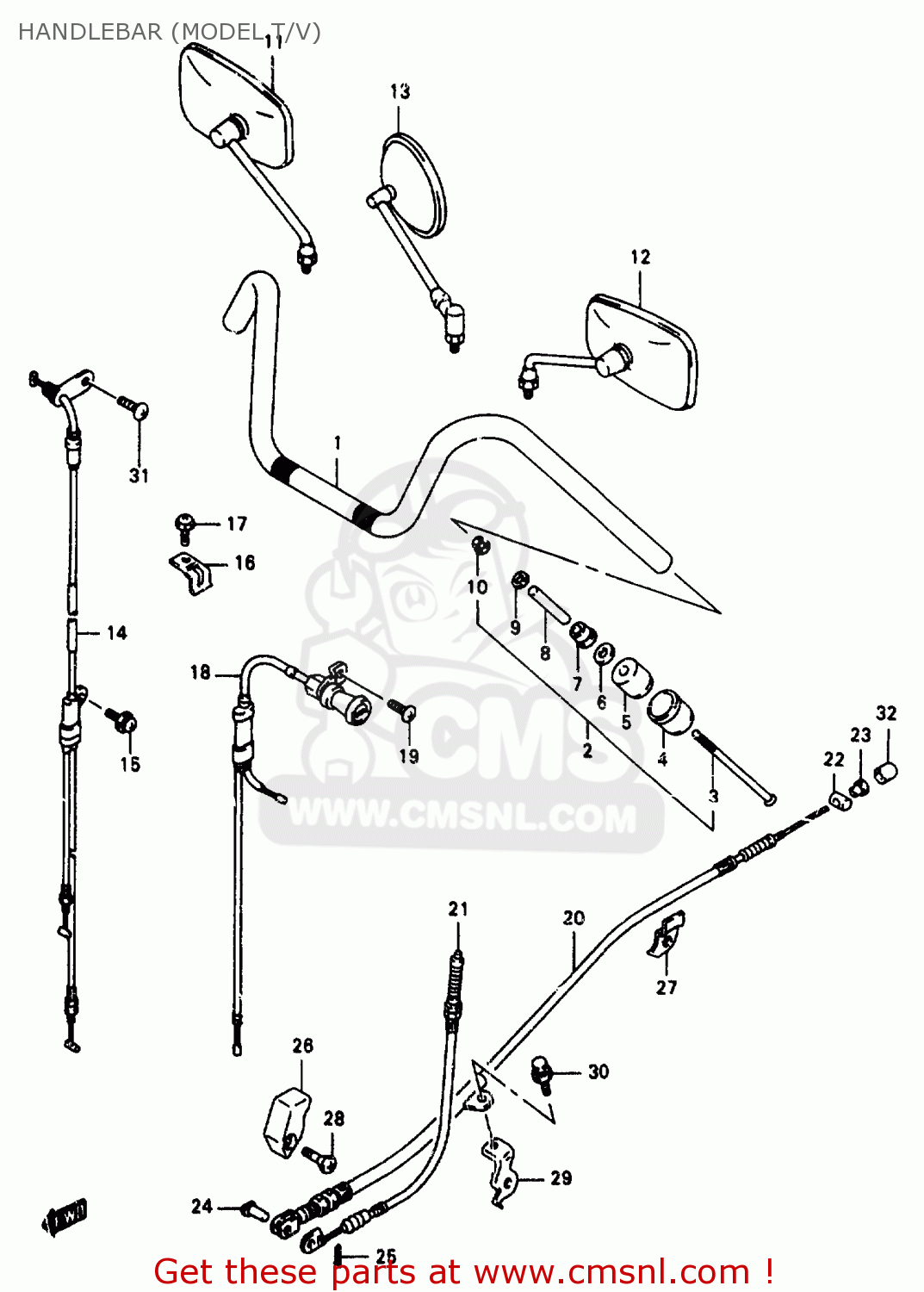

Handlebar (model t/v) diagram VS800GL 1997 (V) (E02 E04 E17 E18 E22 E25 E34)

HANDLEBAR (MODEL T/V) VS800GL 1997 (V) (E02 E04 E17 E18 E22 E25 E34)
HANDLEBAR (MODEL T/V) VS800GL 1997 (V) (E02 E04 E17 E18 E22 E25 E34)
HANDLEBAR (MODEL T/V) VS800GL 1997 (V) (E02 E04 E17 E18 E22 E25 E34)
prices are in EUR
ref
part #
description
quantity
1
5611138A90
ref: 1
HANDLEBAR
5611138A90
€ 266.50
2-1
5620038810
ref: 2-1
MODEL T
BALANCER SET,HANDLEBAR
5620038810
€ 58.50
2-2
5620048830
ref: 2-2
MODEL V
BALANCER SET,HANDLEBAR
€ 58.00
3
0912706019
ref: 3
SCREW(6X110)
0912706019
€ 4.50
4
5627426D00
ref: 4
MODEL T
CAP,HANDLE BALANCER
5627426D00
€ 15.50
5
5627126D10
ref: 5
MODEL T
BALANCER,HANDLEBAR
€ 19.50
6
5627526D00
ref: 6
MODEL T
SPACER,BALANCER
5627526D00
€ 5.00
7
5627226D01
ref: 7
EXPANDER,HANDLE BALANCER NO.2
5627226D01
€ 5.00
8
5627617D00
ref: 8
SPACER,EXPANDER
5627617D00
€ 2.50
9
0916006028
ref: 9
WASHER(6.5X18X1)
0916006028
€ 1.50
10
0915906024
ref: 10
NUT
0915906024
€ 2.00
11-1
5650038A40
ref: 11-1
MODEL T E18,E25
MIRROR ASSY,RR VIEW,R
5650038A40
€ 40.00
11-2
5650038A41
ref: 11-2
MODEL V E18,E25
MIRROR ASSY,RR VIEW,R
5650038A41
€ 40.00
12-1
5660038A40
ref: 12-1
MODEL T E18,E25
MIRROR ASSY,RR VIEW,L
5660038A40
€ 91.00
12-2
5660038A41
ref: 12-2
MODEL V E18,E25
MIRROR ASSY,RR VIEW,L
5660038A41
€ 91.00
13-1
5650038A60
ref: 13-1
MIRROR ASSY,RH
5650038A60
€ 297.50
13-2
5650038A90
ref: 13-2
E17,E22
MIRROR ASSY,RR VIEW
€ 64.50
14
5830039E00
ref: 14
CABLE ASSY,THROTTLE
5830039E00
€ 82.50
15
0211275123
ref: 15
SCREW
€ 2.50
16
5862138A00
ref: 16
CLAMP,THROTTLE CABLE
5862138A00
€ 6.00
17
0211275123
ref: 17
SCREW
€ 2.50
18
5840038A13
ref: 18
CABLE ASSEMBLY,STARTER
5840038A13
€ 65.50
19
0214206103
ref: 19
SCREW 6X10
0214206103
€ 2.00
20
5851038A01
ref: 20
CABLE,RR BRAKE
5851038A01
€ 123.50
21
5883038A00
ref: 21
CABLE,STOP LAMP SWITCH
5883038A00
€ 33.50
22-1
0920913005
ref: 22-1
MODEL T
PIN
0920913005
€ 3.50
22-2
0920913018
ref: 22-2
MODEL V
PIN(13X18)
0920913018
€ 3.50
23-1
0915006009
ref: 23-1
MODEL T
NUT (6MM)
0915006009
€ 3.50
23-2
0915006014
ref: 23-2
MODEL V
NUT
0915006014
€ 3.50
24
0920005001
ref: 24
PIN(L:17.5)
0920005001
€ 1.50
25
0411120158
ref: 25
PIN
0411120158
€ 1.50
26
5863138A00
ref: 26
GUIDE,RR BRAKE CABLE
5863138A00
€ 6.00
27
5872138A00
ref: 27
CLAMP,RR BRAKE CABLE
€ 6.50
28
0212206203
ref: 28
SCREW
0212206203
€ 2.00
29
4327538A00
ref: 29
BRACKET,RR BRAKE CABLE
4327538A00
€ 10.00
30
0158006163
ref: 30
BOLT
0158006163
€ 2.50
31
0214205087
ref: 31
SCREW
0214205087
€ 2.00
32
6144233310
ref: 32
E17,E22
CAP,GREASE NIPPLE
6144233310
€ 3.00
