GEAR SHIFTING

VS800GL 1997 (V) (E02 E04 E17 E18 E22 E25 E34)

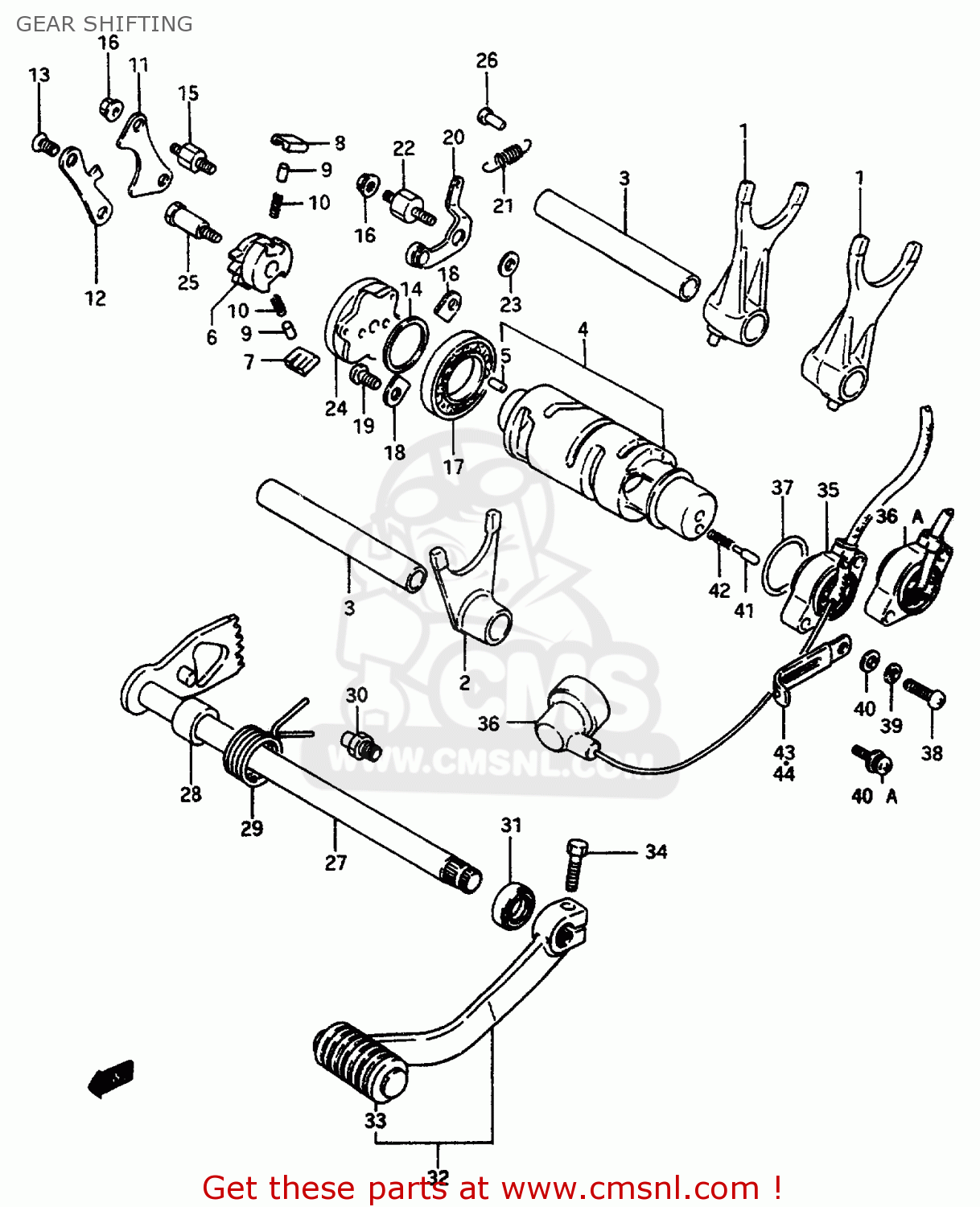

Gear shifting diagram VS800GL 1997 (V) (E02 E04 E17 E18 E22 E25 E34)

GEAR SHIFTING VS800GL 1997 (V) (E02 E04 E17 E18 E22 E25 E34)
GEAR SHIFTING VS800GL 1997 (V) (E02 E04 E17 E18 E22 E25 E34)
GEAR SHIFTING VS800GL 1997 (V) (E02 E04 E17 E18 E22 E25 E34)
prices are in EUR
ref
part #
description
quantity
1
2521138A02
ref: 1
FORK,GEAR SHIFT NO.1
€ 94.00
2
2522138A01
ref: 2
FORK,GEAR SHIFT NO.2
€ 79.00
3
2541138A00
ref: 3
SHAFT,GEAR SHIFT FORK(L:115)
€ 17.00
4
2531038A03
ref: 4
CAM,GEAR SHIFT
€ 146.00
5
0422104089
ref: 5
PIN
0422104089
€ 1.50
6-1
2532231301
ref: 6-1
MODEL N/P/R/S/T
GEAR,GEARSHIFT CAM DRIVE
2532231301
€ 14.50
6-2
2532231302
ref: 6-2
MODEL V
GEAR,GEARSHIFT CAM DRIVE
€ 14.50
7
2532334201
ref: 7
PAWL,GEAR SHIFT NO.1
2532334201
€ 6.00
8
2532434201
ref: 8
PAWL,GEAR SHIFT NO.2
2532434201
€ 6.00
9
0926105003
ref: 9
PIN(5X8)
0926105003
€ 1.50
10
0944004003
ref: 10
SPRING
0944004003
€ 1.50
11
2533138A00
ref: 11
LIFTER,GEAR SHIFT POLE
2533138A00
€ 4.50
12
2534138A00
ref: 12
GUIDE,GEAR SHIFT CAM
2534138A00
€ 6.00
13-1
0212206128
ref: 13-1
MODEL N/P
SCREW
0212206128
€ 3.00
13-2
0212206123
ref: 13-2
MODEL R/S/T/V
SCREW
0212206123
€ 3.00
14
0916025059
ref: 14
WASHER(25X32X3)
0916025059
€ 5.00
15
2533238A00
ref: 15
BOSS,SHIFT PAWL LIFTER
€ 3.50
16-1
0915906017
ref: 16-1
MODEL N/P
NUT
0915906017
€ 2.50
16-2
0831610063
ref: 16-2
MODEL R/S/T/V
NUT
0831610063
€ 2.50
17-1
0926225002
ref: 17-1
MODEL N/P
BEARING
0926225002
€ 24.00
17-2
0926225006
ref: 17-2
MODEL R/S/T/V
BEARING(25X47X8)
0926225006
€ 24.00
18-1
2474120A10
ref: 18-1
MODEL N/P
RETAINER,SHIFT CAM,R BEARING
€ 2.00
18-2
2474121A00
ref: 18-2
MODEL R/S/T/V
RETAINER
2474121A00
€ 2.00
19-1
0211206128
ref: 19-1
MDOEL N/P
SCREW 6X12
0211206128
€ 2.00
19-2
0211206123
ref: 19-2
MODEL R/S/T/V
SCREW
0211206123
€ 1.50
20
2535038A00
ref: 20
STOPPER,GEAR SHIFT CAM
2535038A00
€ 9.00
21
0944309027
ref: 21
SPRING
0944309027
€ 2.50
22
2535538A00
ref: 22
SUPPORT,CAM STOPPER ARM
€ 5.50
23
0821106141
ref: 23
WASHER
0821106141
€ 2.50
24
2538038A02
ref: 24
PLATE,GEAR SHIFT CAM
2538038A02
€ 15.00
25
2531238A00
ref: 25
PIN,SHIFT CAM DRIVEN GEAR
2531238A00
€ 4.00
26
0922304001
ref: 26
RIVET
0922304001
€ 1.50
27
2551038A00
ref: 27
SHAFT,GEAR SHIFT
2551038A00
€ 66.50
28
0918012068
ref: 28
SPACER(12X20X15.3)
0918012068
€ 3.00
29-1
0944426012
ref: 29-1
MODEL N/P/R/S
SPRING
0944426012
€ 3.50
29-2
0944426013
ref: 29-2
MODEL T/V
SPRING
0944426013
€ 3.50
30
2567101000
ref: 30
STOPPER,GEAR SHIFT CAM
2567101000
€ 3.00
31
0928512002
ref: 31
OIL SEAL
0928512002
€ 7.00
32
2560038A00
ref: 32
LEVER ASSY,GEAR SHIFT
2560038A00
€ 58.50
33
2565220C00
ref: 33
RUBBER,GEAR SHIFT PEDAL
2565220C00
€ 8.00
34-1
0110706207
ref: 34-1
MODEL N/P
BOLT
0110706207
€ 2.00
34-2
0150006203
ref: 34-2
MODEL R/S/T/V
BOLT
0150006203
€ 2.00
35-1
3772038A40
ref: 35-1
MODEL N/P/R/S
BASE,NEUTRAL SWH TERMINAL
3772038A40
€ 66.00
35-2
3772038A40
ref: 35-2
MODEL T/V E18
BASE,NEUTRAL SWH TERMINAL
3772038A40
€ 66.00
36
3661843410
ref: 36
CAP,OIL PRESSURE SWITCH
3661843410
€ 2.50
36A
3772038A60
ref: 36A
MODEL T/V
BASE ASSY,GEAR SHIFT TERMINAL
3772038A60
€ 73.50
37-1
0928026005
ref: 37-1
MODEL N/P/R/S
O RING(D:2.4,ID:26.2)
0928026005
€ 2.50
37-2
0928026007
ref: 37-2
MODEL T/V
O RING(D:2.4,ID:25.7)
0928026007
€ 6.50
38
0211205207
ref: 38
MODEL N/P
SCREW
0211205207
€ 3.00
39
0832101057
ref: 39
MODEL N/P
WASHER,LOCK
0832101057
€ 2.00
40
0832201057
ref: 40
MODEL N/P
WASHER
0832201057
€ 2.50
40A
0211275203
ref: 40A
MODEL R/S/T/V
SCREW
€ 3.00
41
0920905011
ref: 41
PIN(5X15.5)
0920905011
€ 2.00
42
0944004010
ref: 42
SPRING
0944004010
€ 1.50
43
0940406429
ref: 43
-09404-05401
CLAMP(L:45)
€ 2.50
44-1
0940406204
ref: 44-1
MODEL N/P
CLAMP
€ 2.00
44-2
0940406207
ref: 44-2
MODEL R/S/T/V
CLAMP(L:65)
€ 2.00
