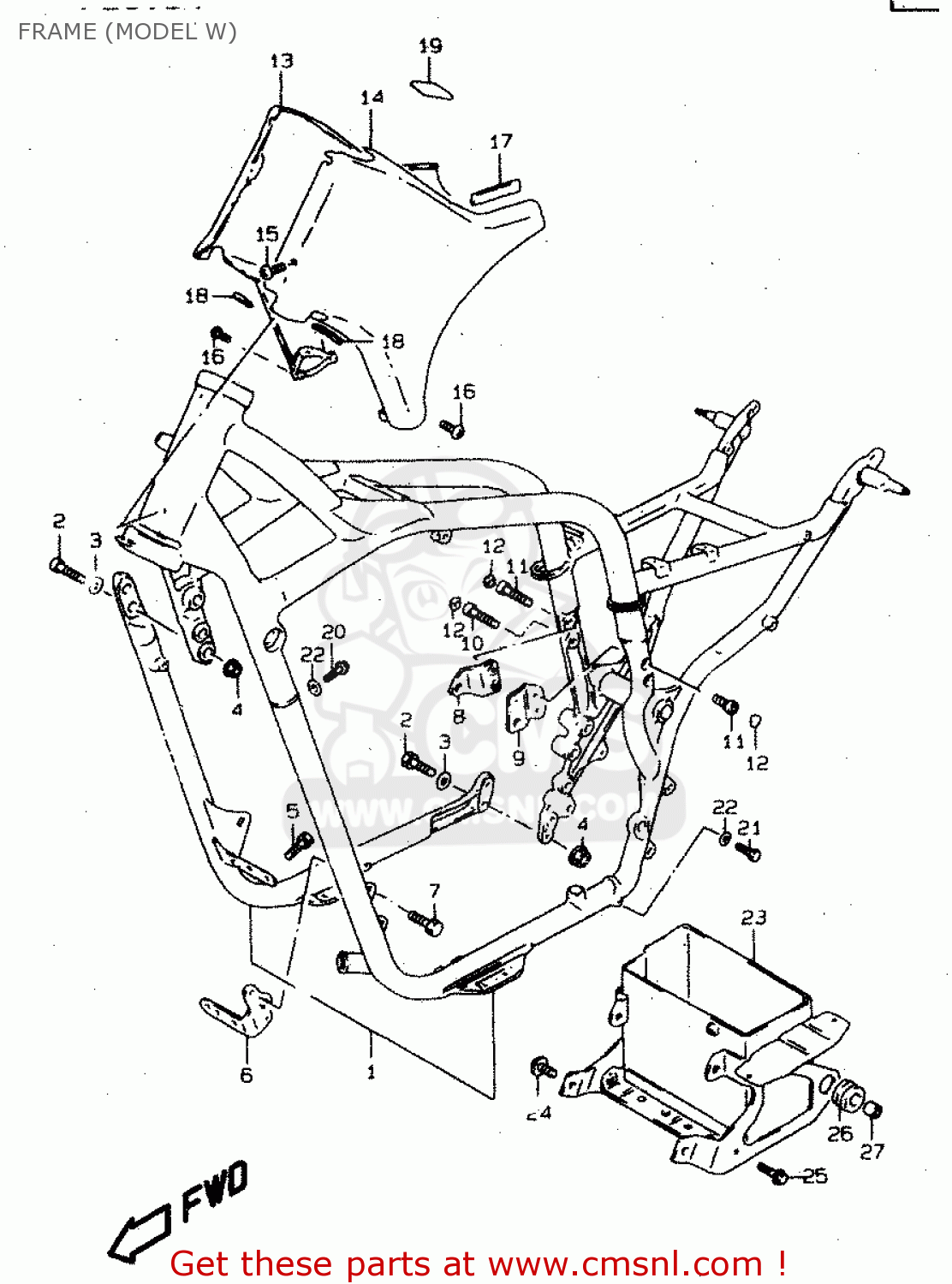

FRAME (MODEL W)

ref

part #

description

quantity

1

411013981319A
ref: 1
FOR J4M

FRAME SET(RED)

€ 959.00

1

411013981333J
ref: 1
FOR J4V

FRAME SET(BLACK)

€ 940.50

1

4110139813Y98
ref: 1
FOR F1H

FRAME SET (GREEN)

€ 940.50

1

411013982319A
ref: 1
E18 FOR J4M

FRAME SET (RED)

€ 2.00

1

411013982333J
ref: 1
E18 FOR J4V

FRAME SET (BLACK)

€ 1,906.50

1

4110139823Y98
ref: 1
E18 FOR F1H

FRAME SET (GREEN)

€ 1,906.50

2

0910610019
ref: 2

BOLT(10X33)

€ 4.00

3

0916410010
ref: 3

WASHER

€ 6.50

4

0831931103
ref: 4

NUT

€ 3.00

5

0155008203
ref: 5

BOLT

€ 3.00

6

4192038A00019
ref: 6

PLATE,ENGINE MOUNT NO.1,L

€ 11.00

7

0157008163
ref: 7

BOLT, UPPER

€ 2.00

8

4195038A11019
ref: 8

PLATE,ENGINE MOUNT NO.3,R

€ 32.50

9

4196038A10019
ref: 9

PLATE,ENGINE MOUNT NO.3,L

€ 26.50

10

0713008303
ref: 10

BOLT

€ 3.00

11

0910608070
ref: 11

BOLT(8X30)

€ 5.50

12

0925006004
ref: 12

CAP(OD:14.5)

€ 1.50

13

4735038A0119A
ref: 13
FOR J4M

COVER,FRAME HEAD,RIGHT

€ 269.00

13

4735038A0133J
ref: 13
FOR J4V

COVER,FRAME HEAD,R(BLACK)

€ 269.00

13

4735038A01Y98
ref: 13
FOR F1H

COVER,FRAME HEAD,R(GREEN)

€ 108.00

14

4736038A0119A
ref: 14
FOR J4M

COVER,FRAME HEAD,LEFT

€ 267.00

14

4736038A0133J
ref: 14
FOR J4V

COVER,FRAME HEAD,LEFT

€ 267.00

14

4736038A01Y98
ref: 14
FOR F1H

COVER,FRAME HEAD,L(GREEN)

€ 120.50

15

0214206103
ref: 15

SCREW 6X10

€ 2.00

16

0211204253
ref: 16

SCREW

€ 2.00

17

3365207D00
ref: 17

PROTECTOR(80X80X2)

€ 4.50

18

6824104X50300
ref: 18

MOLDING

€ 6.00

19

4735838A00
ref: 19

TAPE,FRAME HEAD COVER

€ 7.00

20

0936006015
ref: 20

UNION

€ 3.00

21

0155006103
ref: 21

BOLT

€ 2.50

22

0916806004
ref: 22

GASKET(6.2X11X1).2 (NAS)

€ 1.50

23

4154038A12
ref: 23

HOLDER,BATTERY

€ 103.50

24

0155010163
ref: 24

BOLT

€ 2.50

25

0155006163
ref: 25

BOLT

€ 2.50

26

0932012031
ref: 26

CUSHION

€ 3.00

27

0930108009
ref: 27

BUSH

€ 6.50

all assemblies
