TURN SIGNAL LAMP

VS800GL 2000 (Y) (E02 E04 E17 E18 E22 E25 E34)

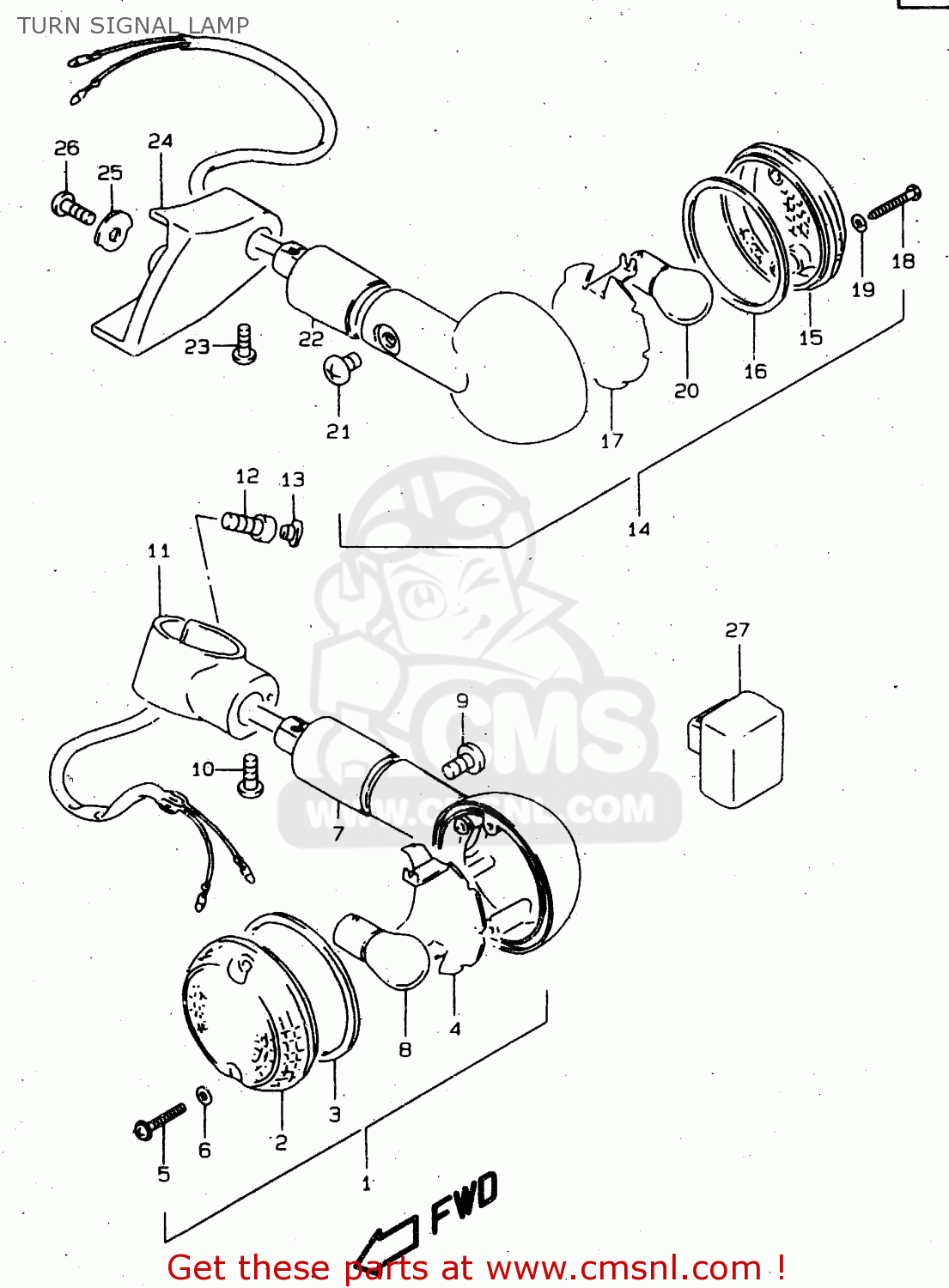

Turn signal lamp diagram VS800GL 2000 (Y) (E02 E04 E17 E18 E22 E25 E34)

TURN SIGNAL LAMP VS800GL 2000 (Y) (E02 E04 E17 E18 E22 E25 E34)
TURN SIGNAL LAMP VS800GL 2000 (Y) (E02 E04 E17 E18 E22 E25 E34)
TURN SIGNAL LAMP VS800GL 2000 (Y) (E02 E04 E17 E18 E22 E25 E34)
prices are in EUR
ref
part #
description
quantity
1
3560138A22
ref: 1
LAMP ASSY,FR TURN SIGNAL
3560138A22
€ 93.50
2
3561238A01
ref: 2
LENS
3561238A01
€ 10.50
3
3561338A00
ref: 3
GASKET (NAS)
3561338A00
€ 11.50
4
3562438A20
ref: 4
REFLECTOR
3562438A20
€ 71.00
5
0321104253
ref: 5
SCREW
0321104253
€ 2.00
6
3562743010
ref: 6
GASKET (NAS)
3562743010
€ 2.00
7
3561938A01
ref: 7
STAY,TURNSIGNAL LAMP
3561938A01
€ 35.50
8
0947112045
ref: 8
BULB(12V21W)
0947112045
€ 5.00
9
3562338A01
ref: 9
SCREW
3562338A01
€ 5.50
10
0214206107
ref: 10
SCREW
0214206107
€ 2.00
11
3567139A00
ref: 11
BRACKET,FR TURNSIGNAL LAMP,R
3567139A00
€ 51.50
11
3568139A00
ref: 11
BRACKET,FR TURNSIGNAL LAMP,L
3568139A00
€ 51.50
12
0713006167
ref: 12
BOLT
0713006167
€ 3.00
13
0925005008
ref: 13
CAP(OD:10)
0925005008
€ 5.00
14
3560338A22
ref: 14
LAMP ASSY,RR TURNSIGNAL,R
3560338A22
€ 98.00
15
3565238A21
ref: 15
LENS
3565238A21
€ 16.50
16
3561338A00
ref: 16
GASKET (NAS)
3561338A00
€ 11.50
17
3565438A20
ref: 17
REFLECTOR
3565438A20
€ 83.50
18
0321104253
ref: 18
SCREW
0321104253
€ 2.00
19
3562743010
ref: 19
GASKET (NAS)
3562743010
€ 2.00
20
0947112045
ref: 20
BULB(12V21W)
0947112045
€ 5.00
21
3562338A01
ref: 21
SCREW
3562338A01
€ 5.50
22
3561938A01
ref: 22
STAY,TURNSIGNAL LAMP
3561938A01
€ 35.50
23
0214206107
ref: 23
SCREW
0214206107
€ 2.00
24
3562138A23
ref: 24
E17, E18
BRACKET,RR TURNSIGNAL,R
3562138A23
€ 26.00
24
3564138A23
ref: 24
E17, E18
BRACKET,RR TURNSIGNAL,L
3564138A23
€ 31.00
25
3562938A20
ref: 25
E17, E18
WASHER,RR TURNSIGNAL BRACKET
3562938A20
€ 1.50
26
0214206127
ref: 26
E17, E18
SCREW 6X12
0214206127
€ 1.50
27
3861026E00
ref: 27
RELAY ASSY
3861026E00
€ 47.00
