Buy Suzuki VS Parts Online


REAR SWINGING ARM

VS800GL 2000 (Y) (E02 E04 E17 E18 E22 E25 E34)

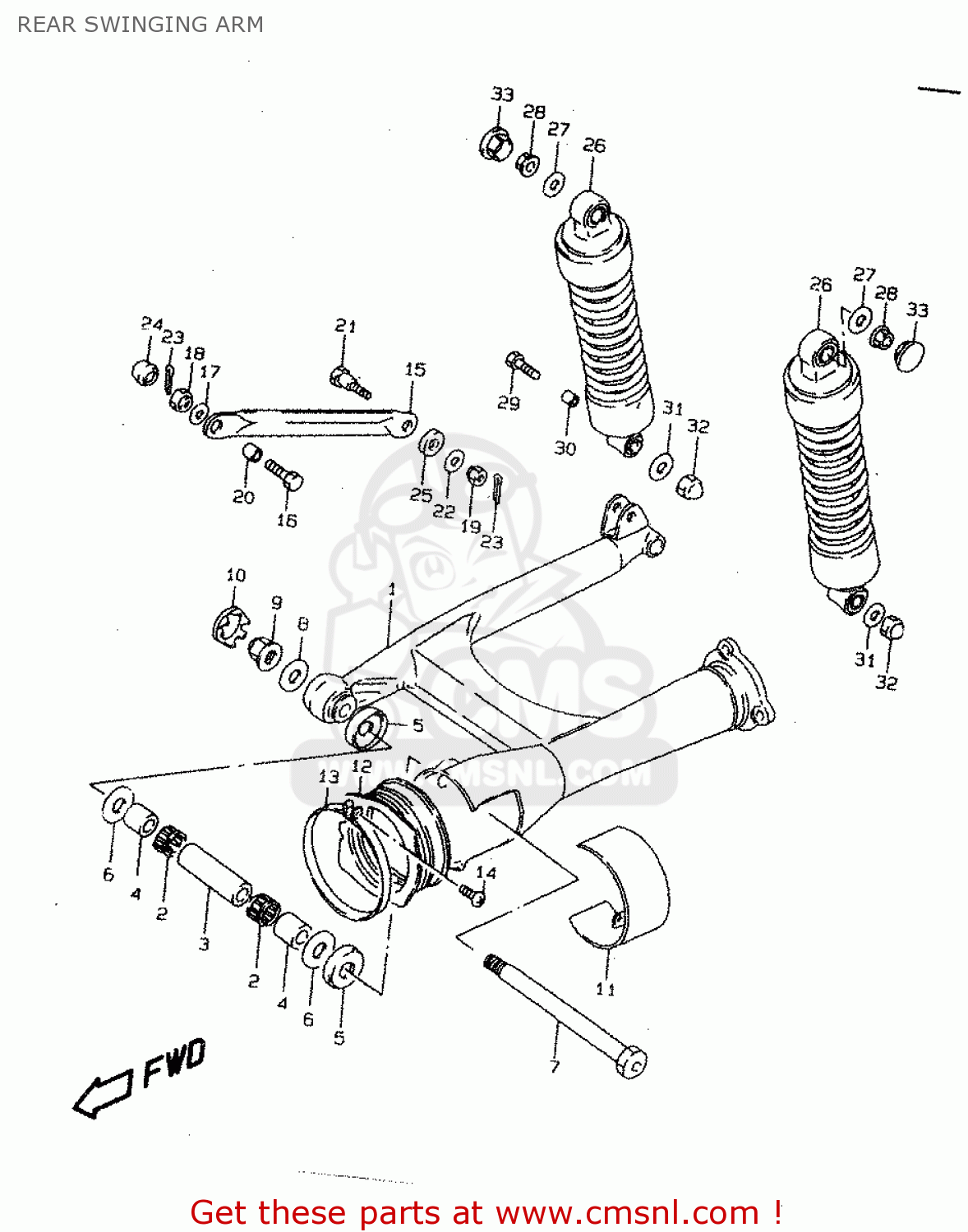

Rear swinging arm diagram VS800GL 2000 (Y) (E02 E04 E17 E18 E22 E25 E34)

REAR SWINGING ARM VS800GL 2000 (Y) (E02 E04 E17 E18 E22 E25 E34)
REAR SWINGING ARM VS800GL 2000 (Y) (E02 E04 E17 E18 E22 E25 E34)
REAR SWINGING ARM VS800GL 2000 (Y) (E02 E04 E17 E18 E22 E25 E34)
prices are in EUR
ref
part #
description
quantity
1
6110038E01Y98
ref: 1
MODEL W
SWING ARM,REAR (GREEN)
€ 485.00
1
6110038E0119A
ref: 1
MODEL W
SWINGINGARM,RR
€ 544.00
1
6110038E0133J
ref: 1
SWING ARM,REAR (BLACK)
€ 517.50
1
6110038E01Y4M
ref: 1
MODEL X
SWING ARM COMP,REAR
€ 517.50
1
6110038E01Y7H
ref: 1
MODEL X
SWING ARM COMP,REAR
€ 517.50
2
0926322022
ref: 2
BEARING(22X29X20)
0926322022
€ 27.00
3
6128238E01
ref: 3
SPACER,RR SWGARM PIVOT
6128238E01
€ 11.50
4
6125132410
ref: 4
SPACER,RR SWGARM PIVOT
6125132410
€ 8.50
5
6126214A00
ref: 5
SEAL,RR SWGARM PIVOT DUST
6126214A00
€ 7.50
6
0821116341
ref: 6
WASHER
0821116341
€ 2.00
7
6121138E00
ref: 7
SAHFT,RR SWGARM PIVOT
6121138E00
€ 41.00
8
0916017047
ref: 8
WASHER(17X30X3)
0916017047
€ 5.00
9
0831921168
ref: 9
NUT 16MM
0831921168
€ 5.00
10
6122238A01
ref: 10
CAP,RR SWINGING ARM PIVOT,R
6122238A01
€ 6.50
11
6123238A00Y98
ref: 11
MODEL W
COVER,REAR SWING ARM PIVOT
€ 30.50
11
6123238A0019A
ref: 11
MODEL W
COVER,RR SWGARM PIVOT,L(RED)
6123238A0019A
€ 28.00
11
6123238A0033J
ref: 11
COVER,RR SWGARM PIVOT,L
6123238A0033J
€ 30.50
11
6123238A00Y4M
ref: 11
MODEL X
COVER,REAR SWING ARM PIVOT
€ 30.50
11
6123238A00Y7H
ref: 11
MODEL X
COVER,REAR SWING ARM PIVOT
6123238A00Y7H
€ 27.50
12
6137238A00
ref: 12
BOOT,PROPELLER SHAFT
6137238A00
€ 16.50
13
0940292306
ref: 13
CLAMP
0940292306
€ 8.50
14
0321104253
ref: 14
SCREW
0321104253
€ 2.00
15
6431038A13019
ref: 15
TORQUELINK,RR
6431038A13019
€ 13.00
16
0910110037
ref: 16
BOLT(10X28)
0910110037
€ 4.00
17
0916010085
ref: 17
WASHER (10X20X2.3)
0916010085
€ 2.00
18
0915910059
ref: 18
NUT
0915910059
€ 2.50
19
0831000103
ref: 19
NUT
0831000103
€ 2.00
20
0918010137
ref: 20
SPACER(10.2X14X9.6)
0918010137
€ 4.50
21
0911110035
ref: 21
BOLT(10X41)
0911110035
€ 6.50
22
0916010085
ref: 22
WASHER (10X20X2.3)
0916010085
€ 2.00
23
0411116208
ref: 23
PIN 16X20
0411116208
€ 2.00
24
0925113002
ref: 24
CAP
0925113002
€ 6.50
25
0932012501
ref: 25
CUSHION
0932012501
€ 5.50
26
6210038A53
ref: 26
ABSORBER ASSY,RR SHOCK
6210038A53
€ 367.00
27
0916010123
ref: 27
WASHER(10.5X20X2.3)
0916010123
€ 2.00
28
0831610103
ref: 28
NUT
0831610103
€ 2.00
29
0910010247
ref: 29
BOLT(10X39)
0910010247
€ 4.00
30
0918010139
ref: 30
SPACER(10.2X14X20.7)
0918010139
€ 6.00
31
0916010127
ref: 31
WASHER (10.5X24X2.3)
0916010127
€ 2.00
32
0831310107
ref: 32
NUT
0831310107
€ 2.50
33
9567224A00
ref: 33
CAP,FRAME HANDLE GRIP
9567224A00
€ 5.00
