MAGNETO

VS800GL 2000 (Y) (E02 E04 E17 E18 E22 E25 E34)

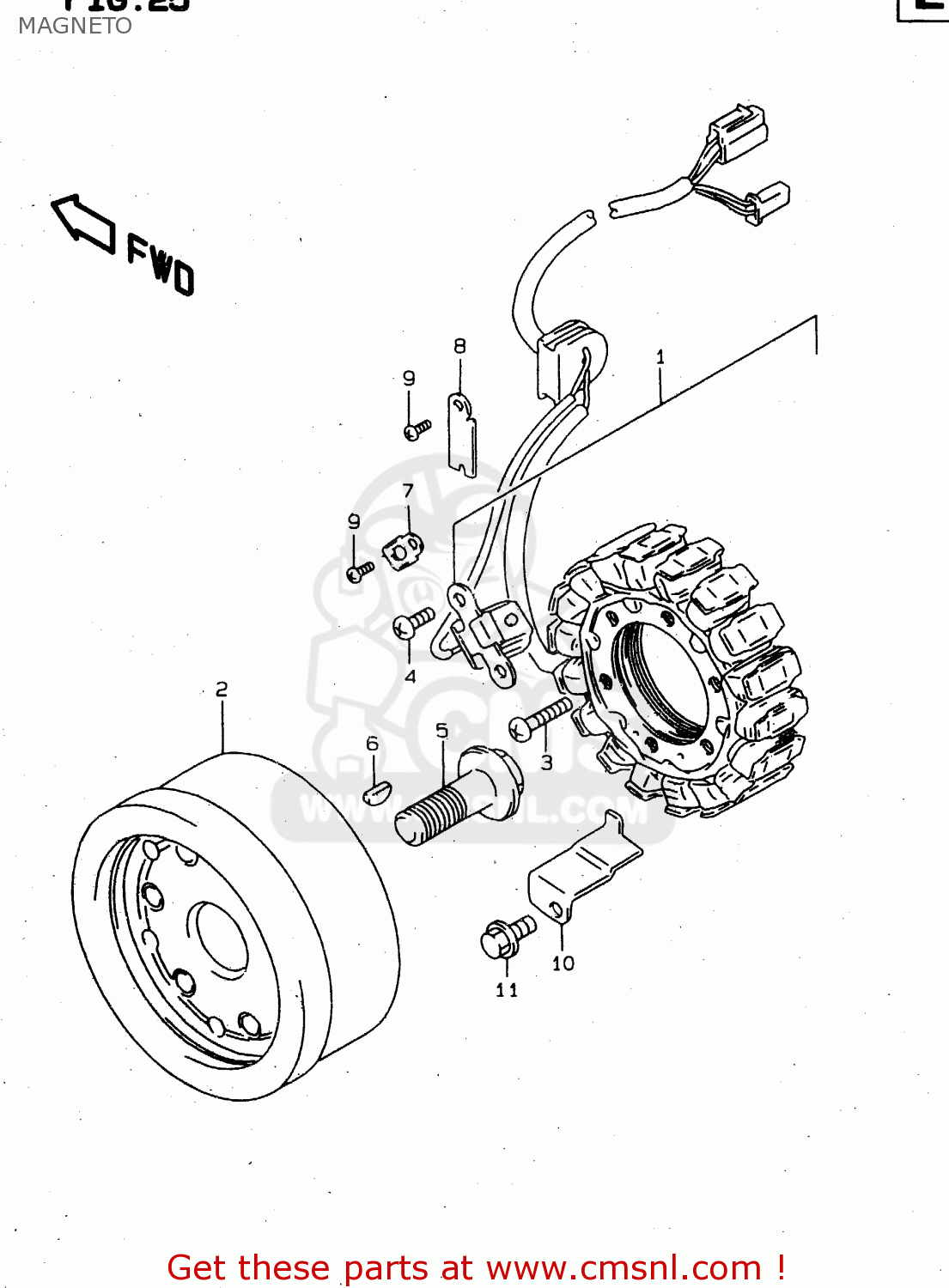

Magneto diagram VS800GL 2000 (Y) (E02 E04 E17 E18 E22 E25 E34)

prices are in EUR

ref

part #

description

quantity

3210145C00
ref: 1

STARTER ASSY

€ 591.00

3210238A30
ref: 2

ROTOR ASSY

€ 390.50

0154706303
ref: 3

BOLT,G/S SWITC

€ 3.00

0211205103
ref: 4

SCREW

€ 2.00

0910314001
ref: 5

BOLT(14X43)

€ 7.00

0942004008
ref: 6

KEY

€ 3.50

3149745000
ref: 7

CLAMP,GENERATOR LEAD WIRE

€ 1.50

3237138A10
ref: 8

CLAMP NO.1,MAGNETO READ WIRE

€ 1.50

0211205103
ref: 9

SCREW

€ 2.00

3237145C00
ref: 10

CLAMP,MAGNETO LEAD WIRE

€ 3.00

0154706103
ref: 11

BOLT

€ 3.00
