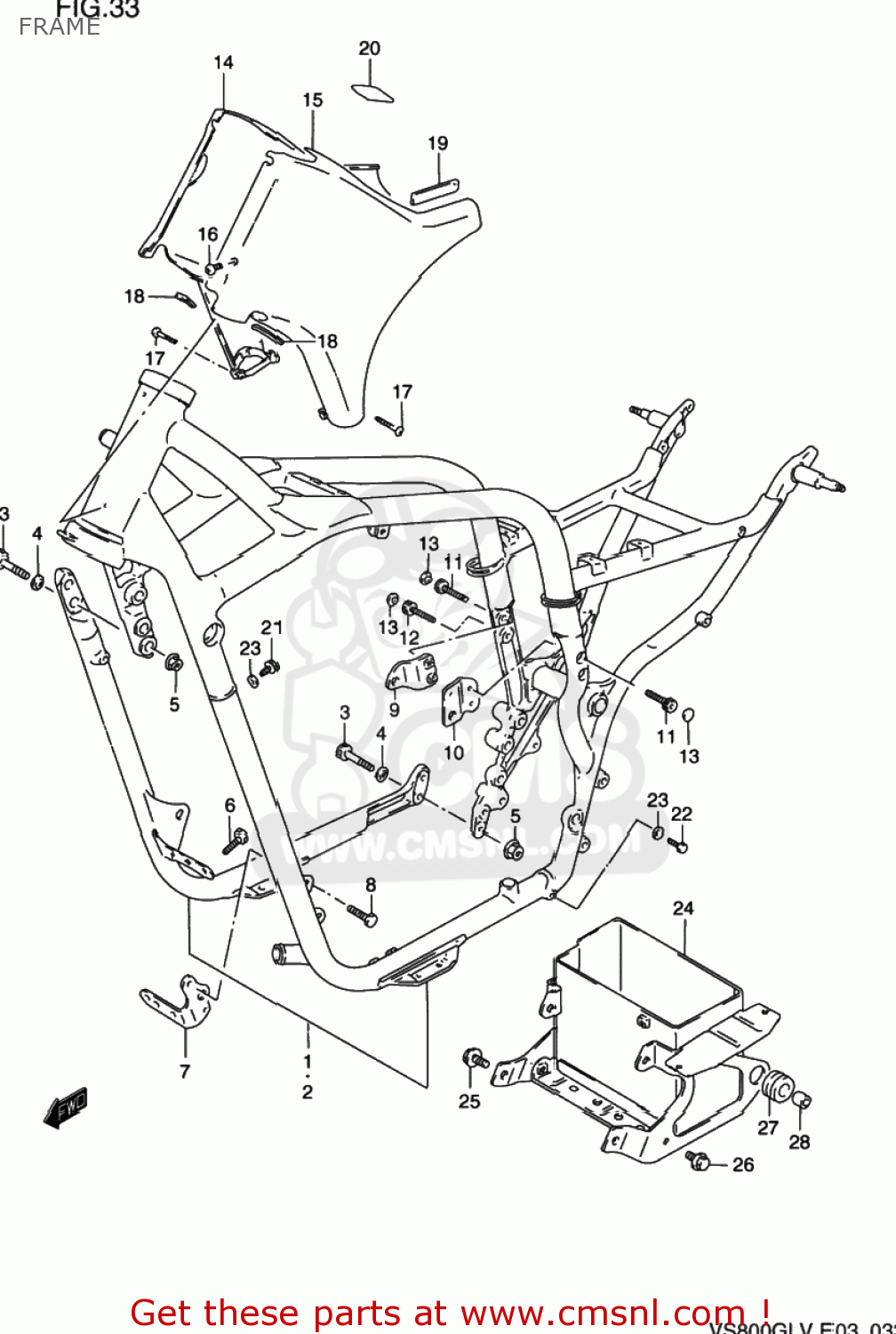

FRAME

ref

part #

description

quantity

1-1

411013981003F
ref: 1-1
41101-39813-03F

FRAME SET

€ 940.50

1-2

411013981019A
ref: 1-2
41101-39813-19A

FRAME

€ 959.00

1-3

411013981119A
ref: 1-3
41101-39813-19A

FRAME

€ 959.00

1-4

41101398100CG
ref: 1-4
41101-39813-0CG

FRAME

€ 940.50

1-5

411013981133J
ref: 1-5
41101-39813-33J

FRAME

€ 940.50

2-1

411013981220F
ref: 2-1
41101-39813-20F

FRAME SET

€ 1,025.00

2-2

411013981233J
ref: 2-2
41101-39813-33J

FRAME SET

€ 940.50

2-3

41101398121ZV
ref: 2-3
41101-39813-1ZV

FRAME SET

€ 2,143.50

2-4

411013981319A
ref: 2-4

FRAME SET(RED)

€ 959.00

2-5

411013981333J
ref: 2-5

FRAME SET(BLACK)

€ 940.50

3

0910610019
ref: 3

BOLT(10X33)

€ 4.00

4

0916410010
ref: 4

WASHER

€ 6.50

5

0831931105
ref: 5
08319-3110A

NUT 10MM

€ 3.00

6-1

0151708205
ref: 6-1
01550-0820A

BOLT

€ 3.00

6-2

0155008203
ref: 6-2
01550-0820A

BOLT

€ 3.00

7-1

4192038A0003F
ref: 7-1
41920-38A00-019

PLATE,ENGINE MOUNTING

€ 11.00

7-2

4192038A0019A
ref: 7-2
41920-38A00-019

PLATE,ENGINE MOUNTING

€ 11.00

7-3

4192038A000CG
ref: 7-3
41920-38A00-019

PLATE,ENGINE MOUNTING

€ 11.00

7-4

4192038A0033J
ref: 7-4
41920-38A00-019

PLATE,ENGINE MOUNTING

€ 11.00

7-5

4192038A0020F
ref: 7-5

PLATE,ENGINE MOUNTING

€ 11.00

7-6

4192038A00019
ref: 7-6

PLATE,ENGINE MOUNT NO.1,L

€ 11.00

8-1

0113708165
ref: 8-1
01570-0816A

BOLT

€ 2.00

8-2

0157008163
ref: 8-2
01570-0816A

BOLT, UPPER

€ 2.00

9-1

4195038A1003F
ref: 9-1

PLATE COMP,ENGINE MOUNTING

€ 32.50

9-2

4195038A1019A
ref: 9-2
41950-38A11-19A

PLATE,ENGINE MOUNTING

€ 32.50

9-3

4195038A1119A
ref: 9-3

PLATE,ENGINE MOUNTING NO

€ 32.50

9-4

4195038A110CG
ref: 9-4

PLATE,ENGINE MOUNTING NO

€ 32.50

9-5

4195038A1133J
ref: 9-5

PLATE,ENGINE MOUNTING NO

€ 32.50

9-6

4195038A1120F
ref: 9-6

PLATE COMP,ENGINE MOUNTING

€ 32.50

9-7

4195038A11019
ref: 9-7

PLATE,ENGINE MOUNT NO.3,R

€ 32.50

10-1

4196038A1003F
ref: 10-1

PLATE COMP,ENGINE MOUNTING

€ 26.50

10-2

4196038A1019A
ref: 10-2

PLATE,ENGINE MOUNTING NO

€ 26.50

10-3

4196038A100CG
ref: 10-3

PLATE,ENGINE MOUNTING NO

€ 26.50

10-4

4196038A1033J
ref: 10-4

PLATE,MOUNTING NO.3,LEFT (BLACK)

€ 26.50

10-5

4196038A1020F
ref: 10-5

PLATE COMP,ENGINE MOUNTING

€ 26.50

10-6

4196038A10019
ref: 10-6

PLATE,ENGINE MOUNT NO.3,L

€ 26.50

11

0910608070
ref: 11

BOLT(8X30)

€ 5.50

12-1

0910608063
ref: 12-1
07130-0830A

BOLT 8X30

€ 3.00

12-2

0713008303
ref: 12-2
07130-0830A

BOLT

€ 3.00

13

0925006004
ref: 13

CAP(OD:14.5)

€ 1.50

14-1

4735038A0003F
ref: 14-1
47350-38A01-03F

COVER,FRAME HEAD,RIGHT

€ 269.00

14-2

4735038A0019A
ref: 14-2
47350-38A01-19A

COVER,FRAME HEAD,RIGHT

€ 269.00

14-3

4735038A0119A
ref: 14-3

COVER,FRAME HEAD,RIGHT

€ 269.00

14-4

4735038A000CG
ref: 14-4
47350-38A01-0CG

COVER,FRAME HEAD,RIGHT

€ 269.00

14-5

4735038A0133J
ref: 14-5

COVER,FRAME HEAD,R(BLACK)

€ 269.00

14-6

4735038A0120F
ref: 14-6

COVER COMP,FRAME HEAD

€ 134.00

14-7

4735038A011ZV
ref: 14-7

COVER,FRAME HEAD,R(GREEN)

€ 118.50

15-1

4736038A0003F
ref: 15-1
47360-38A01-03F

COVER COMP,FRAME HEAD

€ 267.00

15-2

4736038A0019A
ref: 15-2
47360-38A01-19A

COVER,FRAME HEAD,LEFT

€ 267.00

15-3

4736038A0119A
ref: 15-3

COVER,FRAME HEAD,LEFT

€ 267.00

15-4

4736038A000CG
ref: 15-4
47360-38A01-0CG

COVER,FRAME HEAD,LEFT

€ 267.00

15-5

4736038A0133J
ref: 15-5

COVER,FRAME HEAD,LEFT

€ 267.00

15-6

4736038A0120F
ref: 15-6

COVER COMP,FRAME HEAD

€ 121.00

15-7

4736038A011ZV
ref: 15-7

COVER COMP,FRAME HEAD

€ 150.00

16-1

0214205104
ref: 16-1
02142-0510B

SCREW 5X10

€ 2.50

16-2

0214206103
ref: 16-2
02142-0610A

SCREW 6X10

€ 2.00

17-1

0211204254
ref: 17-1
02112-0425B

SCREW

€ 2.00

17-2

0211204253
ref: 17-2
02112-0425B

SCREW

€ 2.00

18

6824138A10
ref: 18
68241-04X50-300

MOLDING,FUEL TANK

€ 6.00

19-1

3365238A10
ref: 19-1
33652-07D00

PROTECTOR(20X90)X2

€ 4.50

19-2

3365207D00
ref: 19-2

PROTECTOR(80X80X2)

€ 4.50

20

4735838A00
ref: 20

TAPE,FRAME HEAD COVER

€ 7.00

21

0936006015
ref: 21
09360-06015-XC0

UNION

€ 3.00

22-1

0151706105
ref: 22-1
01550-0610A

BOLT

€ 2.50

22-2

0155006103
ref: 22-2
01550-0610A

BOLT

€ 2.50

23

0916806004
ref: 23

GASKET(6.2X11X1).2 (NAS)

€ 1.50

24-1

4154038A11
ref: 24-1
41540-38A12

HOLDER,BATTERY

€ 103.50

24-2

4154038A12
ref: 24-2

HOLDER,BATTERY

€ 103.50

25-1

0151710165
ref: 25-1
01550-1016A

BOLT

€ 2.50

25-2

0155010163
ref: 25-2
01550-1016A

BOLT

€ 2.50

26-1

0151706164
ref: 26-1
01550-0616A

BOLT

€ 2.50

26-2

0155006163
ref: 26-2
01550-0616A

BOLT

€ 2.50

27

0932012031
ref: 27

CUSHION

€ 3.00

28-1

0918008001
ref: 28-1
09180-08189

SPACER (8.8X12X11)

€ 2.00

28-2

0930108009
ref: 28-2

BUSH

€ 6.50
