STARTER CLUTCH

VS800GL INTRUDER 1996 (T) USA (E03)

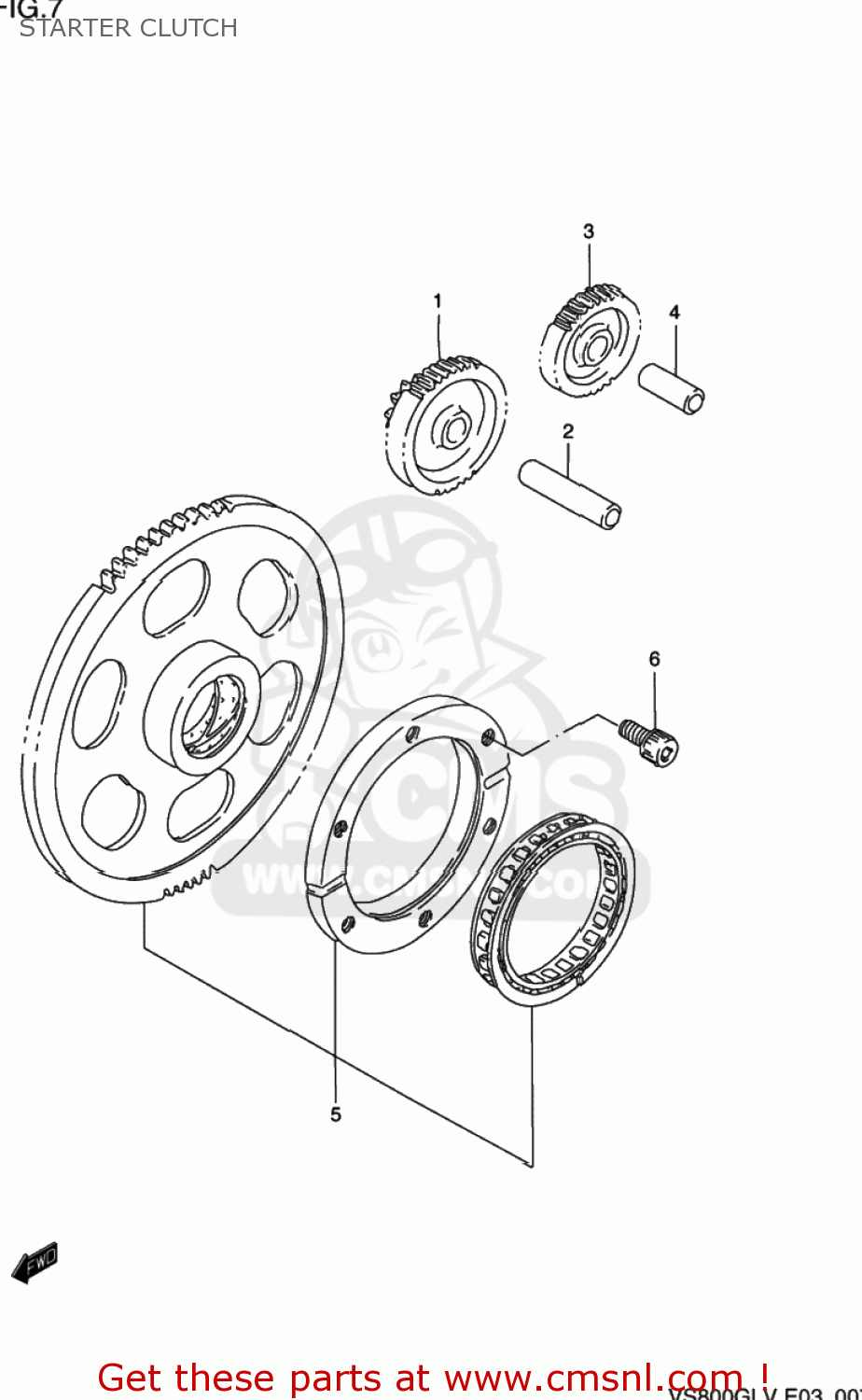

Starter clutch diagram VS800GL INTRUDER 1996 (T) USA (E03)

prices are in EUR

ref

part #

description

quantity

1261138A01
ref: 1

GEAR,STARTER IDLE NO.1

€ 57.50

2-1

0920610003
ref: 2-1
09202-10008

PIN

€ 9.00

2-2

0920210008
ref: 2-2

PIN,10X43

€ 9.00

1261138A11
ref: 3

GEAR,STARTER IDLE NO.2

€ 39.50

4-1

0920610004
ref: 4-1
09202-10006

PIN

€ 6.50

4-2

0920210006
ref: 4-2

PIN

€ 6.50

5-1

1260038830
ref: 5-1
12600-38832

CLUTCH SET,STARTER

€ 307.00

5-2

1260038831
ref: 5-2
12600-38832

CLUTCH SET,STARTER

€ 307.00

6-1

0910608043
ref: 6-1
07130-0816A

BOLT

€ 3.00

6-2

0713008163
ref: 6-2
07130-0816A

BOLT

€ 3.00
