OIL PUMP - FUEL PUMP
VS800GL INTRUDER 1996 (T) USA (E03)

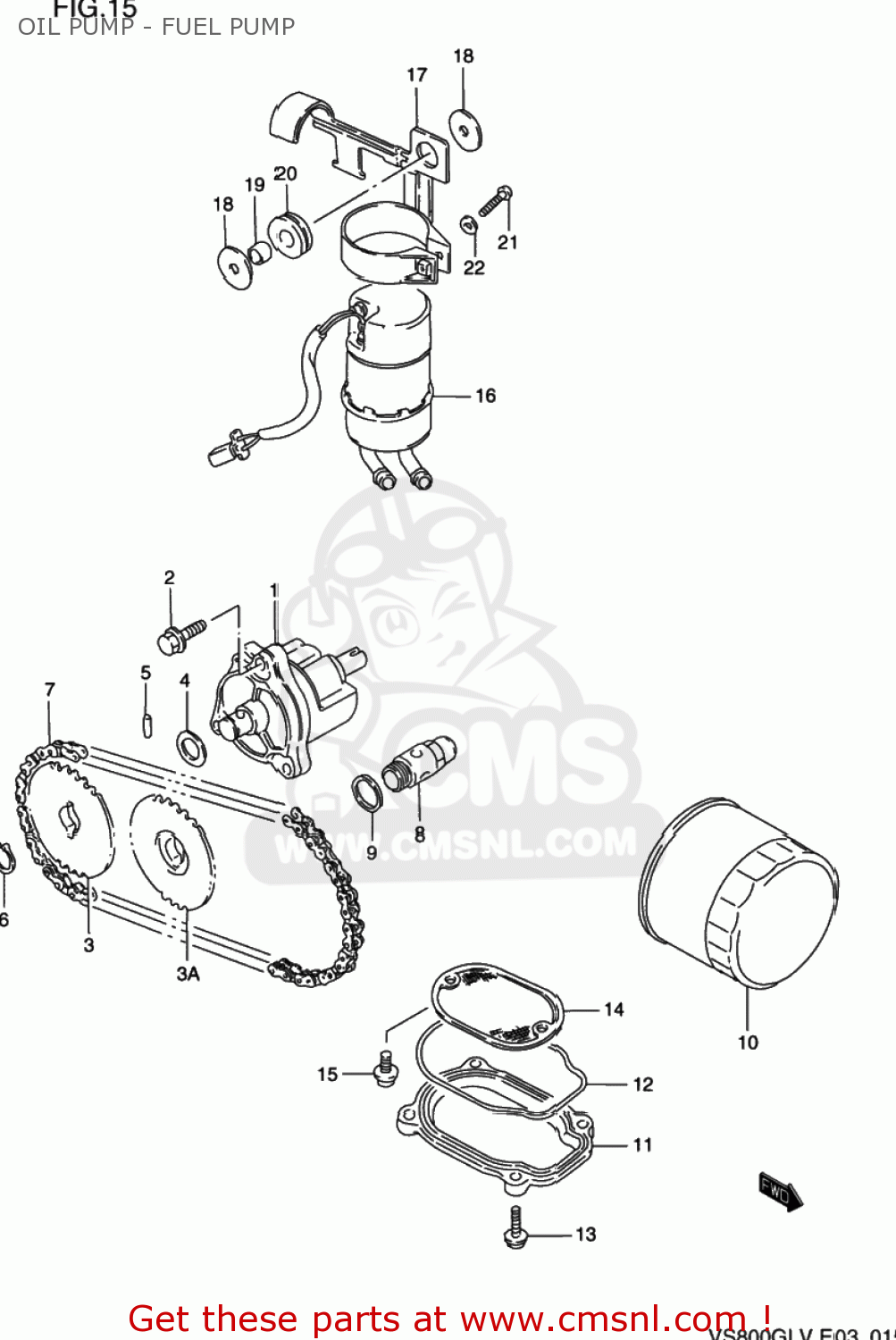

Oil pump - fuel pump diagram VS800GL INTRUDER 1996 (T) USA (E03)
OIL PUMP - FUEL PUMP VS800GL INTRUDER 1996 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1640038A01
ref: 1
PUMP ASSY,ENGINE OIL
€ 148.00
2-1
0151706257
ref: 2-1
01550-06257
BOLT 6X25
€ 2.50
2-2
0155006253
ref: 2-2
01550-0625A
BOLT
€ 2.50
3
1633138A00
ref: 3
SPROCKET,OIL PUMP DRIVEN
€ 21.00
3A
1633138A10
ref: 3A
SPROCKET,OIL PUMP DRIVEN
€ 29.00
4
0822112205
ref: 4
SHIM
€ 1.50
5
0926105006
ref: 5
PIN(5X18)
€ 1.50
6
0833131126
ref: 6
08331-3112A
CIRCLIP,12 MM
€ 2.00
7
1631038A00
ref: 7
CHAIN,OIL PUMP DRIVE
€ 19.50
8
1644024A01
ref: 8
VALVE ASSY,OIL RELIEF
€ 52.00
9
0916816002
ref: 9
GASKET(16X22X2) (NAS)
€ 2.00
10
1651006B01
ref: 10
16510-07J00
FILTER ASSEMBLY,ENGINE OIL
€ 12.50
11
1652338A00
ref: 11
CAP,OIL STRAINER
€ 19.50
12
1652838A00
ref: 12
O RING,OIL STRAINER CAP
€ 8.00
13-1
0151706207
ref: 13-1
01550-06207
BOLT 6X20
€ 2.50
13-2
0155006203
ref: 13-2
01550-0620A
BOLT
€ 2.50
14
1652038A00
ref: 14
STRAINER,ENGINE OIL
€ 7.50
15-1
0211275126
ref: 15-1
02112-7512A
SCREW
€ 2.50
15-2
0211275123
ref: 15-2
02112-7512A
SCREW
€ 2.50
16
1510038A10
ref: 16
PUMP ASSY,FUEL
€ 364.50
17
1511038A10
ref: 17
BRACKET,FUEL PUMP
€ 13.00
18
0916006004
ref: 18
09160-06134
WASHER (6.5X24X1.6)
€ 1.50
19
0918006082
ref: 19
SPACER(6.5X10.5X6.5)
€ 2.50
20
0932010014
ref: 20
CUSHION
€ 4.00
21-1
0211204208
ref: 21-1
02112-0420A
SCREW
€ 1.00
21-2
0214204203
ref: 21-2
02142-0420B
SCREW
€ 2.00
22
0832221047
ref: 22
08322-01047
WASHER 4MM
€ 2.00
