WIRING HARNESS (MODEL N/P/R/S)

VS800GL INTRUDER 1996 (T) USA (E03)

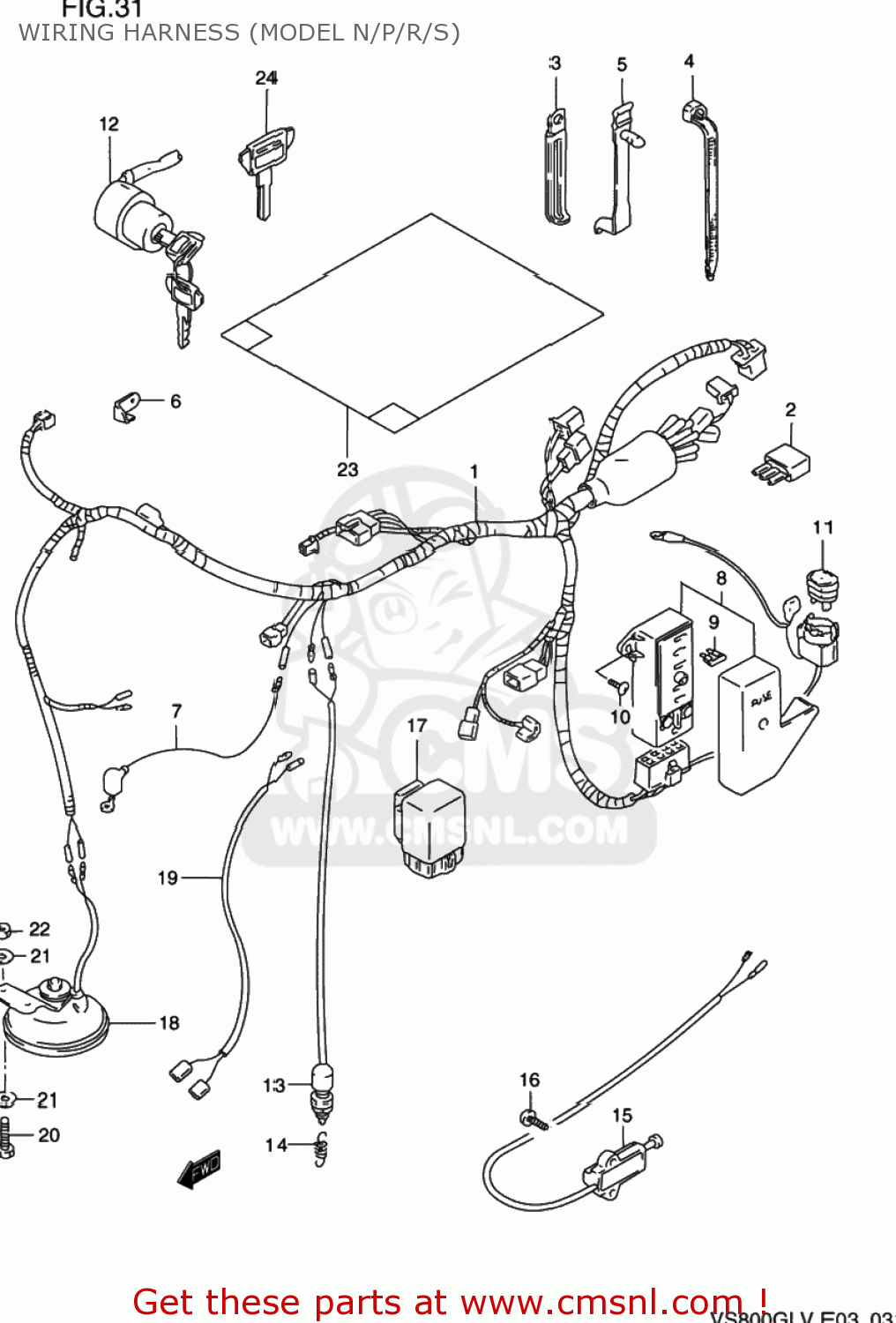

Wiring harness (model n/p/r/s) diagram VS800GL INTRUDER 1996 (T) USA (E03)

WIRING HARNESS (MODEL N/P/R/S) VS800GL INTRUDER 1996 (T) USA (E03)
WIRING HARNESS (MODEL N/P/R/S) VS800GL INTRUDER 1996 (T) USA (E03)
WIRING HARNESS (MODEL N/P/R/S) VS800GL INTRUDER 1996 (T) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
3661039A70
ref: 1-1
HARNESS,WIRING
€ 148.50
1-2
3661039A90
ref: 1-2
HARNESS,WIRING
€ 171.00
2
3661138A00
ref: 2
DIODE(STANLEY DE8804)
3661138A00
€ 13.00
3-1
0940405401
ref: 3-1
09404-06429
CLAMP
0940405401
€ 2.50
3-2
0940406206
ref: 3-2
09404-06432
CLAMP(L:45)
€ 2.50
3-3
0940406432
ref: 3-3
CLAMP(L:65)
0940406432
€ 2.50
3-4
0940406426
ref: 3-4
09404-06433
CLAMP
0940406426
€ 3.00
4-1
0940714403
ref: 4-1
CLAMP(L:125)
0940714403
€ 2.50
4-2
0940718403
ref: 4-2
09407-18402
CLAMP L:165
€ 2.50
5
0940705403
ref: 5
CLAMP,L:88
0940705403
€ 1.50
6
3668738A00
ref: 6
PLATE,COUPLER HOLDER
€ 2.00
7-1
3685138401
ref: 7-1
WIRE,WATER TEMPERATURE GAUGE
3685138401
€ 4.50
7-2
3685117E00
ref: 7-2
WIRE,WATER TEMP GAUGE LEAD
3685117E00
€ 7.50
8-1
3674038A00
ref: 8-1
BOX ASSY,FUSE
3674038A00
€ 75.00
8-2
3674039A00
ref: 8-2
BOX ASSY,FUSE
3674039A00
€ 93.50
9-1
0948110101
ref: 9-1
FUSE(10A)
0948110101
€ 2.50
9-2
0948110101
ref: 9-2
FUSE(10A)
0948110101
€ 2.50
9-3
0948125101
ref: 9-3
09481-25103
FUSE (25A)
0948125101
€ 2.50
10
0214206163
ref: 10
02142-0616A
SCREW
0214206163
€ 2.50
11
3675005A00
ref: 11
BREAKER ASSY,CIRCUT
3675005A00
€ 36.50
12-1
3711038A02
ref: 12-1
37110-38A04
SWITCH ASSEMBLY,IGNITION
3711038A02
€ 74.50
12-2
3711038A03
ref: 12-2
37110-38A04
SWITCH ASSEMBLY,IGNITION
€ 74.50
13-1
3774045D00
ref: 13-1
37740-31D00
SWITCH ASSY,STOP LAMP
3774045D00
€ 20.50
13-2
3774031D00
ref: 13-2
SWITCH ASSY,STOP LAMP
3774031D00
€ 20.50
14
0944306046
ref: 14
SPRING
0944306046
€ 3.50
15
3784039A21
ref: 15
37840-39A22
SWITCH ASSEMBLY,SIDE STAND
3784039A21
€ 87.50
16-1
0211276205
ref: 16-1
02112-7620B
SCREW
€ 2.50
16-2
0211276203
ref: 16-2
02112-7620B
SCREW
€ 2.50
17
3874039A00
ref: 17
38740-24X50
RELAY ASSEMBLY
€ 37.50
18
3850038A30
ref: 18
HORN ASSY
€ 87.50
19
3685224B10
ref: 19
WIRE,HORN LEAD
3685224B10
€ 5.50
20-1
0150006307
ref: 20-1
BOLT
0150006307
€ 2.50
20-2
0155006303
ref: 20-2
01550-0630A
BOLT
0155006303
€ 2.50
21-1
0832201067
ref: 21-1
WASHER
0832201067
€ 2.00
21-2
0832201063
ref: 21-2
08322-0106B
WASHER
0832201063
€ 2.00
22-1
0831000067
ref: 22-1
NUT
0831000067
€ 2.50
22-2
0831000063
ref: 22-2
08310-0006A
NUT 6MM
0831000063
€ 2.00
23
3661815D20
ref: 23
COVER,WIRING HARNESS
3661815D20
€ 12.00
24-1
3714603A00
ref: 24-1
KEY,BLANK(TYPE:C)
3714603A00
€ 6.00
24-2
3714603A10
ref: 24-2
KEY,BLANK(TYPE:D)
3714603A10
€ 6.00
24-3
3714603A20
ref: 24-3
KEY,BLANK(TYPE:E)
3714603A20
€ 6.00
24-4
3714603A30
ref: 24-4
KEY,BLANK(TYPE:F)
3714603A30
€ 6.00
