HEADLAMP
VS800GL INTRUDER 1996 (T) USA (E03)

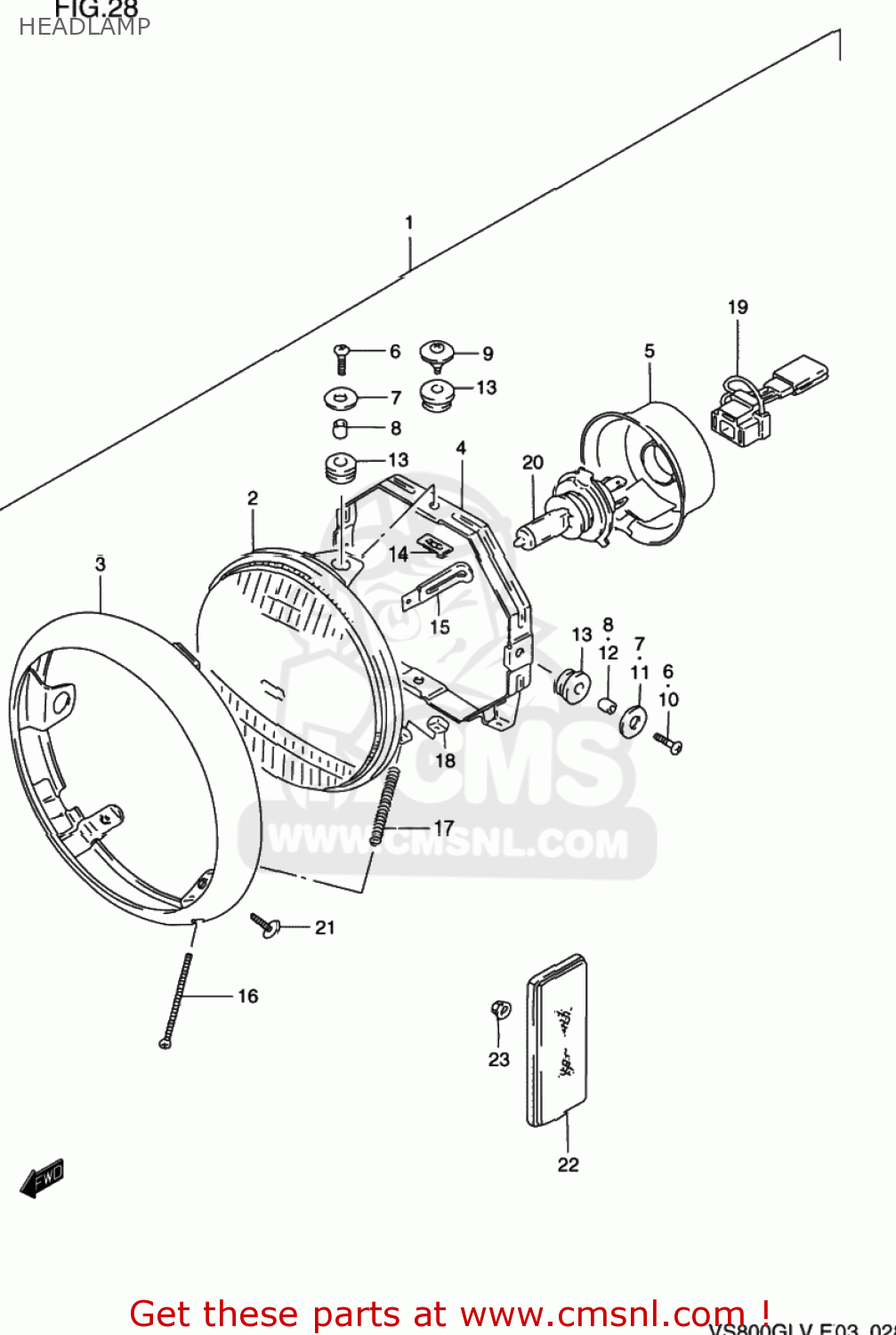

Headlamp diagram VS800GL INTRUDER 1996 (T) USA (E03)
HEADLAMP VS800GL INTRUDER 1996 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3510038A30999
ref: 1
35100-38A61-999
HEADLAMP ASSY
€ 236.00
2
3512138A30
ref: 2
UNIT,LAMP
€ 106.00
3
3511138A00
ref: 3
RIM
€ 27.00
4
3513038A00
ref: 4
RING,MOUNTING
€ 15.00
5
3517338A00
ref: 5
COVER,SOCKET
€ 12.50
6
0912505102
ref: 6
SCREW(5X14)
€ 2.50
7
3513845230
ref: 7
09160-05045
WASHER
€ 2.00
8
3513345230
ref: 8
SPACER
€ 2.00
9
3513638A00
ref: 9
SCREW,MOUNTING
€ 2.50
10
0912505102
ref: 10
SCREW(5X14)
€ 2.50
11
0916005003
ref: 11
09160-05045
WASHER (5.5X18X1)
€ 2.00
12
3513345230
ref: 12
SPACER
€ 2.00
13
3513945230
ref: 13
CUSHION
€ 1.50
14
3515548510
ref: 14
NUT
€ 2.00
15
0940406429
ref: 15
CLAMP(L:45)
€ 2.50
16-1
3515149430
ref: 16-1
09125-04020
SCREW,HEADLAMP ADJUST
€ 3.00
16-2
3515138A00
ref: 16-2
SCREW,ADJUSTING(4X50)
€ 2.50
17-1
3515449430
ref: 17-1
35154-31300
SPRING,HEADLAMP ADJUST
€ 2.00
17-2
3515431300
ref: 17-2
SPRING
€ 2.00
18
3513545600
ref: 18
NUT
€ 3.00
19
3685338A00
ref: 19
SOCKET
€ 10.00
20
0947112060
ref: 20
BULB(12V60/55W,H4)
€ 8.00
21-1
0912505068
ref: 21-1
SCREW(5X12)
€ 2.00
21-2
0214205127
ref: 21-2
SCREW
€ 1.50
22
3595043431
ref: 22
REFLEX REFLECTOR,FR SIDE
€ 12.00
23-1
0831610053
ref: 23-1
08316-1005A
NUT
€ 2.50
23-2
0831000053
ref: 23-2
08310-0005A
NUT
€ 2.50
