VS800GL INTRUDER 1997 (V) USA (E03)

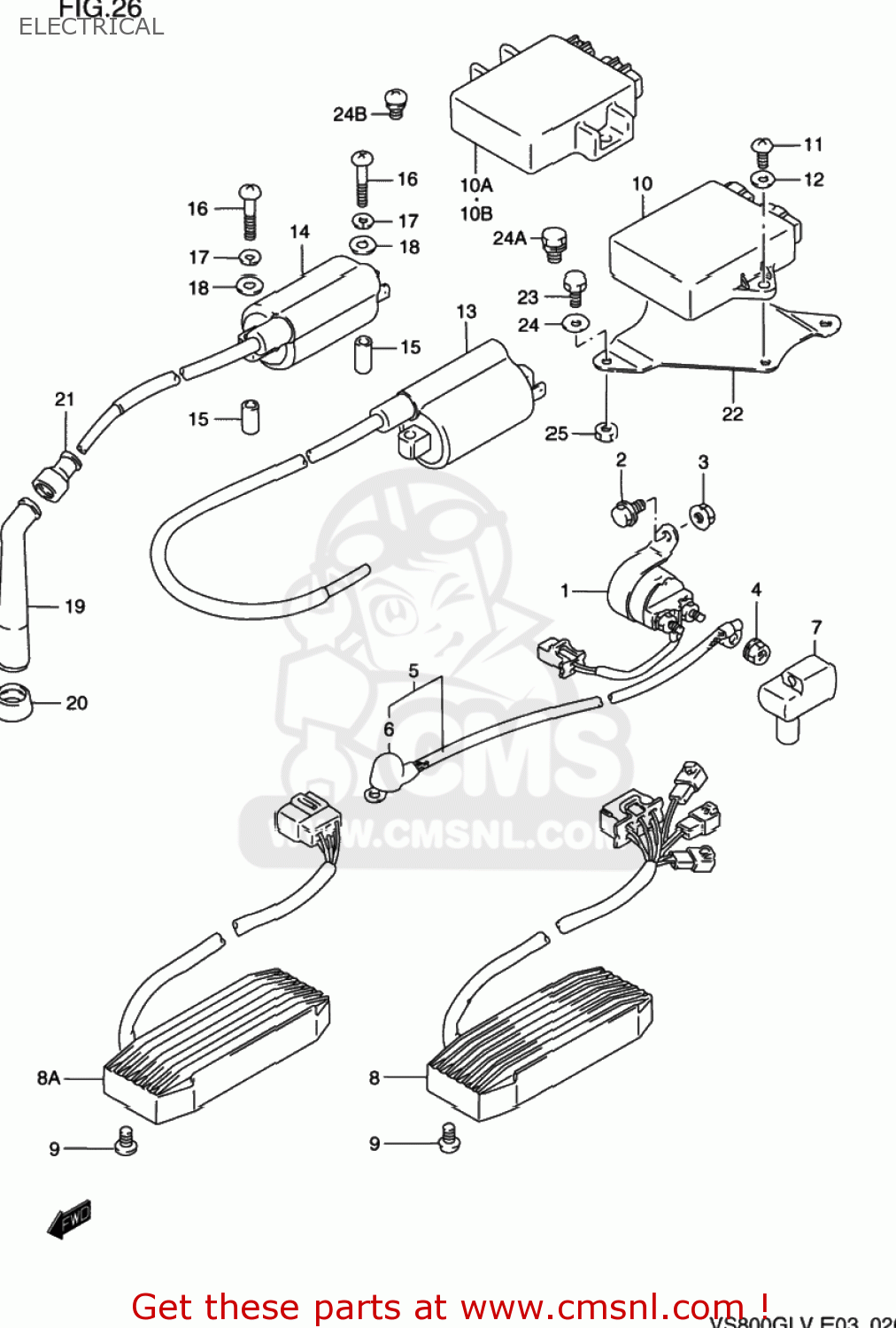

Electrical diagram VS800GL INTRUDER 1997 (V) USA (E03)
ELECTRICAL VS800GL INTRUDER 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3180015501
ref: 1
RELAY ASSY,STARTING MOTOR
€ 78.00
2-1
0151706106
ref: 2-1
01550-0610A
BOLT
€ 2.50
2-2
0155006103
ref: 2-2
01550-0610A
BOLT
€ 2.50
3
0831610063
ref: 3
08316-1006B
NUT
€ 2.50
4
0836135068
ref: 4
08361-3506A
NUT
€ 2.00
5
3385038A00
ref: 5
WIRE,STARTER MOTOR LEAD
€ 17.50
6-1
3186105300
ref: 6-1
31861-48B10
CAP,STARTER MOTOR TERMINAL
€ 4.50
6-2
3186148B10
ref: 6-2
CAP,STARTER MOTOR LEAD
€ 4.50
7-1
3186138A00
ref: 7-1
CAP,STARTER RELAY
€ 7.50
7-2
3186148B10
ref: 7-2
CAP,STARTER MOTOR LEAD
€ 4.50
7-3
3186138A00
ref: 7-3
CAP,STARTER RELAY
€ 7.50
8
3280038A00
ref: 8
RECTIFIER ASSY
€ 396.50
8A
3280012E01
ref: 8A
RECTIFIER ASSY
€ 368.00
9-1
0110706104
ref: 9-1
01500-0610B
BOLT
€ 2.00
9-2
0150006103
ref: 9-2
01500-0610B
BOLT
€ 2.00
10
3290038A10
ref: 10
IGNITER UNIT ASSEMBLY
€ 611.00
10A
3290038A30
ref: 10A
32900-38A31
IGNITER ASSEMBLY
€ 633.50
10B
3290038A31
ref: 10B
IGNITOR ASSY
€ 633.50
11-1
0211206126
ref: 11-1
02112-0612A
SCREW
€ 1.50
11-2
0214206123
ref: 11-2
02142-0612A
SCREW 6X12
€ 2.00
12
0832201063
ref: 12
08322-0106B
WASHER
€ 2.00
13-1
3341038A10
ref: 13-1
33410-38A11
COIL ASSEMBLY,IGNITION
€ 136.00
13-2
3341038A11
ref: 13-2
COIL ASSY,IGNITION
€ 136.00
14-1
3342038A10
ref: 14-1
33420-38A11
COIL ASSEMBLY,IGNITION
€ 150.00
14-2
3342038A11
ref: 14-2
COIL ASSY,IGNITION
€ 150.00
15
0918006144
ref: 15
SPACER(6.4X10X19)
€ 5.00
16
0912505053
ref: 16
SCREW (5X38)
€ 1.50
17
0832121056
ref: 17
08321-0105A
LOCK WASHER
€ 3.00
18-1
0832221056
ref: 18-1
08322-0105A
WASHER
€ 2.50
18-2
0832201053
ref: 18-2
08322-0105A
WASHER
€ 2.50
18-3
0832221056
ref: 18-3
08322-0105A
WASHER
€ 2.50
18-4
0832201053
ref: 18-4
08322-0105A
WASHER
€ 2.50
18-4
0832201053
ref: 18-4
08322-0105A
WASHER
€ 2.50
19
3351011410
ref: 19
CAP,SPARK PLUG
€ 24.50
20
3354124510
ref: 20
33541-47D00
SEAL,SPARK PLUG CAP
€ 7.00
21-1
3354238B00
ref: 21-1
SEAL,HIGH TENSION CORD
€ 4.50
21-2
3354298000
ref: 21-2
33542-38B00
SEAL,SPARK PLU
€ 4.50
21-3
3354238B00
ref: 21-3
SEAL,HIGH TENSION CORD
€ 4.50
22
3291038A10
ref: 22
PLATE,IGNITOR FITING
€ 7.00
23
0150006123
ref: 23
01500-0612A
BOLT
€ 2.00
24
0832101063
ref: 24
08321-0106A
LOCK WASHER
€ 2.00
24A
0157006123
ref: 24A
01570-0612A
BOLT
€ 1.50
24B
0211236123
ref: 24B
02112-3612A
BOLT
€ 2.00
25-1
0831626066
ref: 25-1
08316-1006B
NUT
€ 2.00
25-2
0831620063
ref: 25-2
08316-2006A
NUT
€ 2.00
