STEERING STEM (MODEL N/P/R/S)

VS800GL INTRUDER 1997 (V) USA (E03)

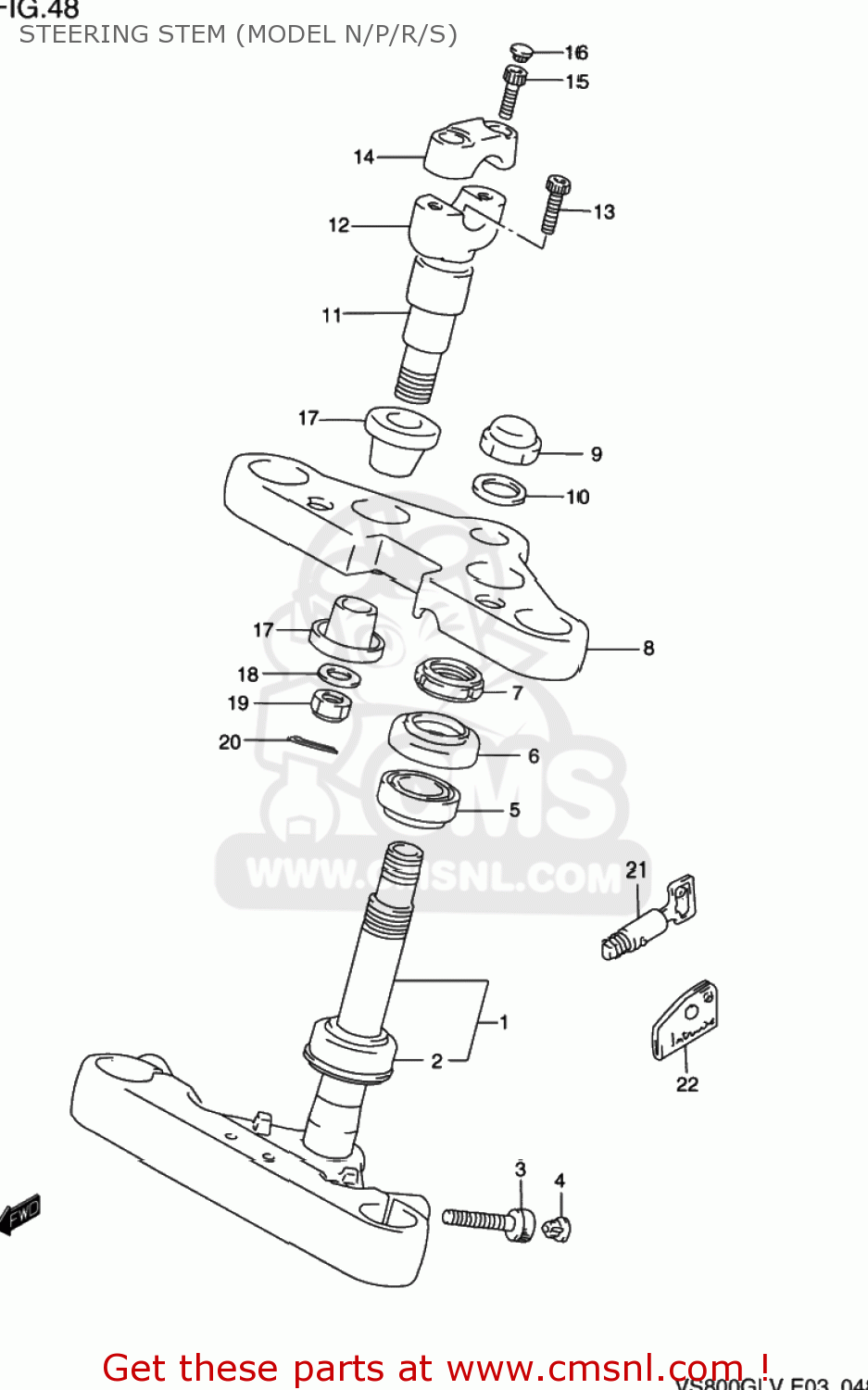

Steering stem (model n/p/r/s) diagram VS800GL INTRUDER 1997 (V) USA (E03)

STEERING STEM (MODEL N/P/R/S) VS800GL INTRUDER 1997 (V) USA (E03)
STEERING STEM (MODEL N/P/R/S) VS800GL INTRUDER 1997 (V) USA (E03)
STEERING STEM (MODEL N/P/R/S) VS800GL INTRUDER 1997 (V) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
5141039A20
ref: 1-1
51410-39A21
STEM,STEERING
€ 594.00
1-2
5141039A21
ref: 1-2
STEM,STEERING
5141039A21
€ 594.00
2
0926530009
ref: 2
BEARING(30X55X17)
0926530009
€ 49.50
3
5135238A00
ref: 3
07130-10307
BOLT,STEERING STEM HEAD
€ 4.50
4
0925008014
ref: 4
CAP(OD:12)
0925008014
€ 3.50
5
0926525008
ref: 5
09265-25019
TAPER,ROLLER BEARING
0926525008
€ 48.50
6-1
5164349001
ref: 6-1
51643-49002
DUST SEAL,STEERING,UPPER
5164349001
€ 7.50
6-2
5164349002
ref: 6-2
SEAL,STEERING UPR DUST
5164349002
€ 7.50
7
5163128000
ref: 7
NUT,STEERING STEM(25X44X10)
5163128000
€ 12.50
8
5131139A00
ref: 8
BRACKET,UPR
5131139A00
€ 446.50
9-1
5135338A01
ref: 9-1
51353-24B00
NUT,CAP
€ 21.50
9-2
5135324B00
ref: 9-2
NUT,CAP
5135324B00
€ 21.50
10-1
5135438A01
ref: 10-1
51356-24B01
WASHER
€ 3.00
10-2
5135417C00
ref: 10-2
51356-24B01
WASHER
€ 3.00
10-3
5135624B01
ref: 10-3
WASHER(22.5X32X1.6)
5135624B01
€ 3.00
11
5623138A50
ref: 11
STAY,HANDLE
5623138A50
€ 49.50
12
5622138A01
ref: 12
HOLDER,HANDLE LWR
5622138A01
€ 65.00
13
0713010257
ref: 13
BOLT
0713010257
€ 3.00
14
5621138A01
ref: 14
HOLDER,HANDLE UPR
5621138A01
€ 45.00
15
0711008305
ref: 15
07130-0830A
BOLT, REAR (8X30)
0711008305
€ 3.00
16
0925006009
ref: 16
CAP(OD:14.5)
0925006009
€ 3.50
17
5624038A41
ref: 17
56240-38A42
CUSHION
5624038A41
€ 31.50
18
5135438A40
ref: 18
WASHER
5135438A40
€ 9.00
19
0915910027
ref: 19
NUT
0915910027
€ 3.00
20
5118839A00
ref: 20
PIN
€ 4.50
21
5190038810
ref: 21
LOCK SET,STEERING
5190038810
€ 168.50
22
5192038A00
ref: 22
CASE,STEERING KEY
5192038A00
€ 10.50
