SEAT (MODEL T/V)
VS800GL INTRUDER 1997 (V) USA (E03)

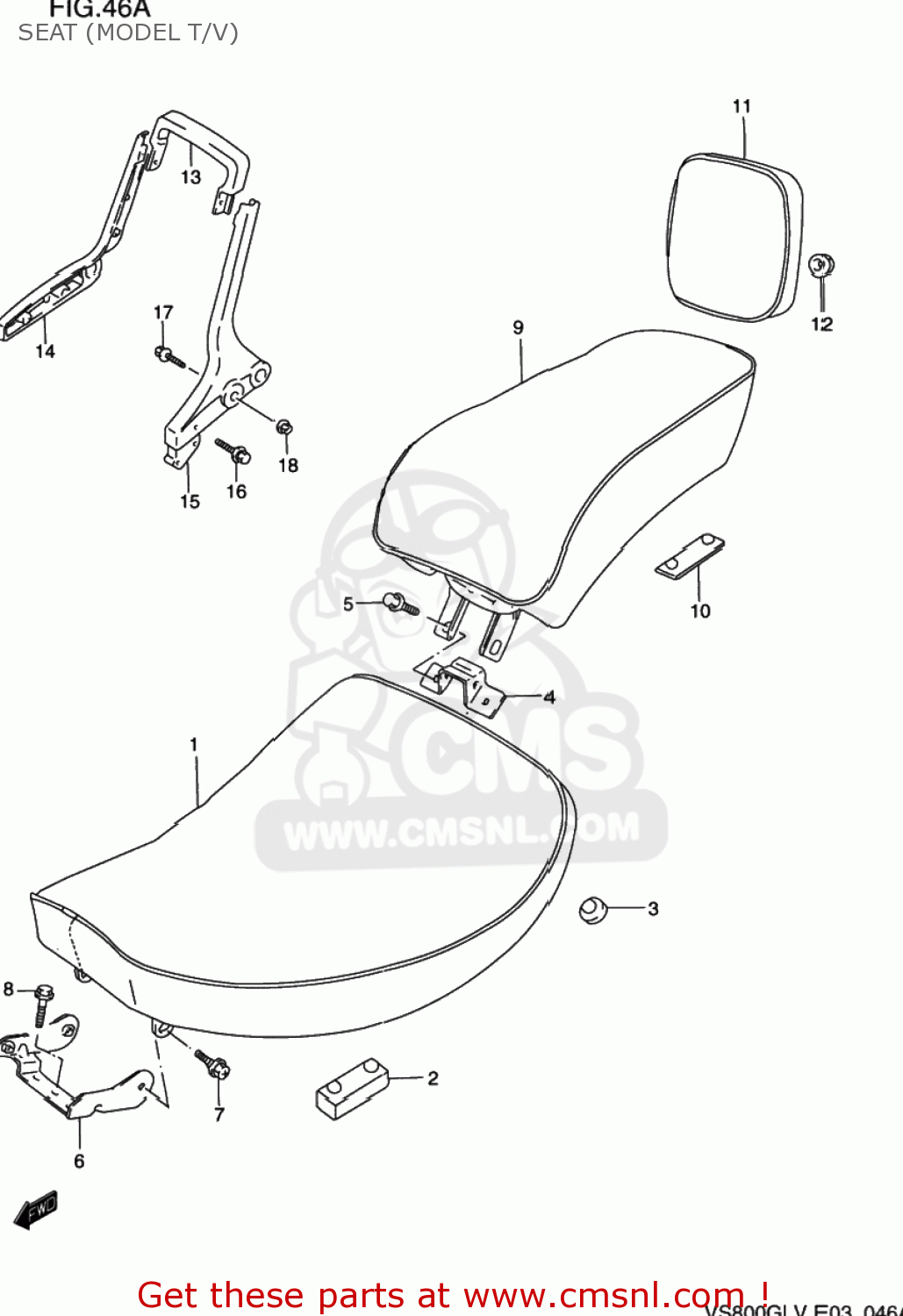

Seat (model t/v) diagram VS800GL INTRUDER 1997 (V) USA (E03)
SEAT (MODEL T/V) VS800GL INTRUDER 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4510038A60E7T
ref: 1
SEAT ASSY
€ 417.50
2
4514943500
ref: 2
CUSHION,SEAT
€ 3.00
3
0932110012
ref: 3
CUSHION
€ 3.00
4
4511938A00
ref: 4
PLATE,FR SEAT HOOK & RR
€ 7.50
5
0911106066
ref: 5
BOLT(6X16)
€ 2.50
6
4521038A03
ref: 6
BRACKET,SEAT FR
€ 18.50
7
0911106066
ref: 7
BOLT(6X16)
€ 2.50
8
0155006163
ref: 8
01550-0616A
BOLT
€ 2.50
9
4530038A60E7T
ref: 9
SEAT ASSY,PILLION
€ 172.50
10
4514914500
ref: 10
CUSHION
€ 6.50
11
4535038A60E7T
ref: 11
PAD ASSY,SEAT
€ 104.50
12
0932009026
ref: 12
09320-09045
CUSHION
€ 4.00
13
4621138B01
ref: 13
HANDLE,PILLION RIDER UPR
€ 69.00
14-1
4621238A21
ref: 14-1
46212-38A50
HANDLE,PILLION RIDER,RIGHT
€ 139.50
14-2
4621238A31
ref: 14-2
HANDLE,PILLION RIDER,R
€ 95.50
15-1
4621338A21
ref: 15-1
HANDLE,PILLION RIDER,L
€ 95.50
15-2
4621338A31
ref: 15-2
HANDLE,PILLION RIDER
€ 95.50
16
0158006353
ref: 16
01580-0635B
BOLT
€ 3.50
17
0158008453
ref: 17
01580-0845B
BOLT
€ 4.00
18
0831610083
ref: 18
08316-1008B
NUT
€ 3.00
