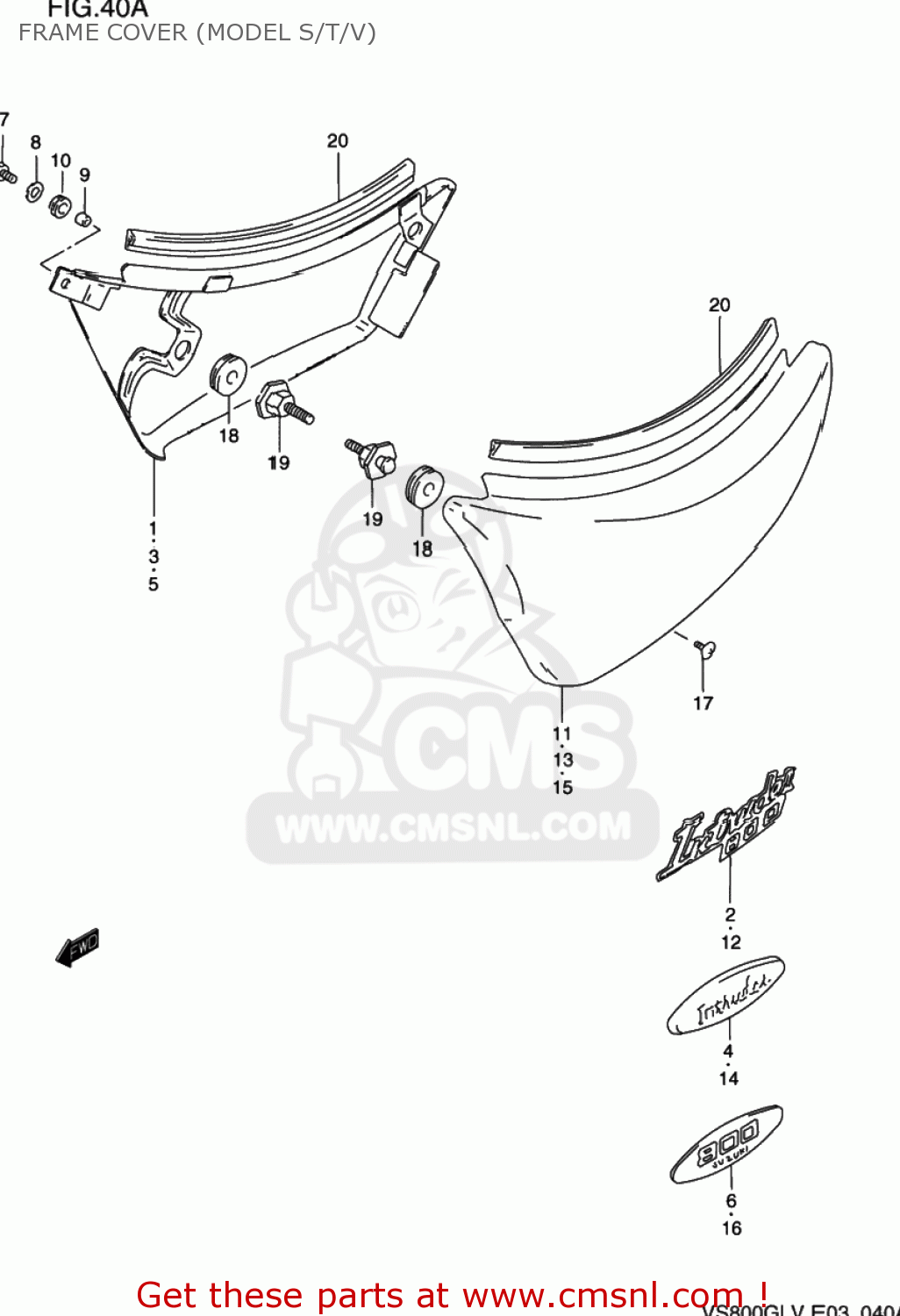

FRAME COVER (MODEL S/T/V)

ref

part #

description

quantity

1-1

4710039A3020F
ref: 1-1
47110-38A00-20F

COVER ASSEMBLY,FRAME,RIGHT

€ 114.00

1-2

4710039A3033J
ref: 1-2
47110-38A00-33J

COVER ASSEMBLY,FRAME,RIGHT

€ 245.00

2-1

6813139A10C1L
ref: 2-1

EMBLEM,FRAME COVER

€ 28.50

2-2

6813139A10C1M
ref: 2-2

EMBLEM,FRAME COVER

€ 25.50

3-1

4711038A0020F
ref: 3-1

COVER,FRAME,R(MAROON)

€ 114.00

3-2

4711038A001ZV
ref: 3-2

COVER COMP,FRAME,RIGHT

€ 113.50

4

6813139E00
ref: 4

EMBLEM,FRAME COVER

€ 36.00

5-1

4711038A0033J
ref: 5-1

COVER,FRAME,R(BLACK)

€ 245.00

5-2

4711038A0019A
ref: 5-2

COVER,FRAME,R(RED)

€ 112.50

6

6813138E00
ref: 6

EMBLEM,FRAME COVER

€ 28.50

7

0155006167
ref: 7

BOLT

€ 1.50

8

0916006084
ref: 8

WASHER(6.5X18X1.6)

€ 2.00

9

0918006246
ref: 9

SPACER(6.1X8X5.2)

€ 2.50

10

0932006017
ref: 10

CUSHION

€ 3.00

11-1

4720039A3020F
ref: 11-1
47210-38A00-20F

COVER ASSEMBLY,FRAME,LEFT

€ 259.00

11-2

4720039A3033J
ref: 11-2
47210-38A00-33J

COVER ASSEMBLY,FRAME,LEFT

€ 481.50

12-1

6813139A10C1L
ref: 12-1

EMBLEM,FRAME COVER

€ 28.50

12-2

6813139A10C1M
ref: 12-2

EMBLEM,FRAME COVER

€ 25.50

13-1

4721038A0020F
ref: 13-1

COVER COMP,FRAME,LEFT

€ 259.00

13-2

4721038A001ZV
ref: 13-2

COVER,FRAME,L(GREEN)

€ 120.50

14

6813139E00
ref: 14

EMBLEM,FRAME COVER

€ 36.00

15-1

4721038A0033J
ref: 15-1

COVER,FRAME,L(BLACK)

€ 481.50

15-2

4721038A0019A
ref: 15-2

COVER,FRAME,L(RED)

€ 259.00

16

6813138E00
ref: 16

EMBLEM,FRAME COVER

€ 28.50

17

0214206103
ref: 17
02142-0610A

SCREW 6X10

€ 2.00

18

0932008013
ref: 18

CUSHION

€ 4.00

19

4725038A01
ref: 19

BOSS,FRAME COVER

€ 6.50

20

4721838A00
ref: 20
68241-04X50-300

MOLDING, FRAME COVER

€ 6.00
