AIR CLEANER (FRONT)

VS800GL INTRUDER 1999 (X) USA (E03)

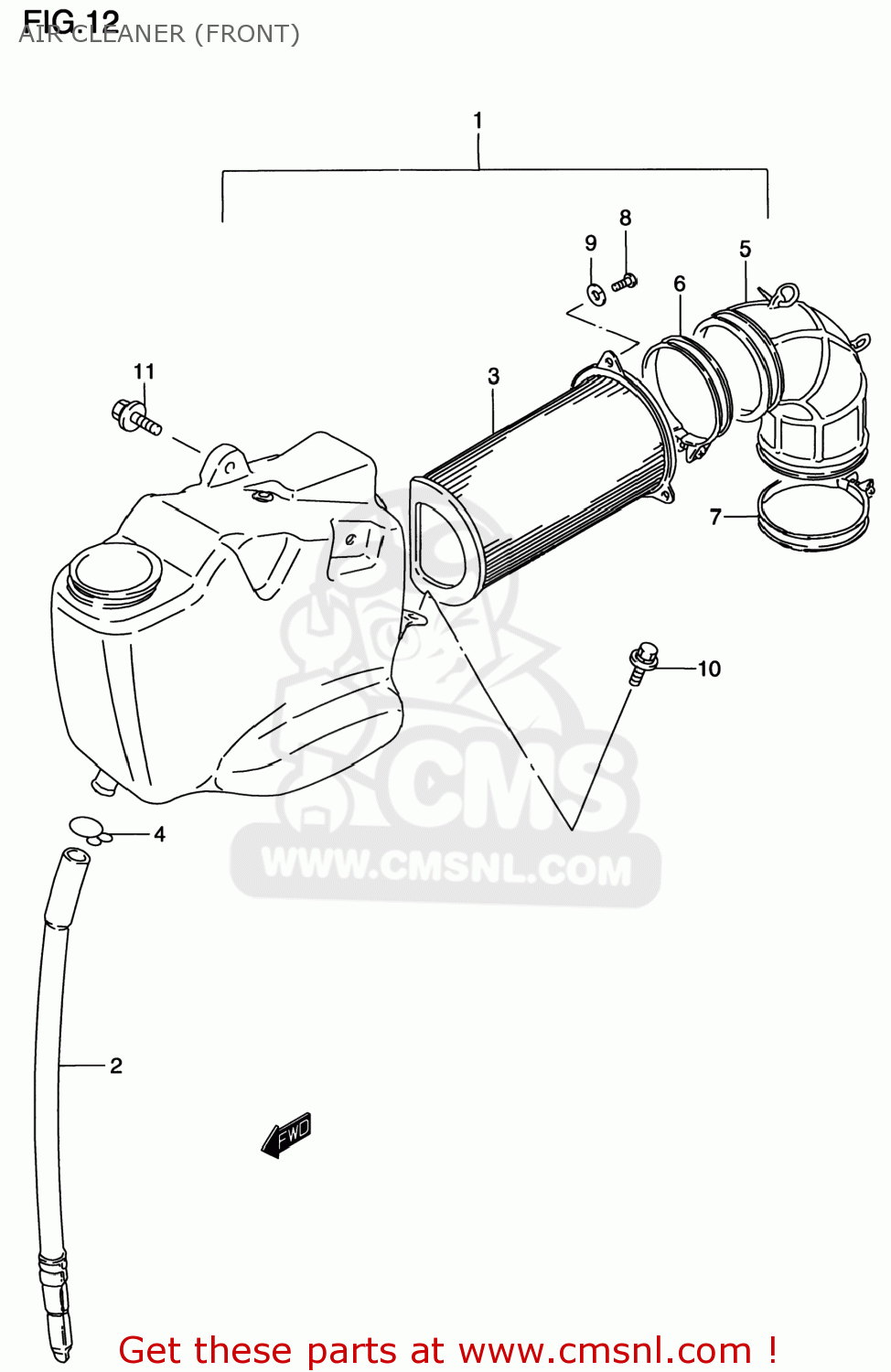

Air cleaner (front) diagram VS800GL INTRUDER 1999 (X) USA (E03)

AIR CLEANER (FRONT) VS800GL INTRUDER 1999 (X) USA (E03)

AIR CLEANER (FRONT) VS800GL INTRUDER 1999 (X) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1370038A01
ref: 1

CLEANER ASSY,AIR FR

€ 177.50

2

1387011458
ref: 2

TUBE,DRAIN

€ 13.50

3

1378038A01
ref: 3

FILTER ASSY

€ 25.00

4

0940113409
ref: 4

CLIP

€ 2.50

5

1388138A00
ref: 5

TUBE,AIR CLEANER OUTLET

€ 28.00

6

0940256208
ref: 6
09402-56901

CLAMP

€ 3.50

7

0940258208
ref: 7

CLAMP

€ 5.50

8

0211204083
ref: 8
02112-0408A

SCREW

€ 2.00

9

0832101043
ref: 9
08321-0104A

WASHER,LOCK

€ 2.00

10

0158006163
ref: 10
01580-0616A

BOLT

€ 2.50

11

0158006203
ref: 11
01580-0620B

BOLT, REAR

€ 2.50
