STARTER CLUTCH

VS800GL INTRUDER 1999 (X) USA (E03)

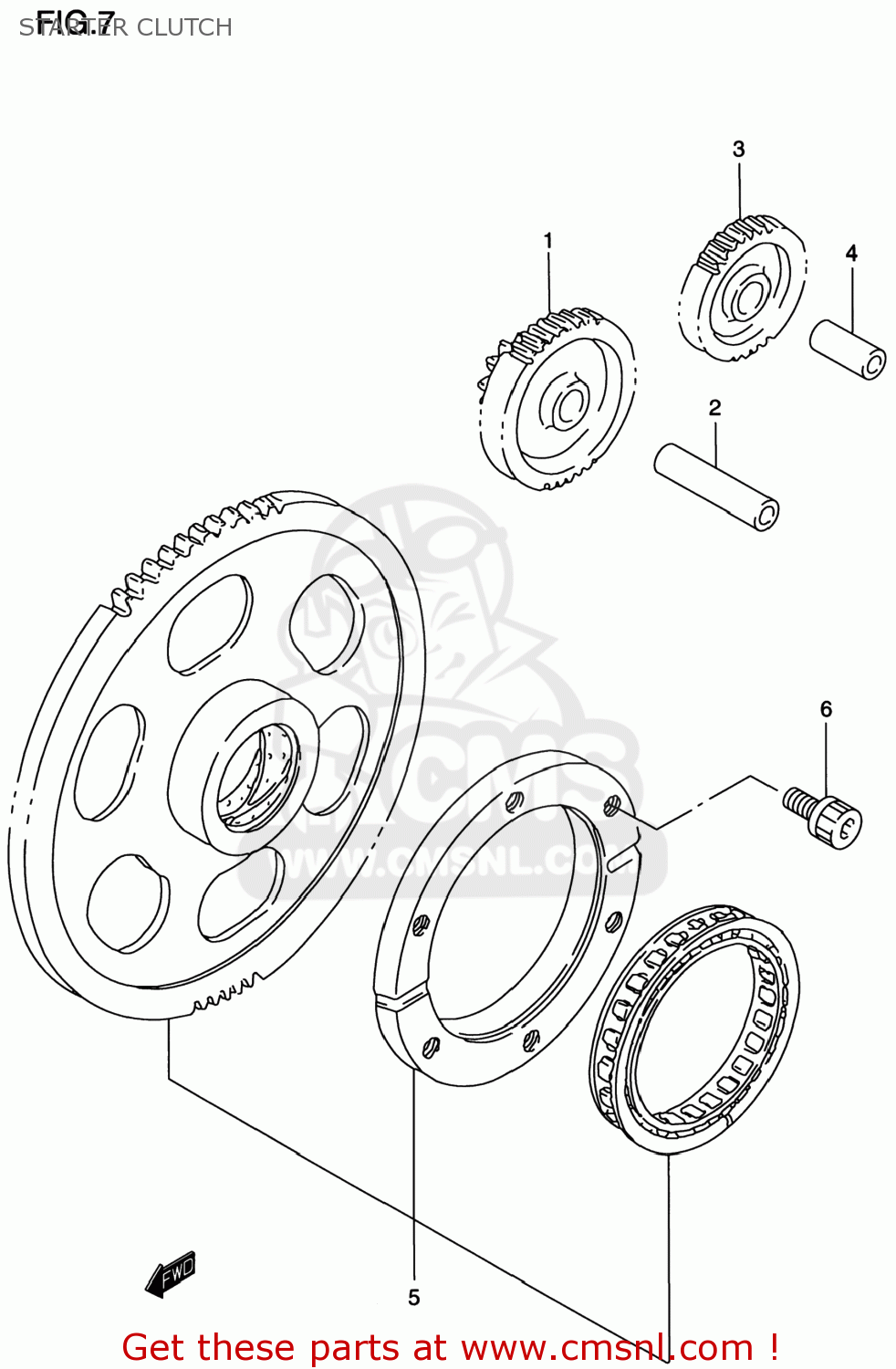

Starter clutch diagram VS800GL INTRUDER 1999 (X) USA (E03)

STARTER CLUTCH VS800GL INTRUDER 1999 (X) USA (E03)

STARTER CLUTCH VS800GL INTRUDER 1999 (X) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1261138A01
ref: 1

GEAR,STARTER IDLE NO.1

€ 57.50

2

0920210008
ref: 2

PIN,10X43

€ 9.00

3

1261138A11
ref: 3

GEAR,STARTER IDLE NO.2

€ 39.50

4

0920210006
ref: 4

PIN

€ 6.50

5

1260038831
ref: 5
12600-38832

CLUTCH SET,STARTER

€ 307.00

6

0713008163
ref: 6
07130-0816A

BOLT

€ 3.00
