SPEEDOMETER
VS800GL INTRUDER 1999 (X) USA (E03)

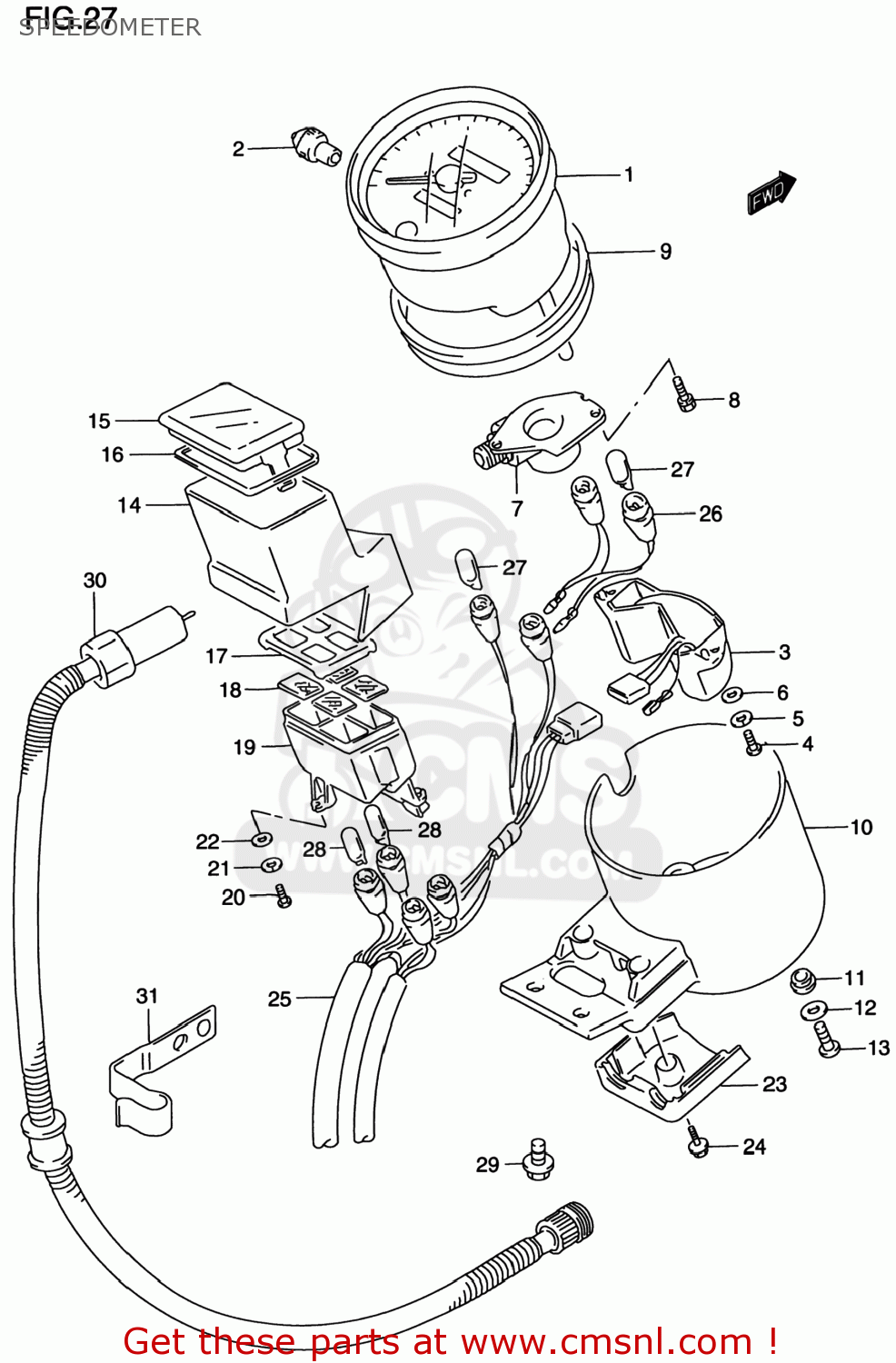

Speedometer diagram VS800GL INTRUDER 1999 (X) USA (E03)
SPEEDOMETER VS800GL INTRUDER 1999 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3411039AM0
ref: 1-1
34110-39AM1
SPEEDOMETER (MILE/KILO)
€ 339.50
1-2
3411039AM1
ref: 1-2
SPEEDOMETER(MILE/KILO)
€ 339.50
1-3
3411039AP0
ref: 1-3
SPEEDOMETER(MILE/KILO)
€ 0.00
1-4
3411039AL0
ref: 1-4
SPEEDOMETER(KILO)
€ 440.00
1-5
3411039AN0
ref: 1-5
SPEEDOMETER
€ 603.00
2
3412439A10
ref: 2
KNOB,TRIP
€ 14.50
3
3449039A10
ref: 3
UNIT,WATER TEMP
€ 222.00
4
0211203083
ref: 4
02112-0308A
SCREW
€ 1.50
5
0832121033
ref: 5
08321-2103B
WASHER,LOCK
€ 1.50
6
0832201033
ref: 6
08322-0103B
WASHER
€ 1.50
7
3413119B00
ref: 7
BOX,GEAR
€ 134.00
8
0211234103
ref: 8
02112-3410A
SCREW
€ 2.00
9
3428839A00
ref: 9
CUSHION
€ 14.00
10
3419339A20
ref: 10
COVER,METER
€ 182.00
11
3418905A30
ref: 11
CUSHION,METER
€ 4.50
12
3418138A00
ref: 12
WASHER
€ 3.50
13
0211204087
ref: 13
SCREW
€ 1.50
14
3638139A20
ref: 14
BOX,PILOT
€ 98.00
15
3639339AJ0
ref: 15
LENS,PILOT BOX
€ 14.50
16
3639538A00
ref: 16
CUSHION
€ 7.00
17
3638638A00
ref: 17
PLATE,PILOT LENS
€ 6.50
18
3630038850
ref: 18
LENS SET,PILOT LAMP
€ 11.50
19
3638238B30
ref: 19
CASE,PILOT LAMP
€ 19.50
20
0211203083
ref: 20
02112-0308A
SCREW
€ 1.50
21
0832121033
ref: 21
08321-2103B
WASHER,LOCK
€ 1.50
22
0832201033
ref: 22
08322-0103B
WASHER
€ 1.50
23
3415239A21
ref: 23
COVER,PILOT BOX
€ 67.50
24
0211274083
ref: 24
02112-7408B
SCREW
€ 3.50
25
3417339AC0
ref: 25
SOCKET,METER NO.1
€ 119.00
26
3417439AJ0
ref: 26
SOCKET
€ 20.50
27
0947112103
ref: 27
BULB(12V3W,T6.5)
€ 2.50
28
0947112108
ref: 28
BULB(12V1.7W,T6.5)
€ 2.00
29
0216206163
ref: 29
02162-0616B
SCREW
€ 2.50
30
3491039A10
ref: 30
CABLE ASSY,SPEEDOMETER
€ 134.00
31
3493838A02
ref: 31
GUIDE,SPEEDOMETER CABLE
€ 9.50
