REAR COMBINATION LAMP

VS800GL INTRUDER 1999 (X) USA (E03)

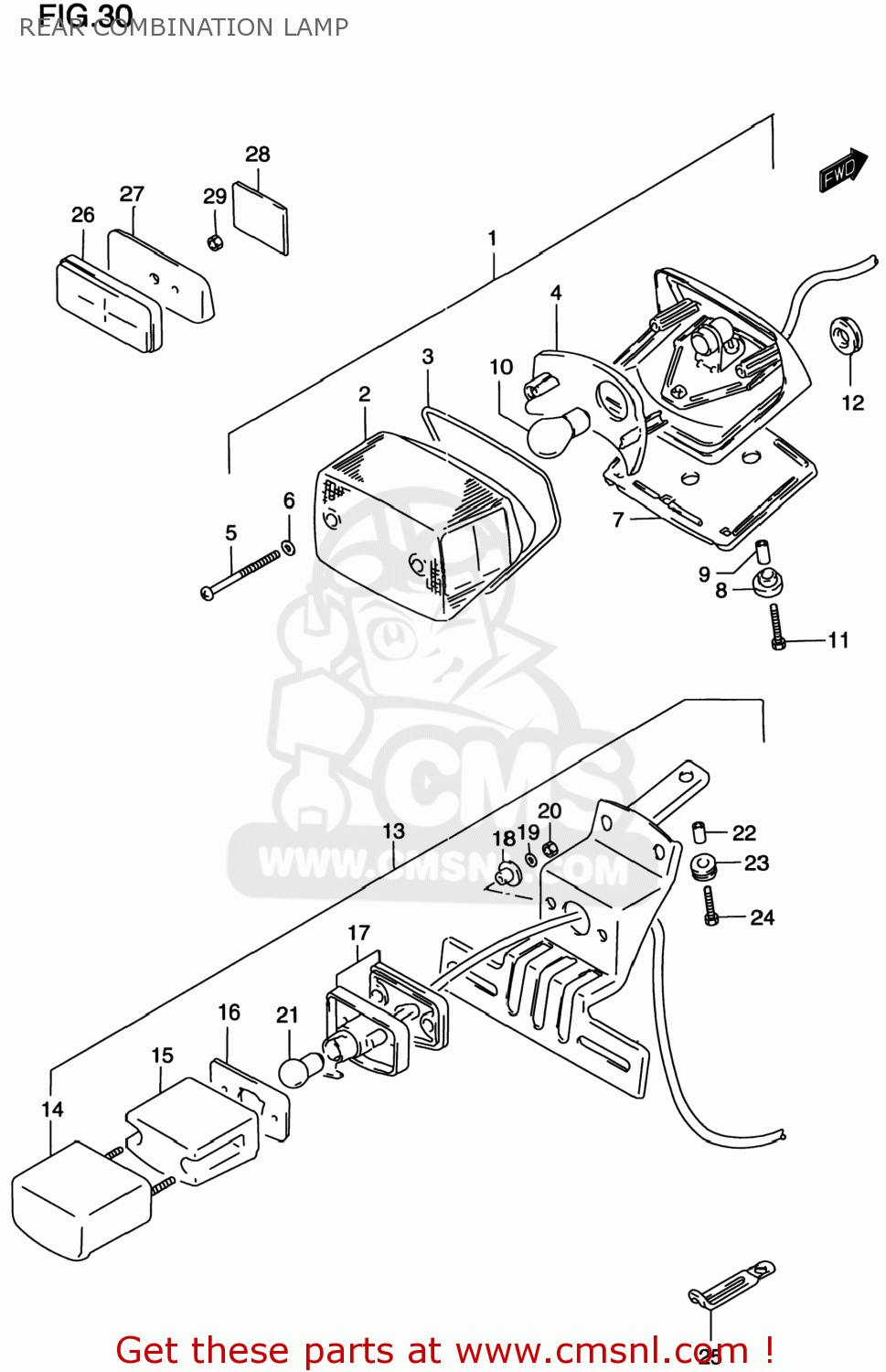

Rear combination lamp diagram VS800GL INTRUDER 1999 (X) USA (E03)

REAR COMBINATION LAMP VS800GL INTRUDER 1999 (X) USA (E03)
REAR COMBINATION LAMP VS800GL INTRUDER 1999 (X) USA (E03)
REAR COMBINATION LAMP VS800GL INTRUDER 1999 (X) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3571039A00999
ref: 1
LAMP ASSY,RR COMBINATION
€ 271.50
2
3571238A30
ref: 2
LENS
3571238A30
€ 54.50
3
3571338A00
ref: 3
35713-31D00
GASKET (NAS)
3571338A00
€ 9.50
4
3571438A00
ref: 4
REFLECTOR
€ 16.50
5
3572344130
ref: 5
SCREW
3572344130
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
3562743010
€ 2.00
7
3576538A00
ref: 7
CUSHION
3576538A00
€ 13.50
8
3576426470
ref: 8
CUSHION
3576426470
€ 2.50
9
3576637190
ref: 9
SPACER
3576637190
€ 2.00
10
0947112128
ref: 10
BULB(12V21/5W,BF141-49642A)
0947112128
€ 6.00
11
0911606093
ref: 11
BOLT(6X25)
0911606093
€ 2.00
12-1
0930809013
ref: 12-1
GROMMET
€ 2.00
12-2
0930809004
ref: 12-2
GROMMET
€ 0.00
13
3591038A33
ref: 13
LAMP ASSY,LICENSE
3591038A33
€ 149.00
14
3591738A20
ref: 14
COVER,LICENSE LAMP
3591738A20
€ 121.50
15
3591238A30
ref: 15
LENS
3591238A30
€ 11.50
16
3591338A30
ref: 16
GASKET,LICENSE LAMP (NAS)
3591338A30
€ 2.00
17
3591538A31
ref: 17
HOUSING,LICENSE LAMP
3591538A31
€ 39.50
18
3576638A30
ref: 18
SPACER
3576638A30
€ 2.00
19
0832101043
ref: 19
08321-0104A
WASHER,LOCK
0832101043
€ 2.00
20
0831000047
ref: 20
NUT
0831000047
€ 2.00
21
0947112141
ref: 21
BULB(12V8W)
0947112141
€ 7.00
22
3576638A00
ref: 22
SPACER
3576638A00
€ 3.00
23
3576538A30
ref: 23
CUSHION
3576538A30
€ 4.00
24
0911606010
ref: 24
BOLT(6X20)
0911606010
€ 2.00
25
0940406429
ref: 25
CLAMP(L:45)
€ 2.50
26-1
3597024D60
ref: 26-1
REFLECTOR ASSY,RR
3597024D60
€ 19.50
26-2
3597044A00
ref: 26-2
REFLEX REFLECTOR,RR
3597044A00
€ 11.50
27
3597738B30
ref: 27
SPACER,RR REFLECTOR
3597738B30
€ 3.00
28
6826238A00
ref: 28
TAPE,TOOL BAG PROTECTOR
6826238A00
€ 3.50
29-1
0831000053
ref: 29-1
08310-0005A
NUT
€ 2.50
29-2
0831000053
ref: 29-2
08310-0005A
NUT
€ 2.50
