FRAME COVER (MODEL Y)

VS800GL INTRUDER 1999 (X) USA (E03)

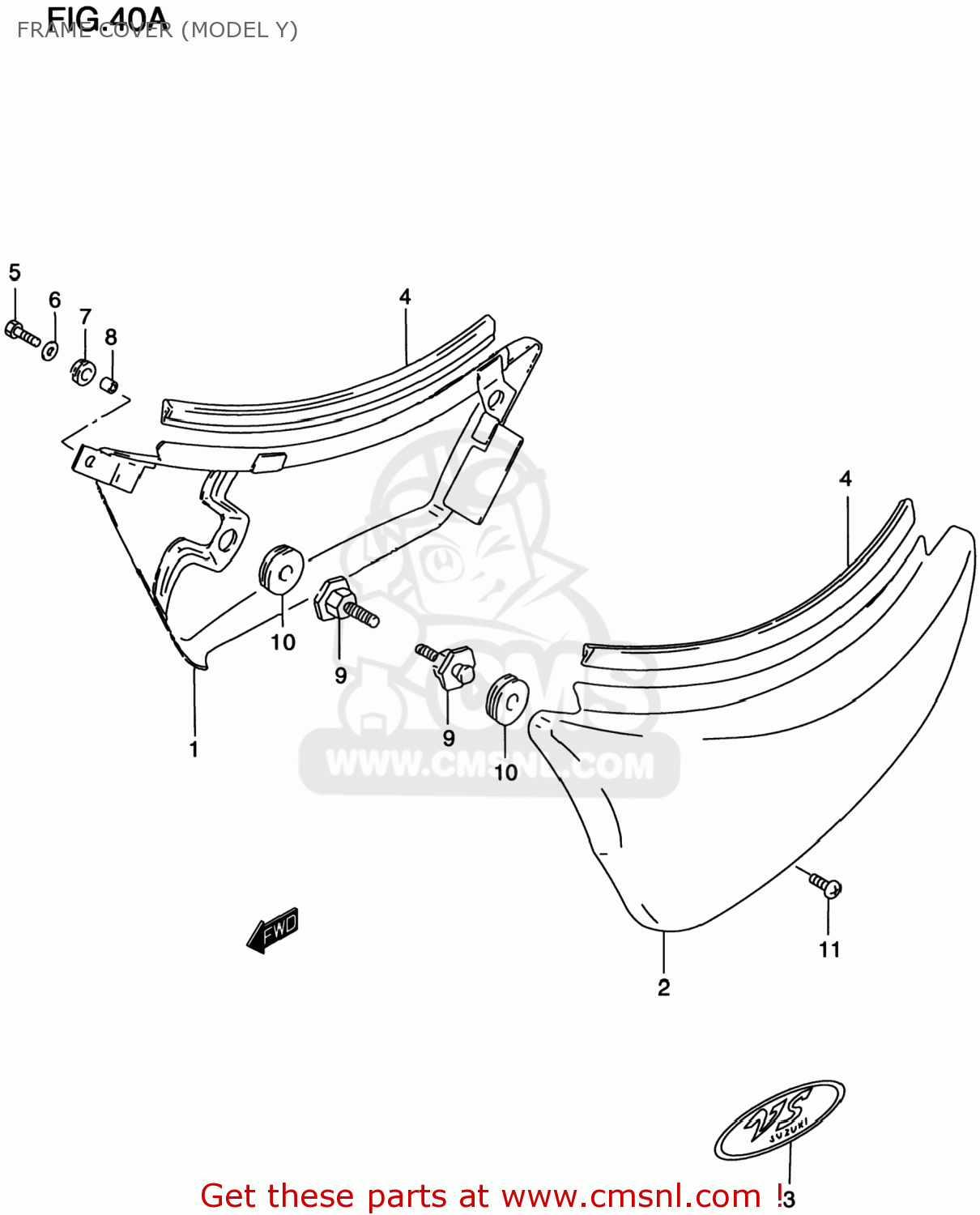

Frame cover (model y) diagram VS800GL INTRUDER 1999 (X) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4711038A0033J
ref: 1-1

COVER,FRAME,R(BLACK)

€ 245.00

1-2

4711038A0019A
ref: 1-2

COVER,FRAME,R(RED)

€ 112.50

2-1

4721038A0033J
ref: 2-1

COVER,FRAME,L(BLACK)

€ 481.50

2-2

4721038A0019A
ref: 2-2

COVER,FRAME,L(RED)

€ 259.00

6813138E20
ref: 3

EMBLEM,FRAME COVER

€ 31.00

6824104X50300
ref: 4

MOLDING

€ 6.00

0155006167
ref: 5

BOLT

€ 1.50

0916006084
ref: 6

WASHER(6.5X18X1.6)

€ 2.00

0932006017
ref: 7

CUSHION

€ 3.00

0918006246
ref: 8

SPACER(6.1X8X5.2)

€ 2.50

4725038A01
ref: 9

BOSS,FRAME COVER

€ 6.50

0932008013
ref: 10

CUSHION

€ 4.00

0214206103
ref: 11
02142-0610A

SCREW 6X10

€ 2.00
