CLUTCH MASTER CYLINDER

VS800GL INTRUDER 2004 (K4) USA (E03)

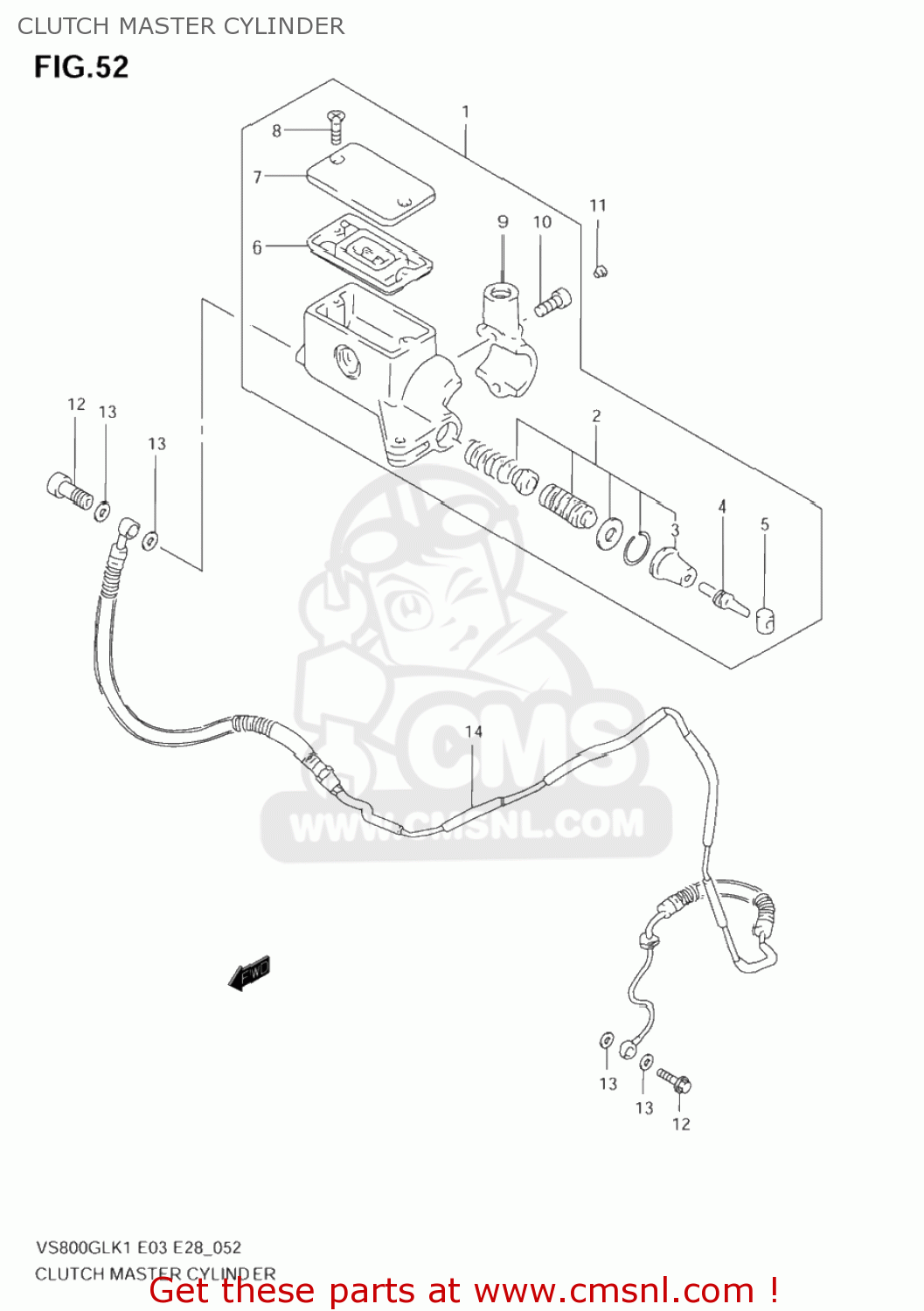

Clutch master cylinder diagram VS800GL INTRUDER 2004 (K4) USA (E03)

CLUTCH MASTER CYLINDER VS800GL INTRUDER 2004 (K4) USA (E03)
CLUTCH MASTER CYLINDER VS800GL INTRUDER 2004 (K4) USA (E03)
CLUTCH MASTER CYLINDER VS800GL INTRUDER 2004 (K4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
5980039A20
ref: 1-1
CYLINDER ASSEMBLY,CLUTCH MASTER
€ 421.00
1-2
5980039A40
ref: 1-2
CYLINDER ASSY, CLUTCH MASTER
€ 210.00
2
5980008810
ref: 2
PISTON & CUP SET
5980008810
€ 36.50
3
5966644300
ref: 3
BOOT
5966644300
€ 6.00
4
5987138A00
ref: 4
PUSH ROD
5987138A00
€ 6.50
5
5989208A00
ref: 5
BUSH
5989208A00
€ 5.50
6
5966749460
ref: 6
5966749460
7-1
5966924B00
ref: 7-1
CAP
5966924B00
€ 59.00
7-2
5966910F00
ref: 7-2
CAP
5966910F00
€ 59.50
8
0212204127
ref: 8
SCREW
0212204127
€ 2.00
9
5967138A00
ref: 9
HOLDER
5967138A00
€ 37.50
10
0713006207
ref: 10
BOLT
0713006207
€ 3.50
11
0925005008
ref: 11
CAP(OD:10)
0925005008
€ 5.00
12
0936010039
ref: 12
09360-10061
BOLT UNION
€ 6.50
13
0916110009
ref: 13
WASHER(10X15X1.5)
0916110009
€ 2.00
14-1
5990038A60
ref: 14-1
HOSE ASSY,CLUTCH
5990038A60
€ 312.50
14-2
5990038A70
ref: 14-2
59900-38A71
HOSE, CLUTCH
€ 201.50
