CYLINDER HEAD (REAR)

VS800GL INTRUDER 2004 (K4) USA (E03)

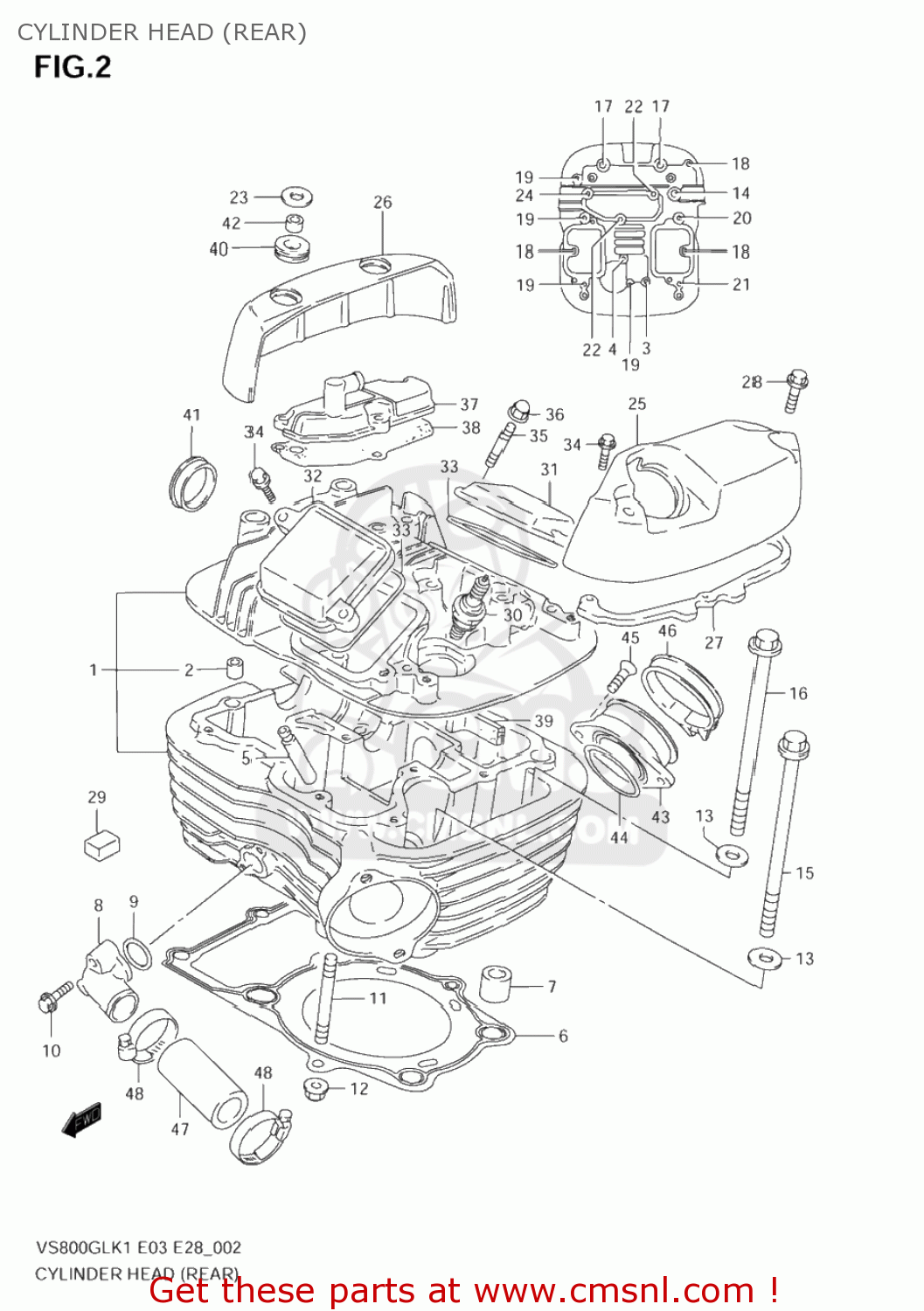

Cylinder head (rear) diagram VS800GL INTRUDER 2004 (K4) USA (E03)

CYLINDER HEAD (REAR) VS800GL INTRUDER 2004 (K4) USA (E03)
CYLINDER HEAD (REAR) VS800GL INTRUDER 2004 (K4) USA (E03)
CYLINDER HEAD (REAR) VS800GL INTRUDER 2004 (K4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
1110339A20
ref: 1-1
HEAD ASSY,CYLINDER RR
€ 834.50
1-2
1110339A50
ref: 1-2
HEAD ASSY,CYLINDER RR
€ 0.00
2
0920611004
ref: 2
PIN(8.4X11X14)
0920611004
€ 6.00
3
0910306101
ref: 3
BOLT(6X50)
0910306101
€ 2.00
4
0910306102
ref: 4
BOLT(6X55)
0910306102
€ 2.50
5
1111538A71
ref: 5
11115-41F70
GUIDE,VALVE
1111538A71
€ 18.50
6
1114245C00
ref: 6
GASKET,CYLINDER HEAD RR (NAS)
1114245C00
€ 54.00
7
0421113189
ref: 7
PIN
0421113189
€ 2.50
8
1116945C10
ref: 8
UNION,CYLINDER HEAD WATER
€ 28.50
9
0928018004
ref: 9
O RING(D:2.4,ID:17.8)
0928018004
€ 5.50
10
0154706253
ref: 10
01547-0625B
SCREW
0154706253
€ 2.50
11
0910808144
ref: 11
BOLT,STUD
0910808144
€ 4.50
12
0831610083
ref: 12
08316-1008B
NUT
0831610083
€ 3.00
13
0916010039
ref: 13
WASHER(10.5X22X2.3)
0916010039
€ 2.50
14
0910308040
ref: 14
BOLT(8X140)
0910308040
€ 4.00
15
0910310133
ref: 15
BOLT(10X155)
0910310133
€ 7.50
16
0910310134
ref: 16
BOLT(10X165)
0910310134
€ 7.50
17
0910308180
ref: 17
BOLT(8X245)
0910308180
€ 13.00
18
0155006253
ref: 18
01550-0625A
BOLT
0155006253
€ 2.50
19
0155006303
ref: 19
01550-0630A
BOLT
0155006303
€ 2.50
20
0712006303
ref: 20
07120-0630B
BOLT
0712006303
€ 3.00
21
0155006403
ref: 21
01550-0640A
BOLT
0155006403
€ 2.00
22
0910306102
ref: 22
BOLT(6X55)
0910306102
€ 2.50
23
0916008130
ref: 23
WASHER(8.5X24X1.6)
0916008130
€ 2.00
24
0155006203
ref: 24
01550-0620A
BOLT
0155006203
€ 2.50
25
1117338A03
ref: 25
CAP,CYLINDER HEAD COVER RR,L
1117338A03
€ 68.50
26
1117438A02
ref: 26
CAP,CYLINDER HEAD COVER RR,R
1117438A02
€ 75.00
27
1127338A01
ref: 27
CUSHION,RR,L CAP
1127338A01
€ 10.50
28
0124406357
ref: 28
BOLT
0124406357
€ 3.00
29
1115238A00
ref: 29
PAD
1115238A00
€ 3.50
30-1
0948200334
ref: 30-1
PLUG,SPARK(DPR8EA-9)
€ 4.00
30-2
0948200335
ref: 30-2
PLUG,SPARK(X24EPR-U9)
€ 4.00
30-3
0948200354
ref: 30-3
PLUG,SPARK(DPR7EA-9)
0948200354
€ 4.00
30-4
0948200355
ref: 30-4
09482-00354
SPARK PLUG X22E
€ 4.00
30-5
0948200330
ref: 30-5
PLUG,SPARK(DPR9EA-9)
0948200330
€ 4.00
30-6
0948200331
ref: 30-6
PLUG,SPARK(X27EPR-U9)
€ 4.00
31
1117538A11
ref: 31
CAP,INSPECTION INTAKE
1117538A11
€ 14.50
32
1117638A11
ref: 32
CAP,INSPECTION EXHAUST
1117638A11
€ 14.50
33
1117738A00
ref: 33
GASKET,INSPECTION CAP (NAS)
1117738A00
€ 5.00
34
0154706203
ref: 34
01547-0620B
SCREW
0154706203
€ 2.50
35
0910806102
ref: 35
BOLT,STUD
€ 3.00
36
0831320063
ref: 36
08313-2006A
NUT
0831320063
€ 2.00
37
1118638A02
ref: 37
COVER,BREATHER
1118638A02
€ 13.50
38
1118738A02H17
ref: 38
GASKET,BREATHER COVER (NAS)
1118738A02H17
€ 12.00
39
1117938A00
ref: 39
PLATE,HEAD COVER RR
1117938A00
€ 7.50
40
0932013015
ref: 40
CUSHION
0932013015
€ 3.00
41
0924130004
ref: 41
PLUG(OD:30)
0924130004
€ 6.50
42
0930108007
ref: 42
BUSH
0930108007
€ 4.00
43
1310245C00
ref: 43
PIPE ASSY,INTAKE RR
1310245C00
€ 40.50
44
0928040010
ref: 44
O RING(D:2.4,ID:39.7)
0928040010
€ 3.50
45
0155006163
ref: 45
01550-0616A
BOLT
0155006163
€ 2.50
46
0940252501
ref: 46
CLAMP
0940252501
€ 9.00
47
1785438A00
ref: 47
HOSE,CYLINDER HEAD JOINT
1785438A00
€ 8.50
48
0940228511
ref: 48
CLAMP
0940228511
€ 8.50
