FRONT MASTER CYLINDER

VS800GL INTRUDER 2004 (K4) USA (E03)

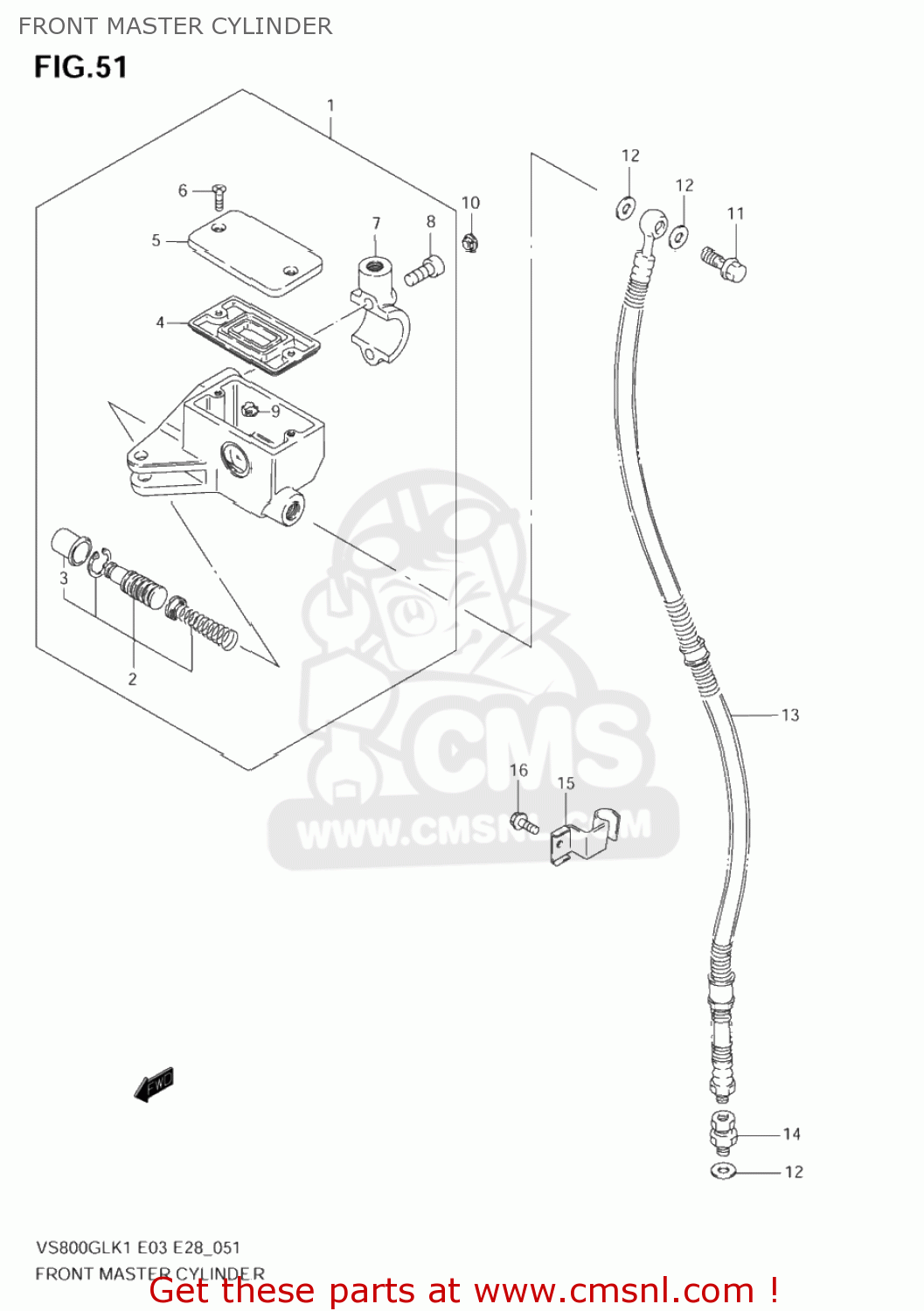

Front master cylinder diagram VS800GL INTRUDER 2004 (K4) USA (E03)

FRONT MASTER CYLINDER VS800GL INTRUDER 2004 (K4) USA (E03)
FRONT MASTER CYLINDER VS800GL INTRUDER 2004 (K4) USA (E03)
FRONT MASTER CYLINDER VS800GL INTRUDER 2004 (K4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
5960024B50
ref: 1-1
CYLINDER ASSY,FR MASTER
5960024B50
€ 391.50
1-2
5960038AA0
ref: 1-2
CYLINDER ASSY,FR MASTER
€ 0.00
2
5960004810
ref: 2
PISTON/CUP SET
5960004810
€ 37.50
3
5966644300
ref: 3
BOOT
5966644300
€ 6.00
4
5966749460
ref: 4
5966749460
5-1
5966924B00
ref: 5-1
CAP
5966924B00
€ 59.00
5-2
5966910F00
ref: 5-2
CAP
5966910F00
€ 59.50
6
0212204127
ref: 6
SCREW
0212204127
€ 2.00
7
5967138A00
ref: 7
HOLDER
5967138A00
€ 37.50
8
0713006207
ref: 8
BOLT
0713006207
€ 3.50
9
5966448B00
ref: 9
PROTECTOR
5966448B00
€ 8.00
10
0925005008
ref: 10
CAP(OD:10)
0925005008
€ 5.00
11
0936010039
ref: 11
09360-10061
BOLT UNION
€ 6.50
12
0916110009
ref: 12
WASHER(10X15X1.5)
0916110009
€ 2.00
13-1
5948038A63
ref: 13-1
HOSE,FR BRAKE
5948038A63
€ 221.00
13-2
5948038A70
ref: 13-2
HOSE,FR BRAKE
5948038A70
€ 102.00
14
5929043500
ref: 14
ADAPTER,BRAKE HOSE
5929043500
€ 34.50
15
5926838A30
ref: 15
GUIDE,BRAKE HOSE
€ 10.50
16
0154706107
ref: 16
BOLT
0154706107
€ 1.50
