CYLINDER HEAD (FRONT)

VS800GL INTRUDER 2004 (K4) USA (E03)

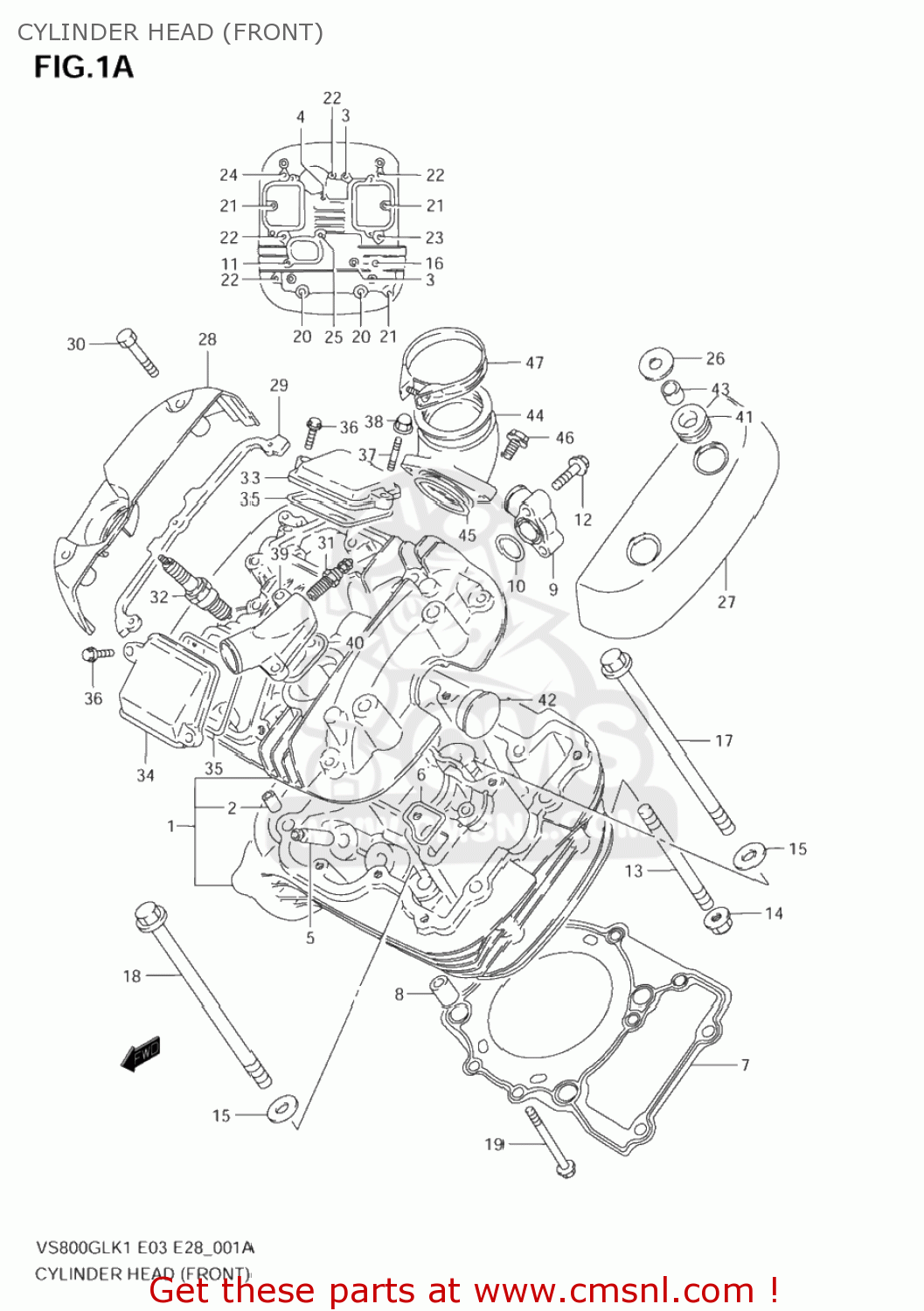

Cylinder head (front) diagram VS800GL INTRUDER 2004 (K4) USA (E03)

CYLINDER HEAD (FRONT) VS800GL INTRUDER 2004 (K4) USA (E03)
CYLINDER HEAD (FRONT) VS800GL INTRUDER 2004 (K4) USA (E03)
CYLINDER HEAD (FRONT) VS800GL INTRUDER 2004 (K4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
1110139A20
ref: 1-1
HEAD ASSY,CYLINDER FR
€ 834.50
1-2
1110139A50
ref: 1-2
HEAD ASSY,CYLINDER FR
€ 0.00
2
0920611004
ref: 2
PIN(8.4X11X14)
0920611004
€ 6.00
3
0910306101
ref: 3
BOLT(6X50)
0910306101
€ 2.00
4
0910306102
ref: 4
BOLT(6X55)
0910306102
€ 2.50
5
1111538A71
ref: 5
11115-41F70
GUIDE,VALVE
1111538A71
€ 18.50
6
1112338A00
ref: 6
GASKET,CYLINDER HEAD WATER (NAS)
1112338A00
€ 2.50
7
1114145C00
ref: 7
GASKET,CYLINDER HEAD FR (NAS)
1114145C00
€ 51.50
8
0421113189
ref: 8
PIN
0421113189
€ 2.50
9
1116945C10
ref: 9
UNION,CYLINDER HEAD WATER
€ 28.50
10
0928018004
ref: 10
O RING(D:2.4,ID:17.8)
0928018004
€ 5.50
11
0155006203
ref: 11
01550-0620A
BOLT
0155006203
€ 2.50
12
0154706253
ref: 12
01547-0625B
SCREW
0154706253
€ 2.50
13
0910808144
ref: 13
BOLT,STUD
0910808144
€ 4.50
14
0831610083
ref: 14
08316-1008B
NUT
0831610083
€ 3.00
15
0916010039
ref: 15
WASHER(10.5X22X2.3)
0916010039
€ 2.50
16
0910308040
ref: 16
BOLT(8X140)
0910308040
€ 4.00
17
0910310133
ref: 17
BOLT(10X155)
0910310133
€ 7.50
18
0910310134
ref: 18
BOLT(10X165)
0910310134
€ 7.50
19
0155006403
ref: 19
01550-0640A
BOLT
0155006403
€ 2.00
20
0910308180
ref: 20
BOLT(8X245)
0910308180
€ 13.00
21
0155006253
ref: 21
01550-0625A
BOLT
0155006253
€ 2.50
22
0155006303
ref: 22
01550-0630A
BOLT
0155006303
€ 2.50
23
0712006303
ref: 23
07120-0630B
BOLT
0712006303
€ 3.00
24
0155006403
ref: 24
01550-0640A
BOLT
0155006403
€ 2.00
25
0910306102
ref: 25
BOLT(6X55)
0910306102
€ 2.50
26
0916008130
ref: 26
WASHER(8.5X24X1.6)
0916008130
€ 2.00
27
1117138A02
ref: 27
CAP,CYLINDER HEAD COVER FR,L
1117138A02
€ 72.50
28
1117238A03
ref: 28
CAP,CYLINDER HEAD COVER FR,R
1117238A03
€ 98.50
29
1127238A00
ref: 29
CUSHION,FR,R CAP
1127238A00
€ 10.50
30
0124406407
ref: 30
BOLT
0124406407
€ 3.00
31
3485021E00
ref: 31
GAUGE ASSY,WATER TEMP
3485021E00
€ 80.00
32-1
0948200334
ref: 32-1
PLUG,SPARK(DPR8EA-9)
€ 4.00
32-2
0948200335
ref: 32-2
PLUG,SPARK(X24EPR-U9)
€ 4.00
32-3
0948200354
ref: 32-3
PLUG,SPARK(DPR7EA-9)
0948200354
€ 4.00
32-4
0948200355
ref: 32-4
09482-00354
SPARK PLUG X22E
€ 4.00
32-5
0948200330
ref: 32-5
PLUG,SPARK(DPR9EA-9)
0948200330
€ 4.00
32-6
0948200331
ref: 32-6
PLUG,SPARK(X27EPR-U9)
€ 4.00
33
1117538A11
ref: 33
CAP,INSPECTION INTAKE
1117538A11
€ 14.50
34
1117638A11
ref: 34
CAP,INSPECTION EXHAUST
1117638A11
€ 14.50
35
1117738A00
ref: 35
GASKET,INSPECTION CAP (NAS)
1117738A00
€ 5.00
36
0154706203
ref: 36
01547-0620B
SCREW
0154706203
€ 2.50
37
0910806102
ref: 37
BOLT,STUD
€ 3.00
38
0831320063
ref: 38
08313-2006A
NUT
0831320063
€ 2.00
39
1118138A02
ref: 39
UNION,WATER OUTLET
1118138A02
€ 34.50
40
1118238A00
ref: 40
GASKET,WATER OUTLET UNION (NAS)
1118238A00
€ 2.00
41
0932013015
ref: 41
CUSHION
0932013015
€ 3.00
42
0924130004
ref: 42
PLUG(OD:30)
0924130004
€ 6.50
43
0930108007
ref: 43
BUSH
0930108007
€ 4.00
44
1310138E00
ref: 44
PIPE ASSY,INTAKE FR
1310138E00
€ 89.00
45
0928040010
ref: 45
O RING(D:2.4,ID:39.7)
0928040010
€ 3.50
46
0212206203
ref: 46
02122-0620A
SCREW
0212206203
€ 2.00
47
0940252501
ref: 47
CLAMP
0940252501
€ 9.00
